Creative Solutions for the Digital Life
™

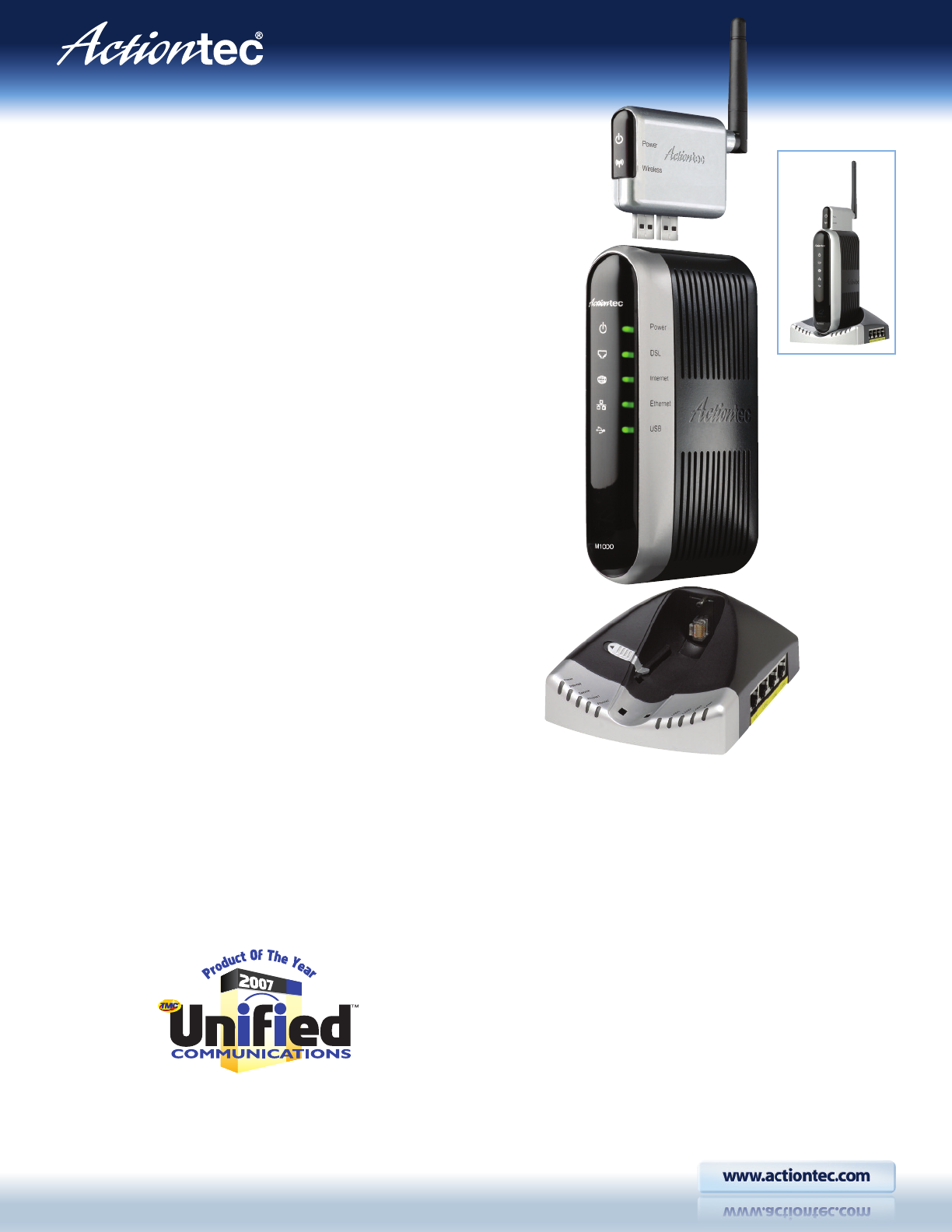

Modular
DSL Router
A
ctiontec’s Modular DSL Router is the industry’s first
modular DSL residential modem/router, designed to
equip broadband service providers with a single-SKU
solution and potential revenue stream for consumer premises
equipment. It enables telcos to supply all customers with the
same low-cost base unit and then add user-requested upgrades
such as wireless networking with snap-in expansion modules.
Modular for Easy Feature/Technology Upgrades
The base unit is a one-port Ethernet/USB ADSL2+ modem.
An expansion port is included on top of the unit for attaching
the wireless expansion module.All other add-on modules snap
directly into the base unit with no cables, adapters, CDs or
configuration required by the end user,makingupgradesasimple
plug-and-play process that can be handled by the consumer.
Modular add-ons include a Wireless Expansion Module,
4-port Ethernet switch for wired networking, a HomePlug AV
adapter for powerline networking, and a VoIP adapter.
Features
•
Integrated Wired Networking using 1 Port USB and 1 Port
10/100 Mbps Ethernet
•
Full-rate ADSL 2/2+ modem - supports data rates of up to
24 Mbps downstream and up to 1 Mbps upstream*
•
Exceeds performance of the DSL Forum specification
•
Loop reach of up to 18,000 feet using ADSL and 18,600 feet
using ADSL 2
•
Tested and compatible with all major DSLAMs
•
Advanced security: Firewall, Stateful Packet Inspection,NAT,
website blocking, web service blocking, Internet traffic
logging, Denial of Service (DOS) protection
* Depends on the services offered by the Internet Service Provider.
•
Other features include:
Advanced Modem Diagnostics
DHCP Server Option
Compliant with DSL Forum TR048
Rate and Reach Requirements
Customizable Firewall
DMZ Hosting
DNS Server, Relay
Dynamic Rate Adaptation
Independent upstream and
downstream data rate
provisioning
LAN IP Address Selection
Multiple PVC supported
NAT Services Blocking
Port Forwarding
Real-time diagnostics
Remote Management
Services Blocking
Static Routing
Unnumbered Mode Support
User Friendly GUI
VPN Pass Through
WAN IP & LAN IP Address
Selection
Website Blocking
Model #W1000
Model #s
M1000/M2000
Model #V2000
Assembled
