120 Agilent E6474A User’s Guide
6 Get Assistance, if You Need It
Updating E645xx Receiver Firmware
1 In the System Setup view, configure a receiver measurement
view. Once data logging starts, the E6474A software
determines if the Agilent E645xx digital receiver has the
correct firmware. If not, the message box in Figure 2 appears.
2 Click Yes. The message box in Figure 56 appears.
NOTE
If your hardware configuration includes daisy-chained E645xx receivers,
you must first disconnect the receivers, then connect one receiver at a
time, and upgrade the firmware on each receiver. When you are finished
updating the firmware, reconnect the daisy-chain, and reconfigure the
daisy-chained receivers.

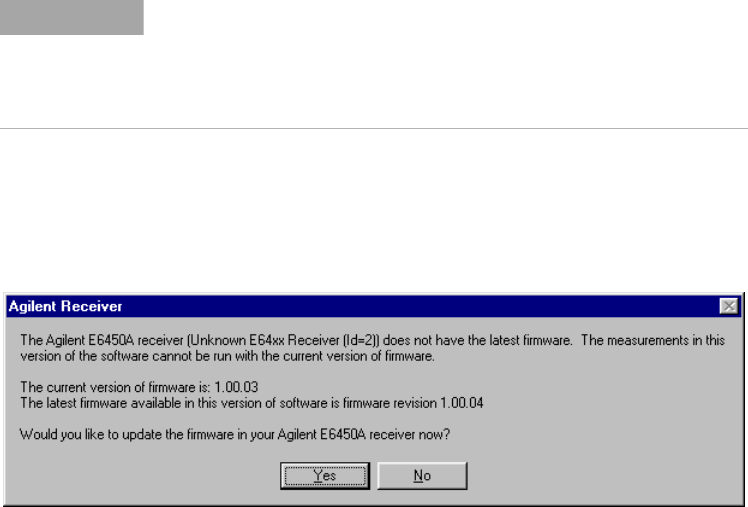

Figure 55 Firmware upgrade required, first dialog box
