3 Set Up Your System
Cable connections to the E6473B hub
1 Connect the receiver data/power cable (E6473-60106) to the
port on the rear panel.
2 Connect the second receiver power cable (E6473-60107) to
the
AUX PWR OUT connector.
3 If programmed, insert the software license key into the
(USB Downstream) port on the front panel. Otherwise, plug
the DB25 key into the parallel port of the computer.
4 Connect the USB cable (E6473-60005) to the (USB
Upstream) port on the front panel.
Cable connections to the receiver
1 Connect the D-shell connector end of the receiver
data/power cable (E6473-60106) to the RS-232 port of
Receiver 1.
2 Connect the power plug of the receiver data/power cable to
the 9-34 VDC connector of Receiver 1.
3 Connect the power plug of the second receiver power cable
(E6473-60107) to the 9-34 VDC connector of Receiver 2.

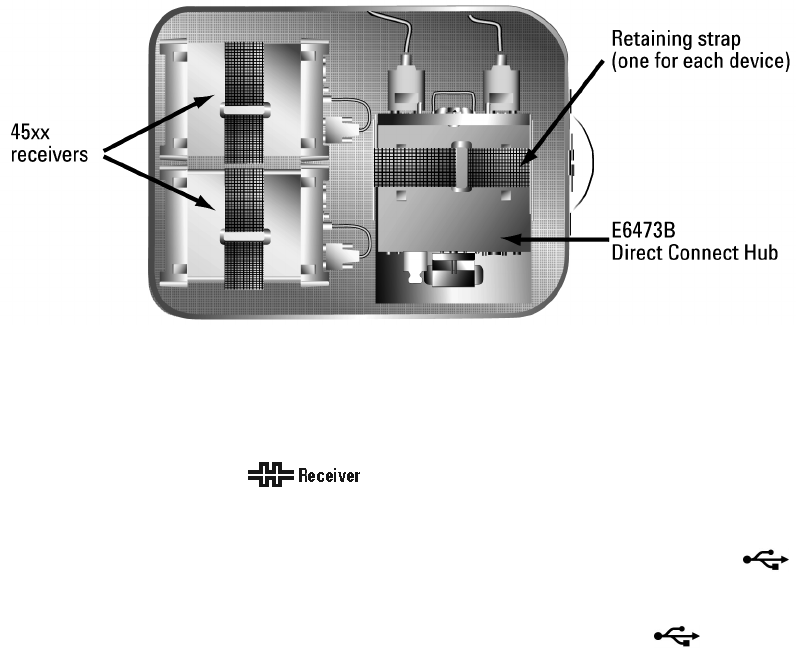

Figure 34 Two receivers and Direct Connect Hub mounted to the platform
