SPECIFICATIONS

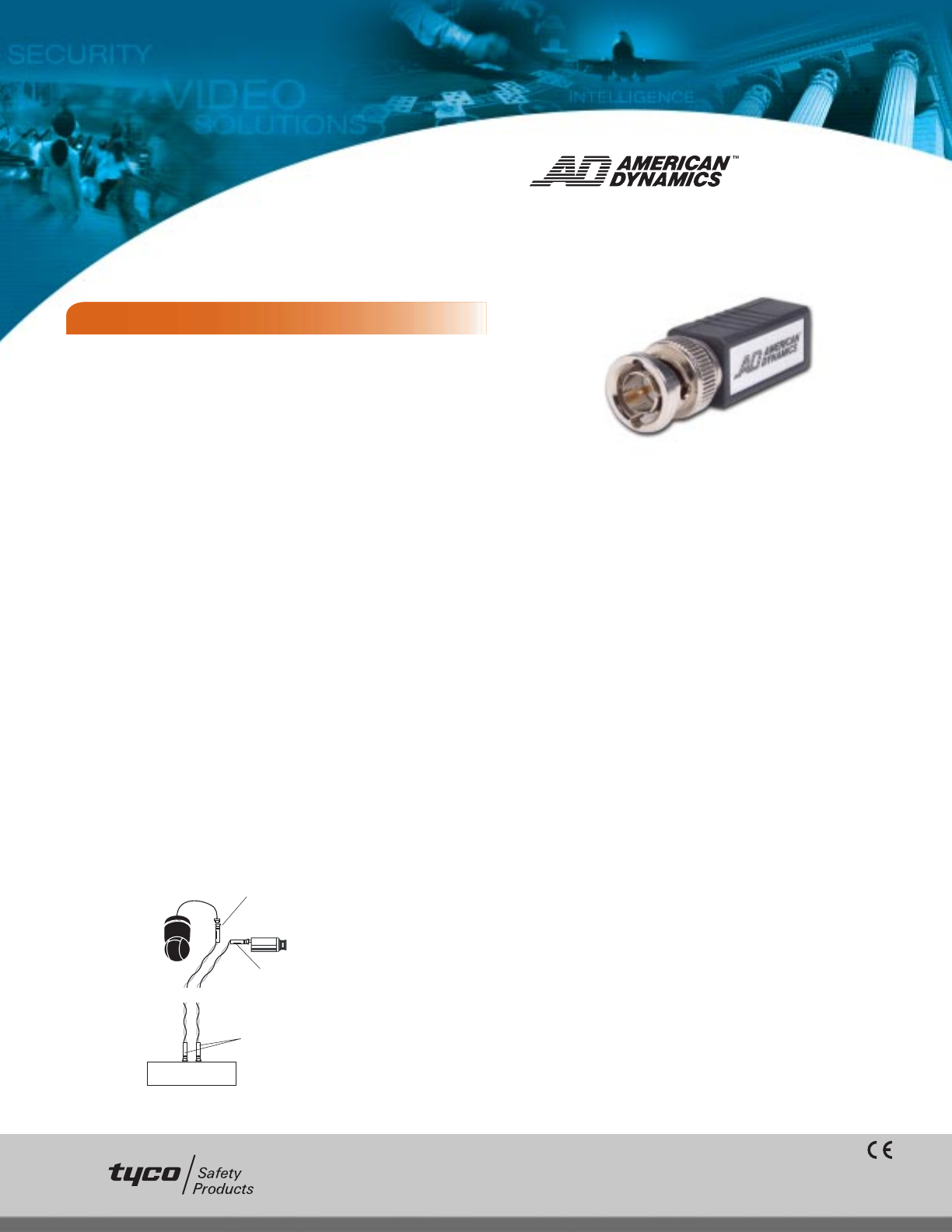

AD Twisted Pair Adapter
UNSHIELDED TWISTED PAIR VIDEO ADAPTER
www.americandynamics.net
Only side – Single sheet – Letter size – print 4/c
Features
•
Compact, compatible with existing CCTV
equipment
•
No external power required
•
50 dB cross-talk and noise immunity
•
Compatible with NTSC or PAL formats
•
Compatible with Up-The-Coax (UTC) control
signals
•
Compatible with any video device with
composite video output
•
Get up to four video signals on one Cat5 cable
Model Number
ADACTP01BNC . . . . . . . . . . . .Cable accessory, twisted pair to BNC adapter
Operational
Video Format . . . . . . . . . . . . . .NTSC or PAL
Frequency . . . . . . . . . . . . . . . . . .DC to 10 MHz
Coax . . . . . . . . . . . . . . . . . . . . . . .75 Ohm
Twisted Pair . . . . . . . . . . . . . . .100 Ohms ± 20%, 24 AWG min.
Up to 300m (1000 ft)
‡
Unshielded Category 2-6
Insertion Loss . . . . . . . . . . . . . .0.3 dB
CMRR . . . . . . . . . . . . . . . . . . . . .50 dB
Power . . . . . . . . . . . . . . . . . . . . . .No power required
Connectors
Video . . . . . . . . . . . . . . . . . . . . . .BNC
UTP . . . . . . . . . . . . . . . . . . . . . . .Euro-style terminal block
Environmental
Operating Temperature . . . . .-10° to 70°C (14° to 158° F)
Storage Temperature: . . . . . . .-30° to 70°C (-22° to 158° F)
Relative Humidity: . . . . . . . . . .0 to 95% RH, non-condensing
Mechanical
Dimensions . . . . . . . . . . . . . . . .47 x 13.6 mm
(1.85 x 0.54 in)
Weight . . . . . . . . . . . . . . . . . . . . .17g (0.7 oz)
Material . . . . . . . . . . . . . . . . . . . .Black ABS Plastic
Mounting . . . . . . . . . . . . . . . . . .Direct connection via BNC (Male)
Regulatory
Safety . . . . . . . . . . . . . . . . . . . . . .UL 94V-0
American Dynamics
Dome or Fixed Camera
Twisted Pair Adapter
(Dome End)
Twisted Pair Adapter
(Fixed Camera End)
Twisted Pair Adapter
(Switcher/Controller End)
Video Switcher/
Controller
CAT 2-6 UTP Cable
VS320-01 10/03 L
©2003 Sensormatic Electronics Corporation
Product specifications and availability subject to change without notice.
Certain product names mentioned herein may be trade names and/or
registered trademarks of other companies.
System Diagram
The American Dynamics ADACTP01BNC Twisted
Pair Video Adapter is a passive transmission device
that transmits video or video with up-the-coax
(UTC) dome control signals over unshielded
twisted pair (UTP) cables, point-to-point, for
distances up to 300m (1000 ft).
These adapters use Category 2-6 twisted pair wires
to transmit the video and dome control signals,
and do not require power. The compact design
allows for mounting directly to the video source or
receiver without additional cabling.
‡
Some digital video recorders, video servers or similar products may
lose color information when UTP cable distances exceed 180 m (600 ft).
