D A T A S H E E T
ADCMLCD15 ADCMLCD17 ADCMLCD19
General
Resolution 1024 x 768 (max) @ 75 Hz 1280 x 1024 (max) @ 75 Hz 1280 x 1024 (max) @ 75 Hz
Viewing Angle (H x V) ± 120° (H) x ± 100° (V) ± 160° (H) x ± 140° (V) ± 170° (H) x ± 170° (V)
Response Time 4/12 ms 8 ms 8 ms
Brightness 250 cd/m² 300 cd/m² 250 cd/m²
Contrast Ratio 400:1 500:1 600:1
Electrical
Consumption 30W 40W 45W operating
Mechanical
Dimensions (H x W x D)
360 x 150 x 350 mm
(14.17 x 5.90 x 13.78 in)
393 x 150 x 390 mm
(15.47 x 5.90 x 15.35 in)
430 x 150 x 420 mm
(16.92 x 5.90 x 16.53 in)
Unit Weight 3.5 kg ( 7.71 lb) 5.0 kg (11.02 lb) 6.0 kg (13.22 lb)
Shipping Information
Dimensions (H x W x D)
418 x 165 x 395 mm
(16.45 x 6.49 x 15.55 in)
455 x 165 x 440 mm
(17.91 x 6.49 x 17.32 in)
490 x 165 x 465 mm
(19.29 x 6.49 x 18.30 in)
Unit Weight 5.0 kg (11.02 lb) 7.0 kg (15.43 lb) 8.0 kg (17.63 lb)
Common Specifications
General
Regulatory
Display Color 16.7 million (max) Emissions FCC Class B, CE
Audio
Immunity CE
Line Input Connection (1) 3.5 mm stereo jack Safety UL
Electrical Model Numbers
Power Input Voltage AC 100 ~ 240 V 60/50 Hz, 1.5 A; 12 VDC, 4.2 A ADCMLCD15
15-inch LCD Flat Panel Monitor with Analog
VGA (D-Sub Input)
Environmental ADCMLCD17
17-inch LCD Flat Panel Monitor with Analog
VGA (D-Sub Input)
Operating Temperature 5º to 40ºC (41º to 104ºF) ADCMLCD19
19-inch LCD Flat Panel Monitor with Analog
VGA (D-Sub Input)
Storage Conditions -20º to 55ºC (-4º to 67ºF) Accessories
Inputs/Outputs RHSP730PL Wall mount kit
1 Analog D-Sub, 15 pin ADMNMTLCDWAL Wall mount kit with adjustable arms
Audio Input 3.5 mm stereo jack ADMMTLCDPL Pole mount kit

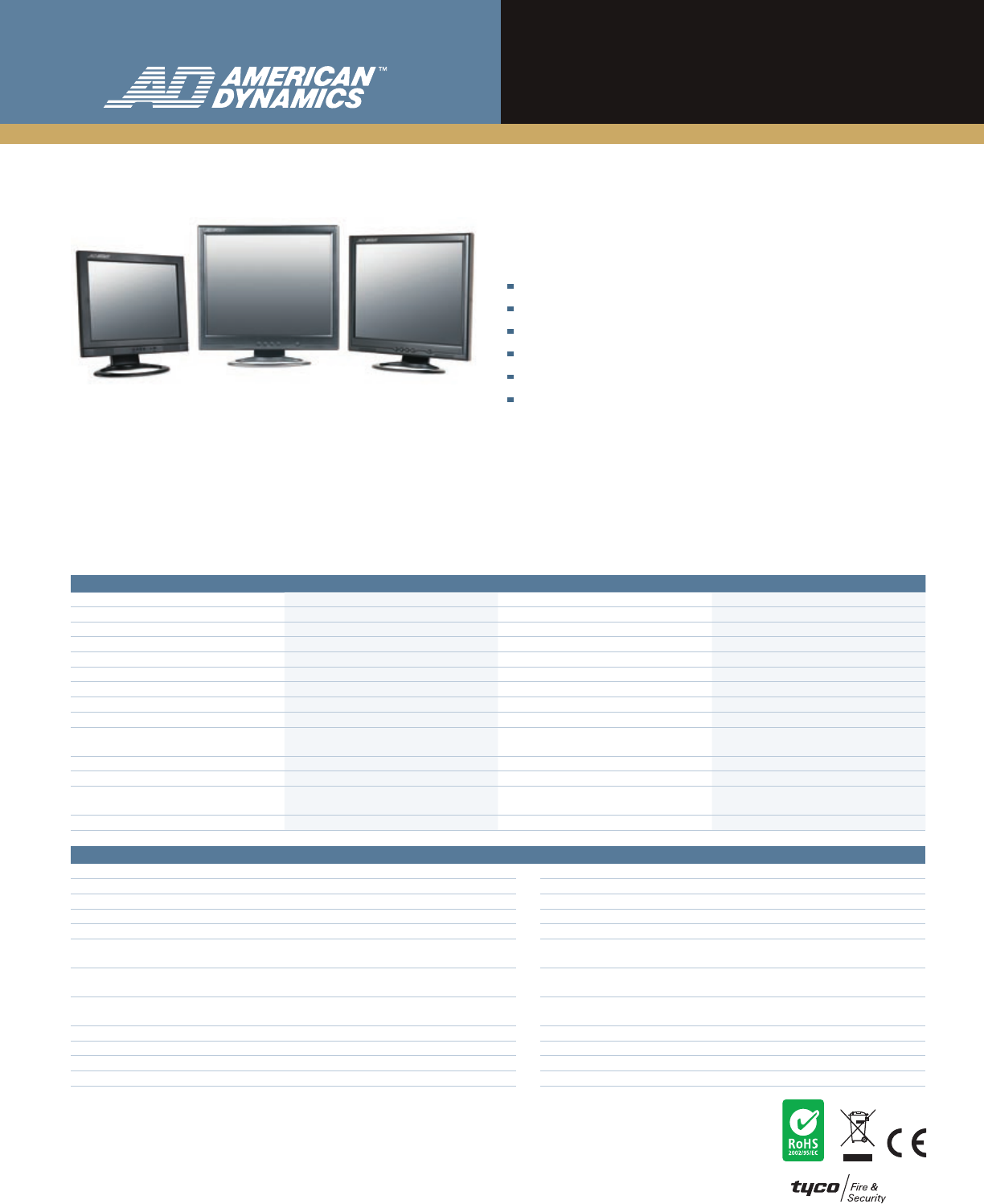

15, 17 and 19" Analog
LCD Flat Panel Monitors
Features That Make a Difference:
Fast response times
Supports up to 1280 x 1024 resolution
Maximum brightness
Detachable desktop base
75 mm VESA mounting anti-glare screens
RoHS-compliant
American Dynamics
TM
offers 15, 17 and 19-inch flat panel monitors
that provide high-resolution display of analog computer signals
and stereo audio (19-inch model only). With bright, active matrix
displays offering up to 1280 x 1024 resolution, these monitors provide
high-quality images that automatically adapt to the appropriate
input resolution.
Using 100/240 VAC, each monitor includes an external power
supply and a detachable base. In addition, each monitor includes
VESA-compliant mounting holes on the accompanying desktop
stands that are easily adapted to the available wall or pole mounts.
American Dynamics analog LCD flat panel monitors offer superior
image quality and complement Intellex
®
digital video management
systems.
