Chapter 1: Product introduction

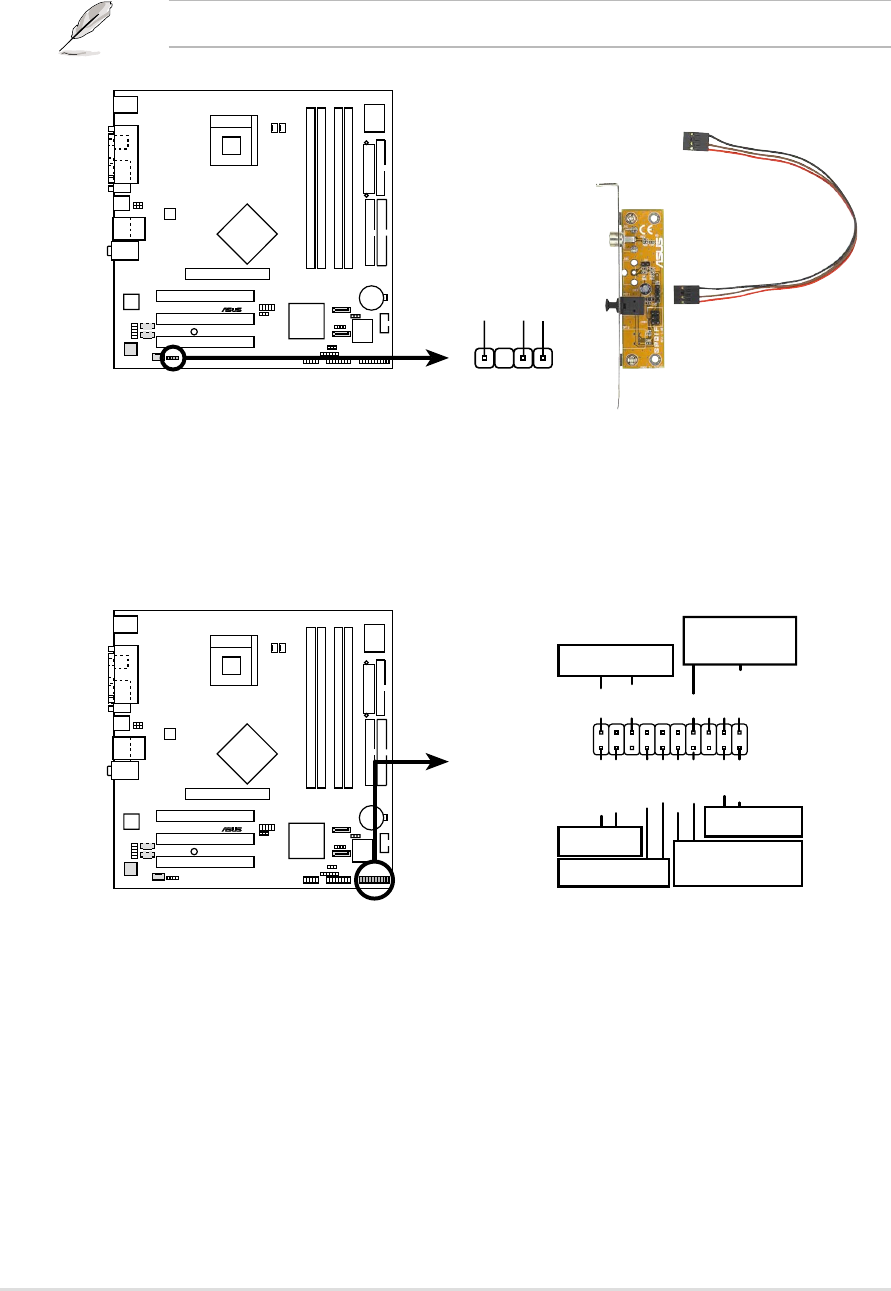

14. Digital audio connector (4-1 pin SPDIF1)
This connector is for a S/PDIF audio module that allows digital instead of
analog sound output. Connect one end of the audio cable to the S/PDIF Out
connector on the motherboard, and the other end to the S/PDIF module.
The S/PDIF module is purchased separately.
P4P800-VM
®
P4P800-VM Digital Audio Connector
+5V
SPDIFOUT
GND
SPDIF1
15. System panel connector (20-pin PANEL1)
This connector accommodates several system front panel functions.
P4P800-VM
®
P4P800-VM System Panel Connectors
* Requires an ATX power supply.
PLED
Ground
PWRBIN
+5 V
+5V
Speaker
Speaker
Connector
Power LED
Ground
Reset SW
SMI Lead
ExtSMI#
Ground
Reset
Ground
Ground
ATX Power
Switch*
HD_LED-
HD_LED+
IDELED
System Power LED Lead (3-1 pin PLED)
This 3-1 pin connector connects to the system power LED. The LED lights up
when you turn on the system power, and blinks when the system is in sleep
mode.
Hard disk activity LED (2-pin IDELED)
This 2-pin connector supplies power to the hard disk activity LED. The read
and write activities of any device connected to the primary or secondary IDE
connector cause this LED to light up.
