February 2010
MT1000A-85-R4
BL A C K B O X
®
Get convenient in-line surge protection for access
points on your wireless Ethernet network.
Put avalanche diode and thyristor protection
where you need it.

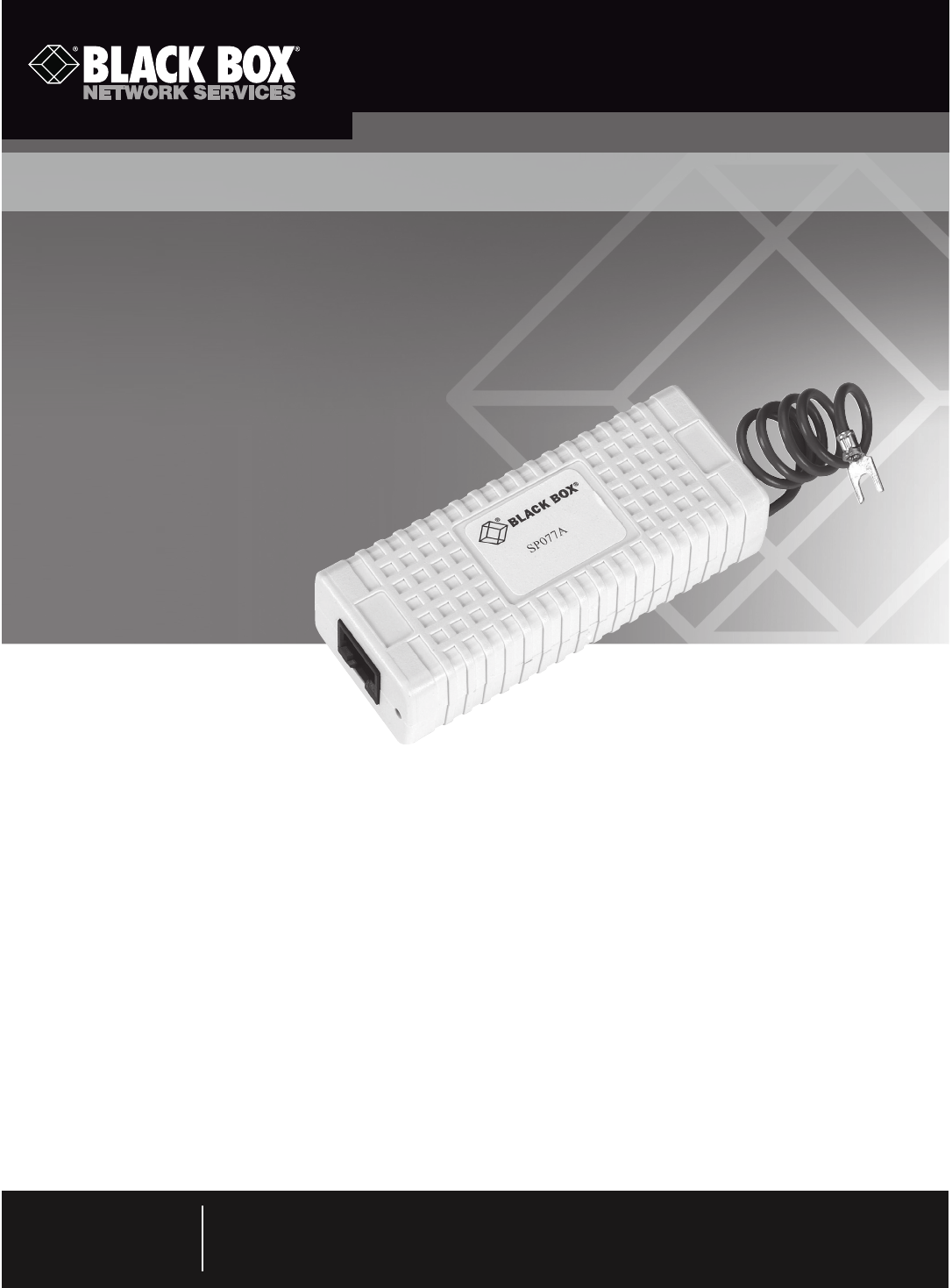

In-Line Surge Protector, PoE, Mode B (RJ-45 8-Wire)
SP077A
For installation instructions, turn this page over…
Overview
This in-line surge protector protects data lines against both
line-to-line and ground-to-line surges. It also protects wireless
access points that are typically installed in remote locations,
which is important because the remote access points may
expose devices to severe transients and surges.
What’s included
• In-Line Surge Protector
• 6" RJ-45 patch cable
• This specification sheet
Specifications
Application: PoE (Mode B)
Ground Wire: Yes
Maximum Shunt Capacitance: <25 pF (Ethernet lines only)
Peak Pulse Current: Pins 1, 2, 3, and 6: 132 amps;
Pins 4, 5, 7, and 8: 103 amps
Pins Protected: All
Protection Type: Avalanche diode and thyristor technology
Response Time: <5 ns
Standard Clamping Voltage: Pins 1, 2, 3, and 6: 7.5 volts;
Pins 4, 5, 7, and 8: 30 volts
Connectors: (2) RJ-45 F
