PremierView10ID
Calibre specialises in high performance LCD
display solutions for industrial, OEM, military
and aerospace applications. PremierView
monitors feature flexible signal capability,
excellent motion reproduction and accurate,
artifact free image re-sizing.

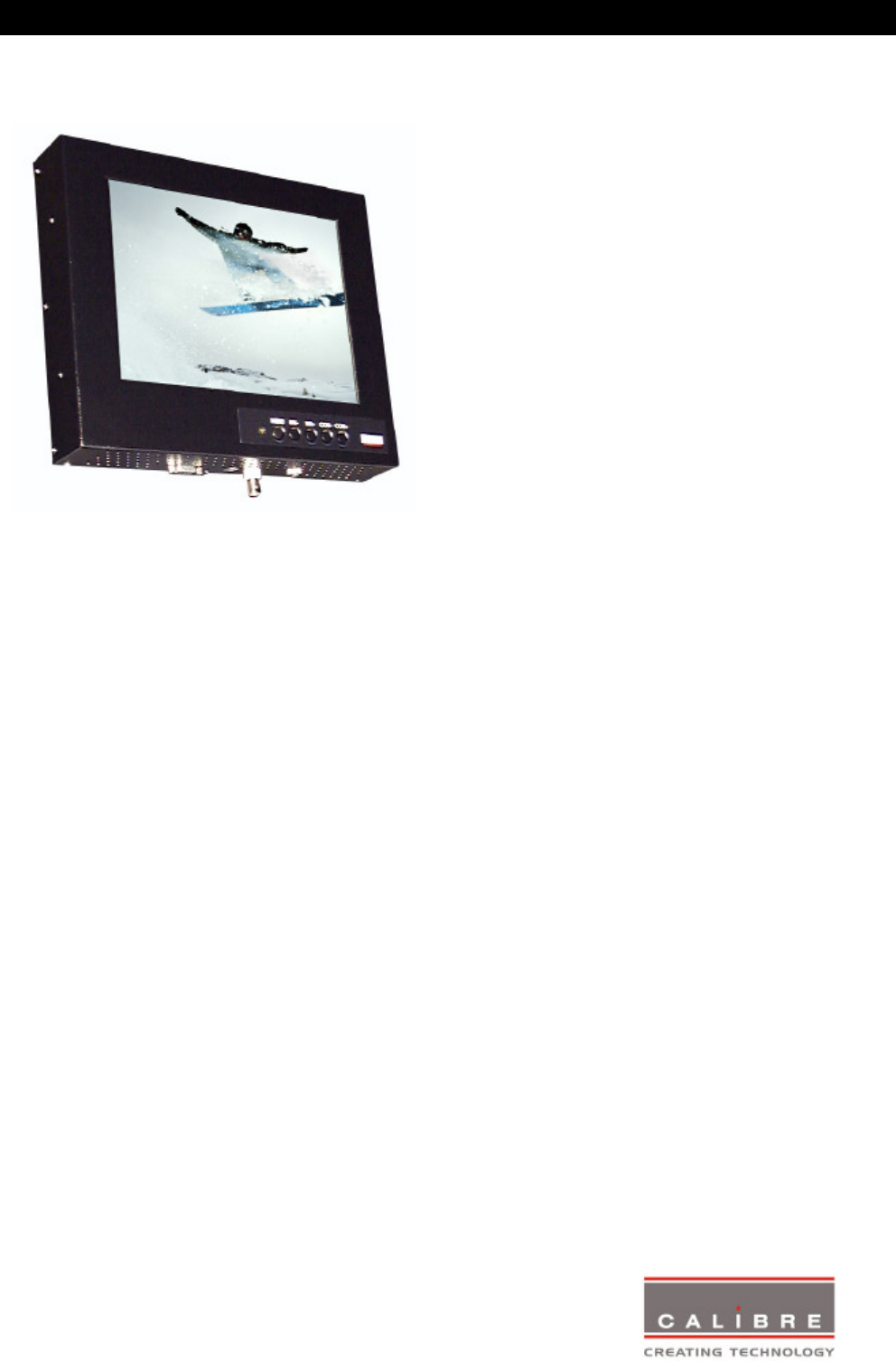

Calibre's PremierView10ID is a very high
performance TFT-LCD display. Based
around Calibre's proprietary PremierView4
LCD driver technology, it is able to connect
directly to a very wide range of video or
computer image sources and display images
full screen on its 10.4" viewable diagonal,
wide viewing angle screen.
PremierView4 is one of the most flexible LCD systems on the market able to accept a wide range of
input resolutions. PremierView4 features true autoscanning real-time software algorithms to allow it to
be adjusted to suit most non-standard resolutions and signal timings within its resolution, line and field
rate ranges. Specific compatibility with non-standard signal timings and custom resolutions can also be
provided as a customer specific option.
PremierView10ID is available with two TFT LCD panel resolutions, 800x600 or 1024x768 for display of
real-time Video or computer images full screen, full-motion in real time, with no frame rate conversion.
Through the standard VGA connector, composite sync and sync on green from high resolution sources
such as workstations are also supported. A DVI digital graphics input is available as an optional extra.
A professional grade video decoder is available as an option which gives outstanding composite and YC
video performance through the use of a 4-line comb filter and vertical noise reduction algorithm. This
option also adds a selectable RGB/YUV component video input. SDI serial digital video with PAL or
NTSC timings is also available as an additional option. A lower cost standard grade video decoder is
also available for less demanding applications.
High performance scaling algorithms work without compromising image quality or resolution irrespective
of the signal resolution implemented. It is compatible with Composite and Y/C (SVHS, S-video) inputs
with automatic detection of PAL, NTSC & SECAM video, and/or most computer RGB signals from
640x350 up to 1024x768 (model with 800x600 panel) or 1280x1024 (model with 1024x768 panel). Very
flexible wide-ranging picture controls are provided via an on-screen menu. These controls include
picture size/position controls as well as contrast, brightness, and colour/hue for video.
PremierView10ID panel options are either a 1024x768 or an 800x600 10.4" NEC panel. Both feature
wide viewing angles and bright images. All image scaling is performed at 24-bit per RGB pixel data
width, it is then converted to 18-bits using an adaptive high-performance conversion algorithm. This
ensures maximum colour depth and accurate grey-scale reproduction, with no field merging, no field
dropping or repetition and no pixel or line dropping to ensure accurate motion reproduction and clean
image scaling.
PremierView10ID comes as a metal cased display unit or an OEM open chassis module. The metal
cased display unit incorporates side mounting points and VESA-compatible rear mountings. Cased
units include an anti-scratch, anti-glare front viewing window. Touchscreens are also available to
special order. Optional accessories include a desk stand, wall mounts and telescopic arm mount.
10.4" Multimedia LCD Monitor for Industrial, OEM and Desktop Use
