Disassembly
Removing the Speakers 2 - 25
2.Disassembly
Removing the Speakers
1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page
2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -
18), keyboard shielding plate (page 2 - 19) and the top case and LCD (page 2 - 20).
2. Disconnect cables & (Figure 18a) from the speakers to the mainboard.
3. Remove the speakers (Figure 18b).
!
3. Speakers

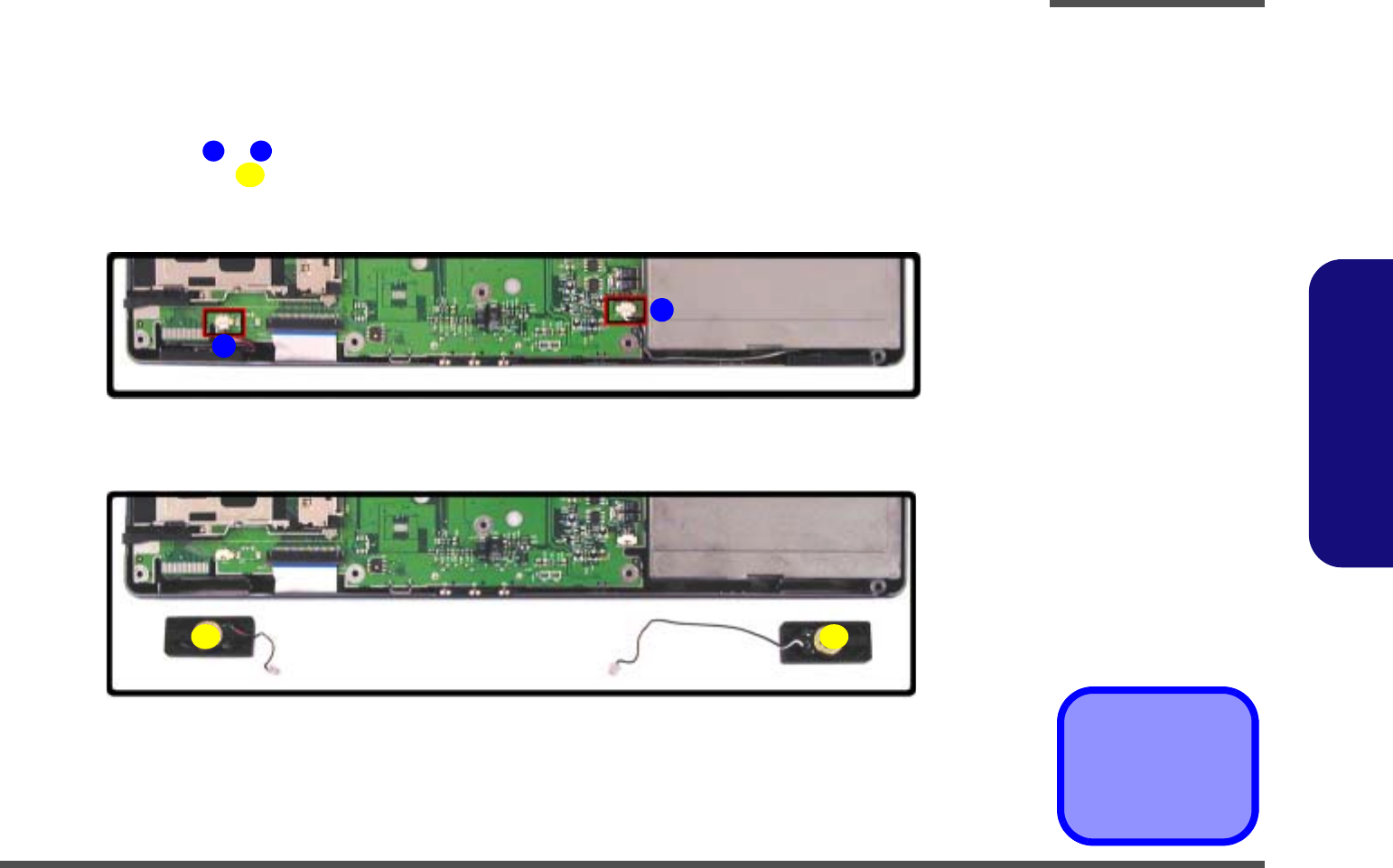

Figure 18
Speakers Removal
a. Disconnect the cables.
b. Remove the speakers.
