QUICK SETUP GUIDE
DX-VS201A
S-Video Audio/Video Selector Switch
ENGLISH 11-0308
VIDEO
AUDIO
S-VIDEO
OUTPUT 2
L
R
VIDEO
AUDIO
S-VIDEO
OUTPUT 1
L
R
VIDEO
AUDIO
INPUT 4
L
R
VIDEO
AUDIO
S-VIDEO
INPUT 3
L
R
VIDEO
AUDIO
S-VIDEO
INPUT 2
L
R
VIDEO
INPUT 1
AV1 AV2 AV3 AV4
A/V Selector Switch
L
AUDIO R
Setting up your selector switch
INPUT 1 and INPUT 4 can be used for composite video devices only.
INPUT 2 and INPUT 3 can be used for either S-Video or composite video devices.
The jacks on your selector switch are color-coded. Most video and audio cables are also color-coded. Plug connectors into jacks with
matching colors.
Note: Cables are not included.
To connect a video device to your selector switch:
1 Plug an S-Video cable into the S-VIDEO jack on INPUT 2 or INPUT 3 on your selector switch. Plug the other end of the cable into the S-VIDEO
OUT jack on the S-Video device.
OR
Plug the yellow (video) connector on an AV cable into the VIDEO jack on INPUT 1, INPUT 2, INPUT3, or INPUT 4 on your selector switch. Plug
the yellow connector on the other end of the AV cable into the VIDEO OUT jack on the composite video device.
2 Plug an analog (RCA) audio cable into the R (red) and L (white) audio jacks next to the S-VIDEO jack on your selector switch. Plug the other ends
of the cable into the R and L AUDIO OUT jacks on the S-Video device.
OR
Plug the red and white connectors on the AV cable into the R (red) and L (white) audio jacks next to the VIDEO jack on your selector switch.
Plug the other ends of the cable into the R and L AUDIO OUT jacks on the composite video device.
To connect a TV or home theater receiver to your selector switch:
1 Plug an S-Video cable into the S-VIDEO jack on OUTPUT 1 or OUTPUT 2 on the back of your selector switch. Plug the other end of the cable into
the S-VIDEO IN jack on the TV or home theater receiver.
OR
Plug the yellow (video) connector on an AV cable into the VIDEO jack on OUTPUT 1 or OUTPUT 2 on the back of your selector switch. Plug the
yellow connector on the other end of the cable into the VIDEO IN jack on the TV or home theater receiver.
2 Plug an analog (RCA) audio cable into the R (red) and L (white) audio jacks next to the S-VIDEO jack on the back of your selector switch. Plug
the other ends of the cable into the R and L AUDIO OUT jacks on the S-Video device.
OR
Plug the red and white connectors on the AV cable into the R (red) and L (white) audio jacks next to the VIDEO jack on your selector switch.
Plug the other ends of the cable into the R and L AUDIO OUT jacks on the composite video device.
To play from the connected device:
1 On the TV or home theater receiver, select the video input source for the video jack you connected your selector switch to. For information about
selecting a video input source, see the documentation that came with the TV or home theater receiver.
2 Press the input selector selector button on the front of your selector switch that corresponds to the jacks the device you want to use is connected
to. AV 1 corresponds to INPUT 1, AV 2 corresponds to INPUT 2, AV 3 corresponds to INPUT 3, and AV 4 corresponds to INPUT 4.
Your S-Video Audio/Video Selector Switch lets you connect four video devices (such as a cable box, satellite receiver, DVD player, VCR, or game
system) to a TV or home theater receiver that has only one S-Video jack or composite (RCA-type) video jack. Your selector switch acts as a
signal splitter to send composite and S-Video signals and analog stereo audio to two destinations, such as a TV and VCR or two TVs.
Package contents
• S-Video Audio/Video Selector Switch
• Quick Setup Guide
One-year limited warranty
For complete warranty, visit www.dynexproducts.com.
Contact Dynex:
For customer service call 1-800-305-2204
www.dynexproducts.com
© 2011 BBY Solutions, Inc. All Rights Reserved.
DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.

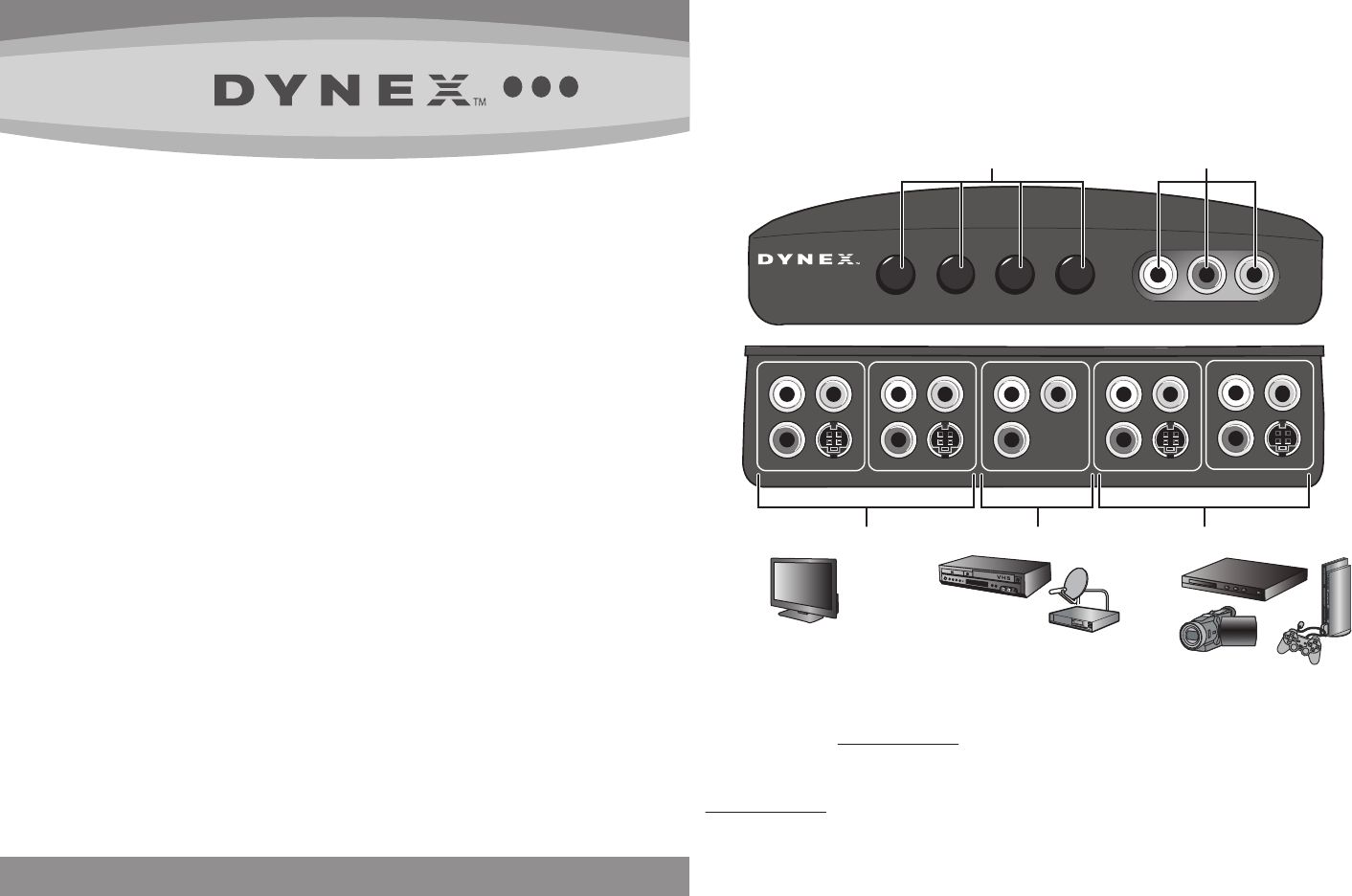

Input selector buttons Connect a composite video device
Connect a TV or home theater receiver Connect S-Video or composite video devices Connect a composite video device
