Product Data Document
420DS-6c / D301311X012
January 29, 2009 - Page 1
Website: www.EmersonProcess.com/Remote
Remote Automation Solutions
Bristol
®
ControlWave
®
Express
SCADA RTU

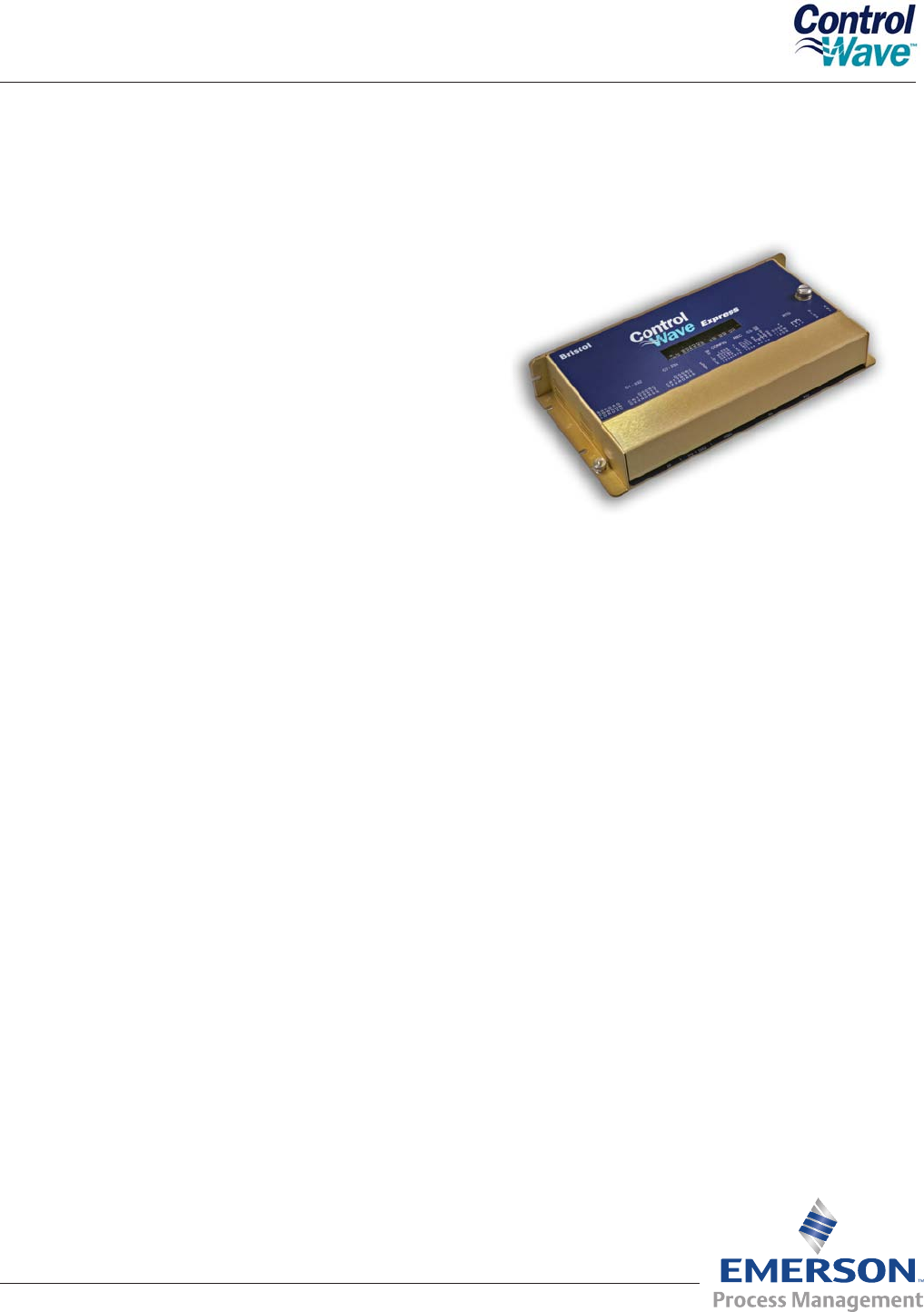

Bristol® ControlWave® Express SCADA RTU, from
Emerson Process Management, provides excep-
tional performance and unique functionality for
applications requiring low installation cost, very low
power consumption, and space efciency.
As an integrated RTU is a SCADA system,
ControlWave Express has the unique attributes
required for wide area networks, without sacricing
process control performance.
Multiple serial communication ports for network, •
local and multi-vendor connectivity
Built-in BSAP, Modbus & DNP protocols for •
broad network compatibility
Report-By-Exception for communication •
efciency
Modbus Store and Forward capability for •
geographic exibility with radio networks
Ultra low power modes for solar applications •
and reduced solar panel and battery costs
Wide operating temperature range for remote •
outdoor locations
Application Suitability
Based on years of experience in water, gas and
SCADA related industries, ControlWave Express
has the technology, functional benets and open
architecture to excel in many applications.
Water distribution: Pump, tank, well and reservoir
control
Wastewater: Lift station and storm water monitoring
and control
Natural Gas: Gas well, storage and plunger lift
control
Features
ARM processor provides exceptional •
performance and low power consumption
IEC 61131-3 programming with ACCOL III •
process control function block library
Optional 100/10 MB Ethernet port•
Three serial communication ports •
Flexible xed I/O congurations•
4 Digital inputs•
2 Digital outputs•
2 selectable Digital inputs/outputs•
2 selectable Digital inputs/counters•
2 selectable Digital/Pulse inputs on CPU•
3 optional Analog inputs•
1 optional Analog output•
Wide temperature range (-40 to +70ºC)•
Class I, Div. 2 hazardous location and CE •
approval
Open standards for programming, network •
conguration and communication
