Epson 2000 Personal Computer User Manual



Locating the Internal Components

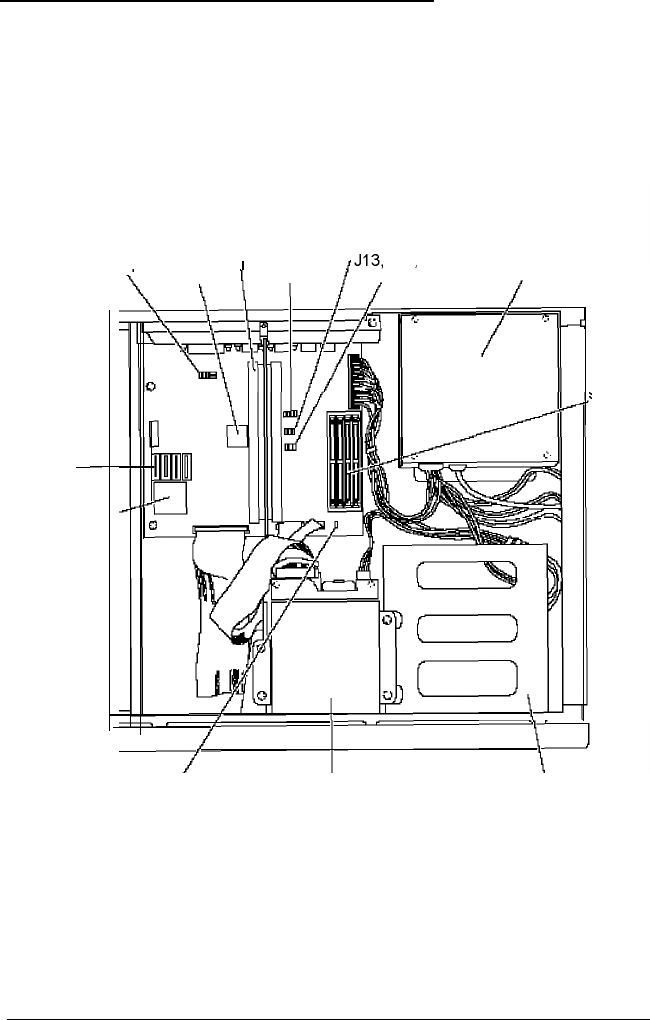

As you follow the instructions in this chapter, refer to the
following illustration to locate the major components inside
your computer.
J1-J5
video
memory
sockets
_
coprocessor
socket
option card
connector
board
J10-J12
power
microprocessor
I
J6-J9
,J13, J14. J16
supply
I
drive mounting
J15
bracket
drive bays
SlMM
sockets
Installing and Removing Options
3-5
