video Processing
Encoder ........................... 10 bit digital
Frequency response ............ Luminance: 0 to 5.75 MHz, ±0.5 dB
Chroma: 0 to 2.75 MHz, ±0.5 dB
S/N ................................. >70 dB
RGB matrix error ................ <1%
video oUtPUt
Number / signal type ........... 1 analog RGBHV/RGBS/RGsB or component video (Y, R-Y, B-Y)
(switch selectable)
Connectors ....................... 6 female BNC
Nominal levels ................... RGB: 0.7 Vp-p
Component video: Y = 1 Vp-p; R-Y, B-Y = 0.7 Vp-p
Impedance ........................ 75 ohms
Return loss ....................... -30 dB @ 5 MHz
sync
Output type ....................... RGBHV, RGBS, RGsB
Output impedance .............. 75 ohms
Max. rise / fall time ............. 200 ns
Polarity ............................ Bi-level or tri-level sync (switch selectable) on the luma (Y) channel of
component video output
general
Power .............................. 100 VAC to 240 VAC, 50/60 Hz, internal, universal, 10 watts
Temperature / humidity ........ Storage -40° to +158°F (-40° to +70°C) / 10% to 90%, noncondensing
Operating +32° to +122°F (0° to +50°C) / 10% to 90%, noncondensing
Rack mount ...................... Yes, with optional rack shelf, part #60-190-01 or 60-604-01
Enclosure type ................... Metal
Enclosure dimensions .......... 1.75" H x 8.75" W x 8.0" D (1U high, half rack wide)
4.4 cm H x 22.2 cm W x 20.3 cm D
(Depth excludes connectors.)
Product weight .................. 1.9 lbs (0.9 kg)
Shipping weight ................. 4 lbs (2 kg)
Vibration .......................... ISTA 1A in carton (International Safe Transit Association)
Listings ............................ UL, CUL
Compliances ..................... CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF .............................. 30,000 hours
Warranty .......................... 3 years parts and labor
NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.
DigiTal To analog converTerS

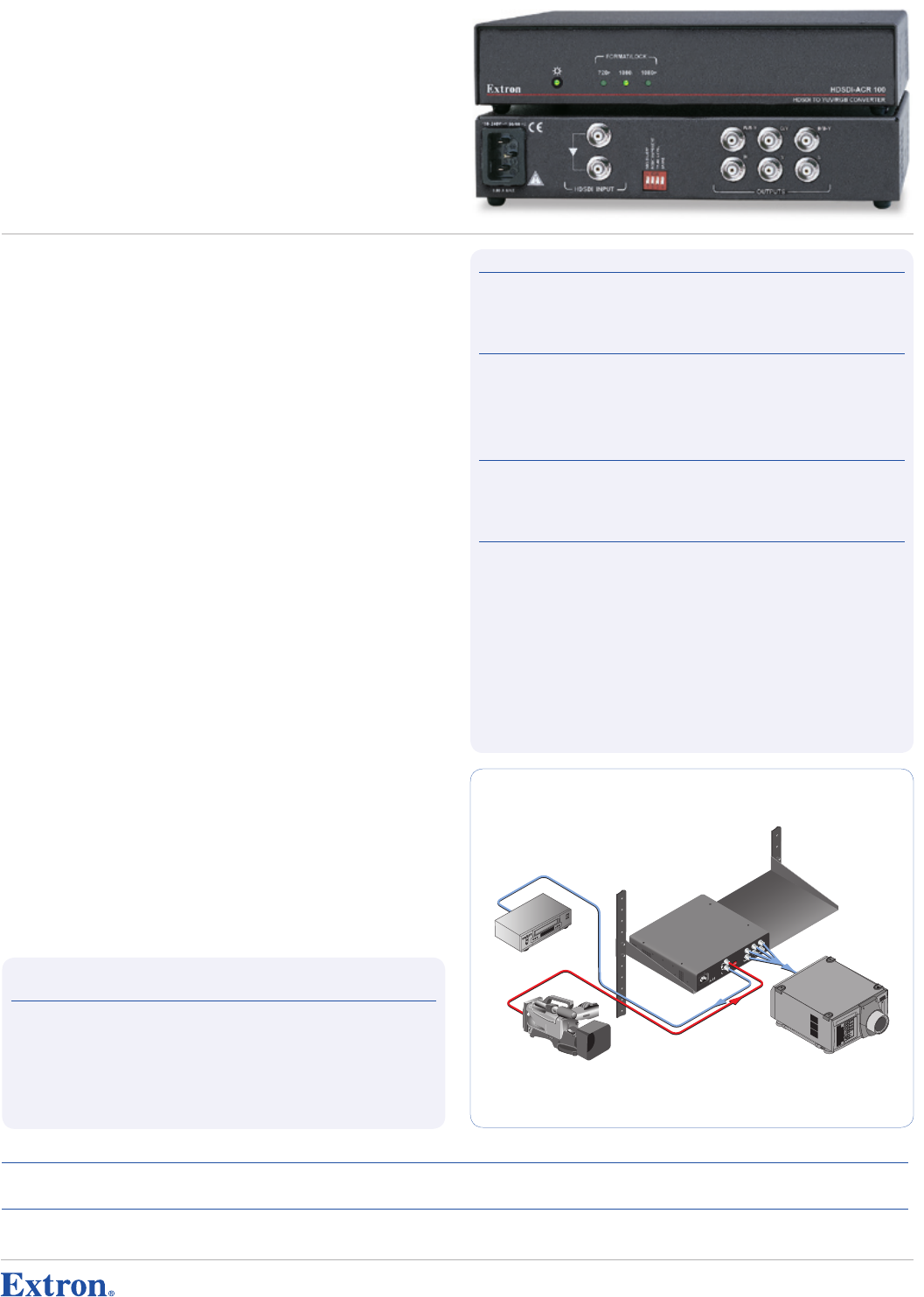

HDSDI-ACR 100
HD-SDI to Analog Component and RGB Converter
FeatUres
•
Input: Female BNC for HD-SDI
•
Output: Female BNCs for component video and RGB
•
Accepts HD-SDI at 720p, 1080i, and 1080p rates at 24, 25, and 30 Hz
•
10-bit processing
•
Auto input equalization and reclocked loop-through
•
Outputs component video - Y, R-Y, B-Y or RGB - RGsB, RGBS, or RGBHV
•
Bi-level or tri-level sync available for component video output
•
Rack-mountable 1U, half rack width metal enclosure
•
Internal international power supply
descriPtion
The Extron HDSDI-ACR 100 converts HD-SDI - High Definition Serial Digital Interface signals
to analog component and RGB video. The HDSDI-ACR 100 is ideal for A/V systems that use
a mix of analog and HD-SDI sources. The HDSDI-ACR 100 integrates HD-SDI sources into an
analog video environment. Applications include presentations utilizing disk recorders, broadcast
production, non-linear editing stations, and rental and staging events.
The HDSDI-ACR 100 accepts 720p, 1080i, and 1080p rates at 24, 25, and 30 Hz, and provides
input equalization and a re-clocked loop-through. It outputs analog component, RGsB, RGBS, and
RGBHV. Bi-level or tri-level sync can be selected when the unit is set for component output.
sPeciFications
video inPUt and looP-throUgh
Number / Signal type ........... 1 HDSDI (SMPTE 292M)
Connectors ....................... 1 female BNC (HDSDI input)
1 female BNC (HDSDI and reclocked loop-through)
NOTE: The equalization applied to the input signal is sufficient for an input coaxial cable length of at least 330 feet
(100 meters) of Extron SHR cable or Belden 8281 cable.
Nominal level .................... 0.8 Vp-p
Minimum / Maximum levels ... 0.5 V to 1.0 Vp-p with no offset
Impedance ........................ 75 ohms
DC offset (max. allowable) ....... ±0.5 V
Model version descriPtion Part #
HDSDI-ACR 100 HD-SDI to Component/RGB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-408-01
oPtional accessories Model descriPtion Page Part #
RSU 129 1U 9.5" Deep Universal Rack Shelf Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 819 60-190-01
RSB 129 1U 9.5" Deep Basic Rack Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 820 60-604-01
