sPEcIfIcAtIons
EtHErnEt controL IntErfAcE
Connectors ....................... 1 RJ-45 female connector
Data rate .......................... 10/100Base-T, half/full duplex with autodetect
Protocols .......................... ARP, DHCP, ICMP (ping), TCP/IP, UDP/IP, Telnet, HTTP, SMTP
Default settings .................. Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Gateway = 0.0.0.0
DHCP = off
Program control ................. Extron’s Simple Instruction Set (SIS
™
)
Global Viewer requirements ... Microsoft
®
Internet Explorer ver. 6 or higher
rELAY controL IntErfAcE
Quantity / Type ................... 8 normaly open relays
Relay control connectors ...... (2) 3.5 mm captive screw connectors, 8 pole
Relay control contact rating ... 24 V, 1 A
contAct cLosurE controL IntErfAcE
Quantity / Type ................... 4 contact closure inputs on (1) 3.5 mm captive screw connector, 5 pole
Contact closure (input only)
Input voltage range ............... 0 to 5 VDC, clamped at +5.1 V
Input impedance .................. 10k ohms
Threshold .......................... 1.6 VDC
GEnErAL
Power .............................. Supplied by an included external power supply. Alternatively, the product can use
power supplied over LAN/Ethernet (802.3af, class 2).
External power supply ......... 100 VAC to 240 VAC, 50/60 Hz, external, universal; to 12 VDC, 1 A, regulated
Power input requirements ..... 12 VDC, 0.5 A
Rack mount ...................... Yes, with optional mount kit
Enclosure type ................... Metal
Enclosure dimensions .......... 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide)
4.3 cm H x 10.9 cm W x 7.6 cm D (Depth excludes connectors.)
Product / Shipping weight ..... 0.7 lbs (0.3 kg) / 2 lbs (1 kg)
fEAturEs
•
Eight normally open relays, 24 VDC, 1A
•
Four contact inputs, TTL only
•
Controls screens, timers, lights, and more
•
Integral high performance Web server — Each IP Link interface features a built-in
Web server with memory available for storing device drivers, GlobalViewer, and custom
user Web pages.
•
Supports industry standard Ethernet protocols — All IP Link models use industry
standard Ethernet communication protocols, including ARP, DHCP, ICMP, UDP/IP, TCP/IP,
Telnet, HTTP, and SMTP.
•
Simultaneous multi-user support — Each IP Link device supports multiple concurrent
users, improving system throughput.
•
E-mail notification enables proactive support — Technical support administrators
and others can receive failure and service messages through an e-mail enabled cell
phone, PDA, pager, or Internet e-mail account.
•
Multiple levels of access with password protection — User access level authorizes
limited entry to only pre-designated functions, while administrator access level permits
full access to advanced settings.
•
Free Global Configurator, easy-to-use configuration utility — Global Configurator
software, a free Windows
®
based configuration utility, makes product setup simple and
intuitive – no programming knowledge is required.
•
Free GlobalViewer
®
, Web-based asset management application — When used with
GlobalViewer, IP Link interfaces provide a powerful, flexible way to manage, monitor, and
control both Extron and third-party equipment like projectors, plasmas, monitors, VCRs,
DVD players, and other devices using a standard TCP/IP network.
•
Internal real-time clock — Programmable operating alerts, sequencing, and automatic
monitoring, together with the real-time clock and calendar, allow IP Link interfaces to
routinely check configured devices.
•
Supports Power Over Ethernet, PoE 802.3af — Power over Ethernet is a technology
for wired Ethernet networks that allows the electrical current necessary for the operation
of compliant devices to be carried by the data cables rather than by power cords.
•
Plenum rated - meets UL 2043 for heat and smoke release, excluding power supply
•
External universal power supply included, part # 70-055-01 — Provides worldwide
power compatibility.
dEscrIPtIon

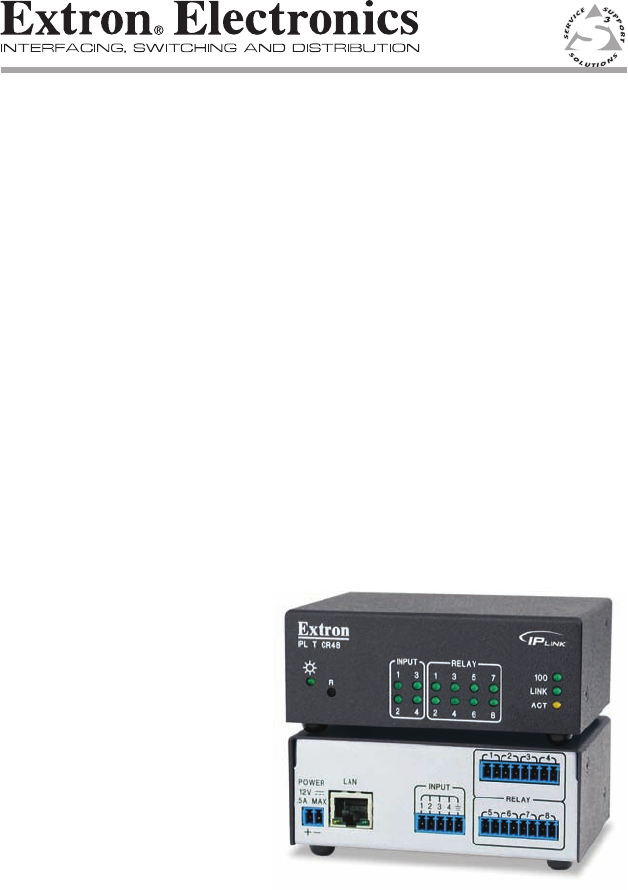

The Extron IPL T CR48 is a compact Ethernet control interface with integral Web server, four
contact input ports, and eight relays. It is designed to integrate IP - Internet Protocol connectivity
into A/V systems for Web-based remote control of screens, timers, lights, motion sensors, and
more. Four contact inputs, TTL only, and eight normally open relays offer the ability to control a
wide variety of products in an A/V presentation environment.
GlobalViewer
®
Web-based Asset Management Application
Extron GlobalViewer is the free, Web-based, asset management and control application designed
specifically for IP Link Ethernet network interfaces. With GlobalViewer and the IPL T CR48,
users can monitor and control projector lifts, screens, window shades, doors, and lighting
systems
—
all from the convenience of a central monitoring station.
IPL T CR48
Four Contact Input and Eight Relay Port IP Link
®
Ethernet Control Interface
IP LInk
®
Products
modEL VErsIon dEscrIPtIon PArt #
IPL T CR48 Four contact inputs, eight relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-544-05
oPtIonAL AccEssorIEs modEL dEscrIPtIon PAGE PArt #
RSU 129 1U 9.5" Deep Universal Rack Shelf Kit . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 819 60-190-01
RSF 123 1U 3.5" Deep VersaTools
®
Rack Shelf Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 818 60-190-20
MBU 123 VersaTools
®
Mini Under-Desk Mount Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . page 815 70-212-01
PMK 100 One VersaTools
®
, 1/4 Rack Width Mini Projector Mounting Kit . . . .. . . . . . . . . . . . . . . page 813 70-217-01
