Nominal level .................... 0.7 Vp-p for RGB
Minimum / Maximum levels ... Analog: 0.3 V to 1.45 Vp-p with no offset at unity gain
Impedance ........................ 75 ohms
Horizontal frequency............ 15 kHz to 130 kHz
Vertical frequency ............... 30 Hz to 170 Hz
Return loss ....................... <-41 dB @ 5 MHz
DC offset (max. allowable) ....... 4 V
Video output
Number / Signal type ........... 1 RGBHV, RGBS, RGsB
Connectors ....................... 6 BNC female
Nominal level .................... 0.7 Vp-p for RGB
Minimum / Maximum levels ... 0.7 V to 0.8 Vp-p (switch selectable) with peaking
Impedance ........................ 75 ohms
Return loss ....................... -45 dB @ 5 MHz
DC offset .......................... ±5 mV with input at 0 offset
synC
Input type ......................... RGBHV, RGBS, RGsB (does not strip sync from video)
Output type ....................... RGBHV at all times, RGBS at all times, RGsB (switch selectable)
Input level ........................ 2.0 V to 5.5 Vp-p with ±0.2 VDC offset (max.)
Output level ...................... 4.0 V to 5.0 Vp-p, unterminated
Input impedance ................ 510 ohms
Output impedance .............. 75 ohms
Max. propagation delay ........ 57 ns
Max. Rise / Fall time ............ 4 ns
Polarity ............................ RGBHV input: positive or negative (follows input)
RGBS, RGsB input: negative
General
External Power Supply ......... 100 VAC to 240 VAC, 50/60 Hz, external, universal; to 12 VDC, 1 A,
regulated, included
Power input requirements ..... 12 VDC, 0.35 A
Rack mount ...................... No, but furniture mountable with included under-desk mounting brackets
Enclosure type ................... Metal
Enclosure dimensions .......... 1.0" H x 5.7" W x 4.5" D
2.5 cm H x 14.5 cm W x 11.4 cm D (Depth excludes connectors.)
Product / Shipping weight ..... 0.9 lbs (0.4 kg) / 3 lbs (2 kg)
Int er fac es — comp ut er -VIdeo Inte rfac es
RGB 190FV
Universal Computer-Video Interface
features
• Input: RGB video on female 15-pin HD connector, cable included
• Output: RGB video on female BNC connectors for RGsB, RGBS, or RGBHV
• Compatible with VGA–QXGA, Mac, Sun
®
, and SGI
®
computers
• 300 MHz (-3 dB) RGB video bandwidth
• Horizontal shift control — Shifts the displayed image left or right on the display
screen. Also called "horizontal centering".
• Includes a 6' (1.8 m), 15-pin HD male-to-male, PC input cable
• Includes under-desk mounting kit, part# 70-077-01
• DDSP
™
- Digital Display Sync Processing — Allows the sync signal to pass through
without altering sync pulse or width. Disables other sync processing features such as
horizontal and vertical centering. DIP switch-selectable.
• Buffered female 15-pin HD local monitor output
• Durable metal enclosure
• External universal power supply included, part # 70-055-01
desCription

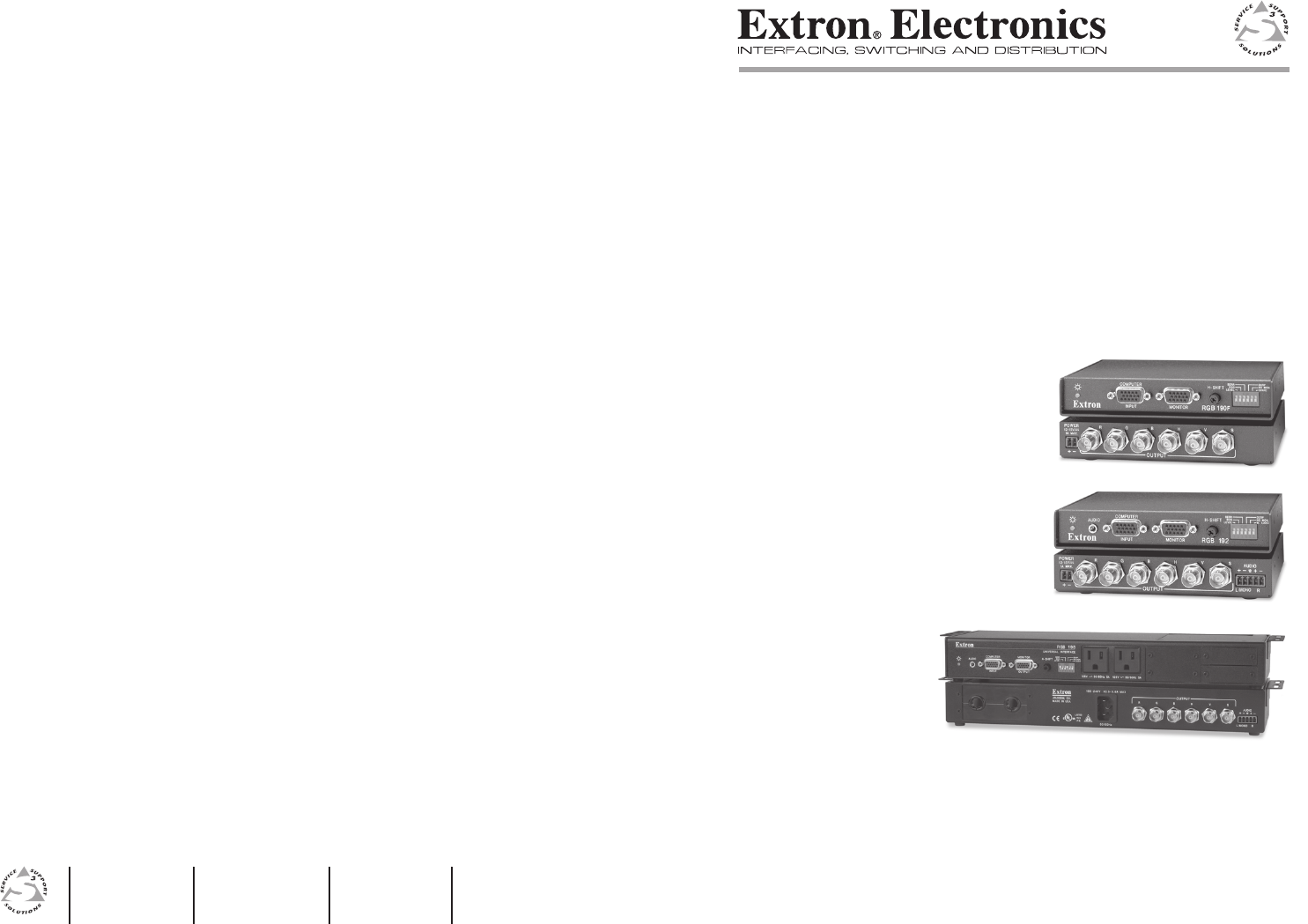

The Extron RGB 190FV is a universal, analog computer-video interface with a female
15-pin HD input and a buffered local monitor output. It includes a 15-150 kHz scanning
range, 300 MHz (-3 dB) RGB video bandwidth, and is compatible with nearly every computer-
video signal, including VGA–QXGA, Mac, Sun
®
, and SGI
®
. ID bit termination is provided on
pins 4 and 11 of its 15-pin HD input, ensuring that computers requiring local monitors to
operate will do so in the event that one is not attached.
For PCs, the RGB 190FV ships with a 6-foot 15-pin HD male-to-male VGA input cable. For
Macs with 15-pin D connector video outputs, and Sun, SGI, and IBM Power PC workstations
with 13W3 video outputs, an optional adapter kit is required.
The RGB 190FV features horizontal shift control, simultaneous output of composite and separate
H&V sync, sync on green output and serration pulse removal, both DIP switch-selectable, and
DDSP
™
- Digital Display Sync Processing, also DIP switch-selectable.
speCifiCations
Video
Gain ................................ Unity (0.7 V), (0.8 V) 15% with 3 dB peaking
Bandwidth ........................ 300 MHz (-3 dB)
Max. Rise / Fall time ............ 1.5 ns
Video input and loop-throuGh
Number / Signal type ........... 1 analog VGA–QXGA, Mac, Sun RGBHV, RGBS, RGsB
1 buffered local monitor loop-through identical to the input
Connectors ....................... (1) female 15-pin HD (input), (1) female 15-pin HD (loop-through)
optional aCCessories model desCription paGe part #
Mac 15-HD Mac Adapter Kit with Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 60 70-156-01
13W3 - 15HD 13W3 Adapter Kit with Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 60 70-157-03
MBD 129 1U, 1/2 & 1/4 Rack Width Through-Desk Mount Kit for Two-Piece Enclosure . . . page 817 70-077-02
model Version desCription part #
RGB 190FV Computer-Video Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-486-61
