E-28
CONNECTION

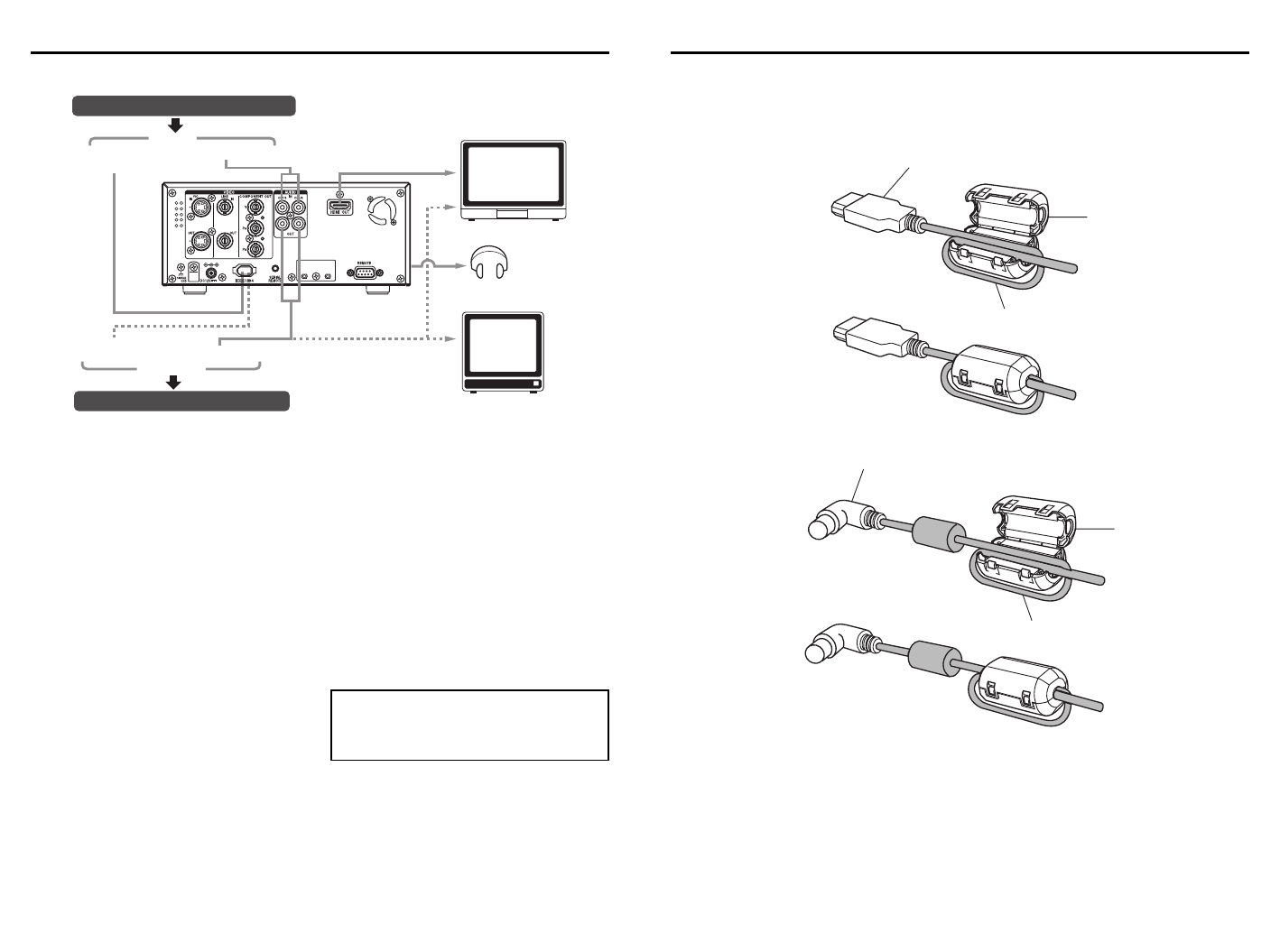

Connecting audio signals
Input signal
z Analog input
AUDIO IN terminal (RCA×2)
Connect an audio cable.
There are analog input terminals for 2 chan-
nels.
Four channels cannot be recorded simulta-
neously. Audio input from each terminal is
recorded to CH1 and CH2.
z Digital input
IEEE1394 terminal (6P)
Connect an IEEE1394 (6PIN) cable.
Inputs HDV signals or DV signals.
Digital audio signals are input with the video.
•The DV signal audio mode (48kHz or
32kHz) will match the input signal audio
mode.
• During digital signal input, the recording
level cannot be adjusted.
Output signal
z AUDIO OUT terminal (RCA×2)
Connect an audio cable.
Analog audio is output.
For the DV format, tracks are available for 4
channels (in the 32kHz audio mode).
•In the 32kHz audio mode, the audio chan-
nel to output can be selected from 4 chan-
nels using A.OUTPUT: DV in the AUDIO
Menu screen.
z PHONES terminal (Stereo ø3.5)
Connect headphones.
z IEEE1394 terminal (6P)
This is also an input terminal. Connect an
IEEE1394 (6PIN) cable.
Digital audio signals are output with the video.
IEEE1394
AUDIO
OUT
AUDIO IN
HDMI OUT
Audio output, e.g., VCR/Camera
Digital audio
HDV/DV
Analog audio
HD monitor
Digital audio
HDV/DV
Video input, e.g., VCR
Monitor
Analog audio
Analog audio
input
output
Digital audio
Headphones
•Attach the supplied filter to the IEEE1394
cable. (XPage 29)
•For more information on the IEEE1394 termi-
nal, refer to page 18.
E-29
CONNECTION
Attaching the supplied ferrite core
z Always attach the supplied ferrite core to the IEEE1394 cable and DC cord to decrease unnecessary
wave radiation.
z Attach the ferrite core close to the unit.
For BR-HD50 IEEE1394 terminal
Supplied ferrite core
Wrap the cable once around the ferrite core.
For BR-HD50 DC IN terminal
Supplied ferrite core
Wrap the cord once around the ferrite core.
