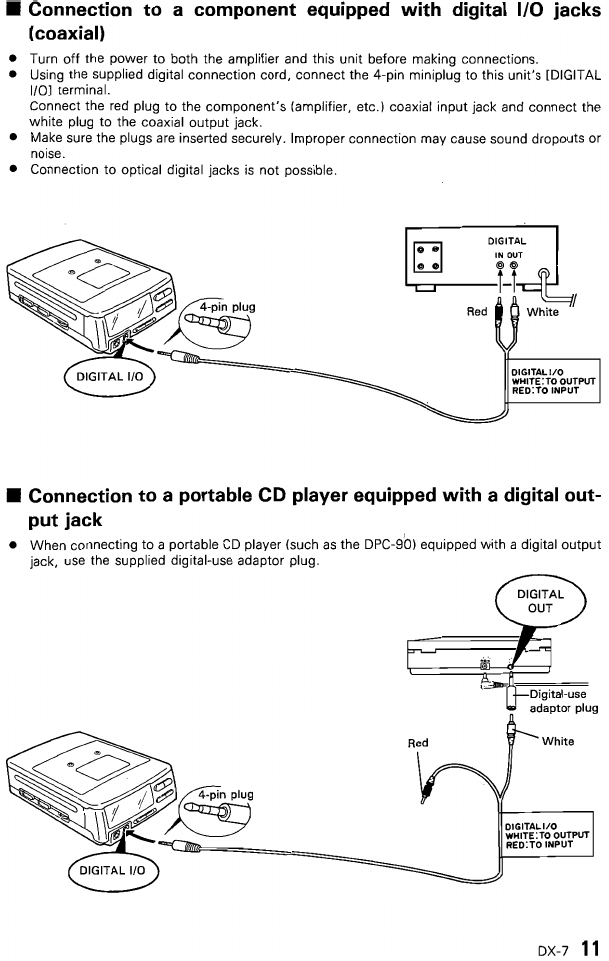

• Connection to a component equipped with digital 1/0 jacks
(coaxial)
• Turn
off
the power to both the amplifier and this unit before making connections.
• Using the supplied digital connection cord, connect the 4-pin miniplug
to
this
unit's
[DIGITAL
1/0]
terminal.
Connect the red plug
to
the component's (amplifier, etc.) coaxial input jack and connect the
white plug to the coaxial
output
jack.
• Make sure the plugs are inserted securely. Improper connection may cause sound dropouts or
noise.
• Connection
to
optical digital jacks
is
not possible.
[O"@]
~
DIGITAL
Red
• Connection to a portable CD player equipped with a digital out-
put jack
• When connecting
to
a portable
CD
player (such
as
the DPC-90) equipped with a digital output
jack, use the supplied digital-use adaptor plug.
DIGITALI/O
WHITE:TO OUTPUT
REO:TO INPUT
DX-7
11
