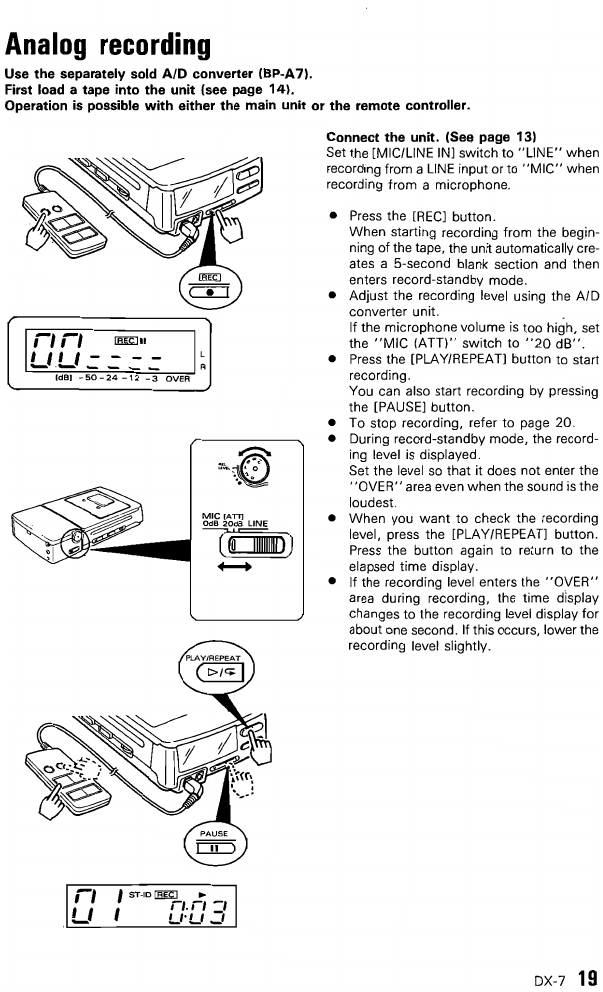

Analog
recording
Use the separately
sold
AID converter (BP-A7),
First load a tape into the unit (see page
14),
Operation
is
possible with either the main unit or the remote controller,
1[1[/::
~II
I~
~~I~dB~I~-~5~O~24~'~2~3~O"'V"'ER~
MIC
(ATT]
OdB
20dB
LINE
l'fino)
+-+
"
'ST.ID
[jjg]
..
'_"
nn
=,
U'U_'
Connect the unit, (See page
13)
Set the [MIG/LINE IN] switch to
"LINE"
when
recording from a
LINE
input or to
"MIG"
when
recording from a microphone.
• Press the
[REG]
button.
When starting recording from the begin-
ning of the tape, the unit automatically cre-
ates a 5-second blank section and then
enters record-standby mode.
• Adjust the recording level using the
AID
converter unit.
If the microphone volume is too high, set
the
"MIG
(ATT)' , switch
to
"20
dB".
• Press the [PLAY/REPEAT] button to start
recording.
You can also start recording by pressing
the [PAUSE] button.
• To stop recording, refer
to
page 20.
• During record-standby mode, the record-
ing level
is
displayed.
Set the level
so
that
it does not enter the
"OVER"
area even when the sound
is
the
loudest.
• When you
want
to
check the recording
level, press the [PLAY/REPEAT] button.
Press the button again to return to the
elapsed time display.
• If the recording level enters the
"OVER"
area during recording, the time d'isplay
changes
to
the recording level display for
about one second. If this occurs, lower the
recording level slightly.
DX-7
19
