Connecting your computer to your LCD monitor will enable you to display your computer’s screen image.
Some video cards may not display an image correctly.
• To connect the RGB 2 IN connector (mini D-sub 15 pin) on the LCD monitor, use the provided RGB signal cable (mini D-sub 15 pin to
mini D-sub 15 pin).
• To connect the RGB 3 connector (BNC) on the LCD monitor, use a signal cable (mini D-sub 15 pin to BNC x 5). Select RGB 3 from the
INPUT button.
• When connecting one or more LCD monitor, use the RGB OUT connector (mini D-sub 15 pin).
• The AUDIO IN 1, 2 and 3 can be used for audio input. For connection, select AUDIO 1, 2 or 3 from the AUDIO INPUT button.

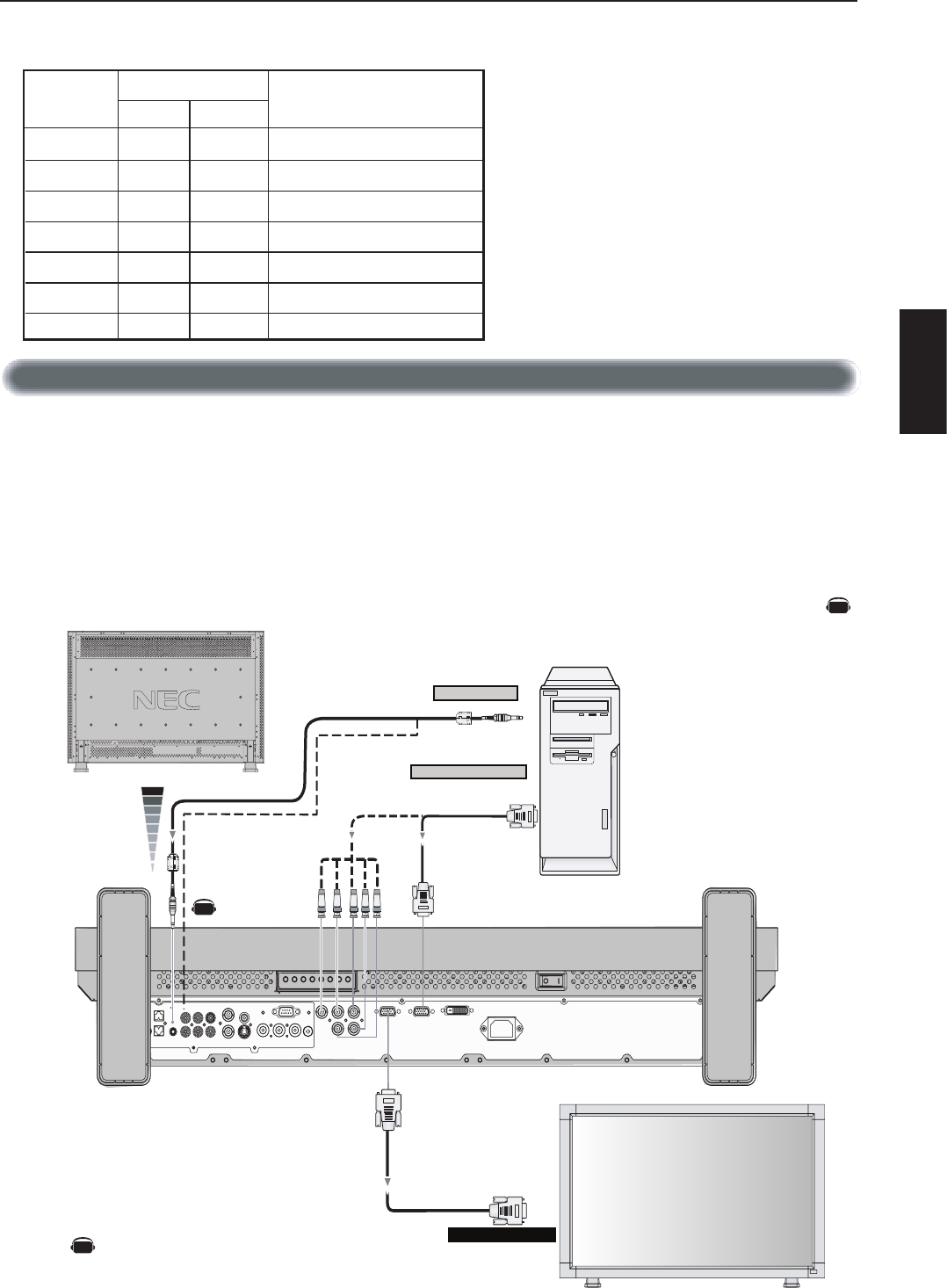

Connecting the LCD Monitor to a PC
Connections -continued
Resolution
640 x 480
800 x 600
1024 x 76
8
1280 x 76
8
1360 x 76
8
1280 x 1024
1600 x 1200
31.5Hz
37.9H
z
48.4Hz
48Hz
48Hz
64Hz
75Hz
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
Recommended resolution
Compressed imag
e
Compressed imag
e
RemarksHorizontal Vertica
l
Scanning frequency
AV
Denotes an AV unit function.
All AV functions are enabled when the AV unit is installed.
AV
LCD monitor
To audio output
To analog RGB output
Mini D-sub 15 pin
BNC x 5
Mini D-sub
15 pin
PC or IBM Compatible
Mini D-sub
15 pin
Mini D-sub 15 pin
To analog RGB input
LCD monitor (second monitor)
AV
