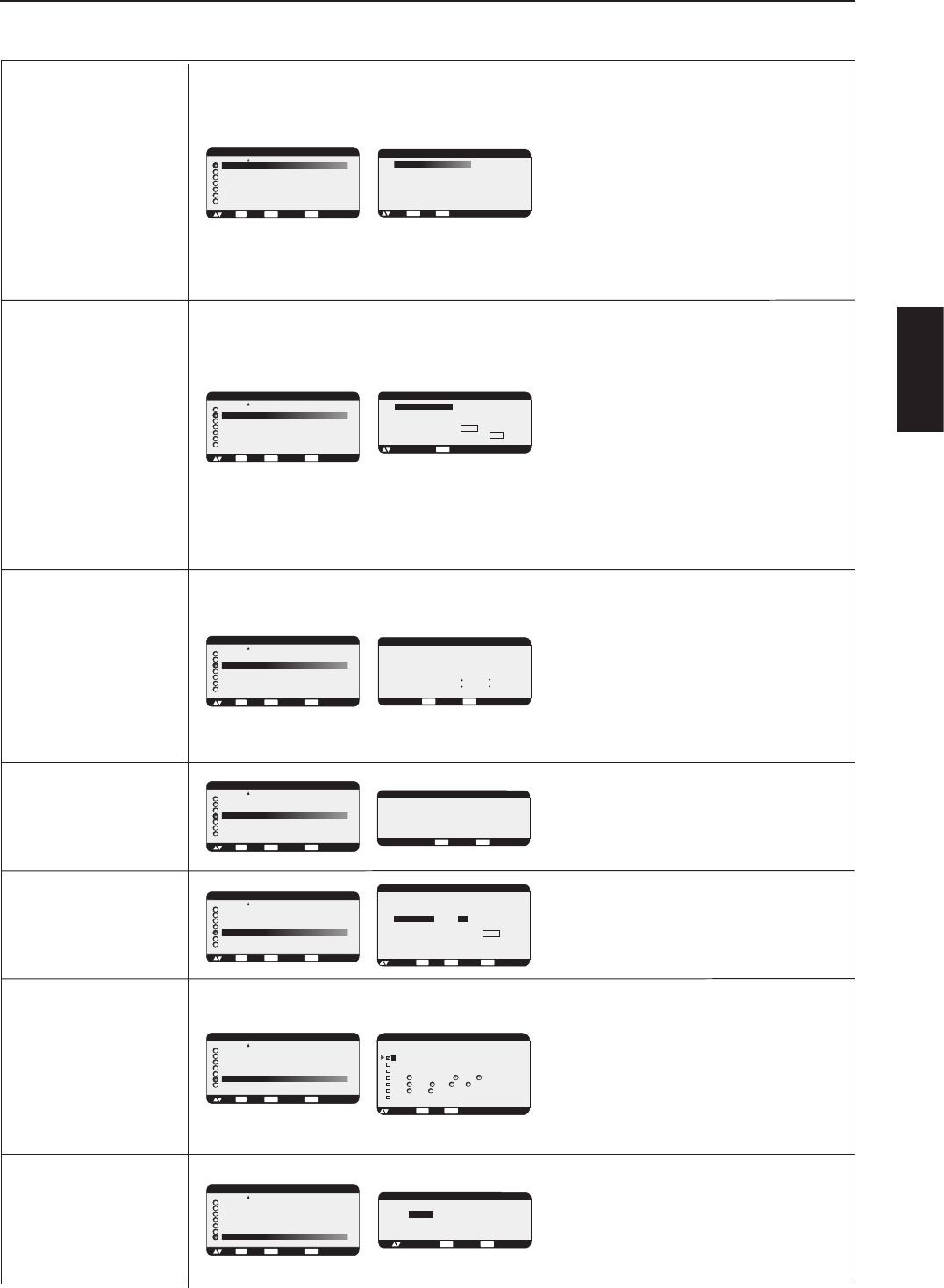

OSM Controls-Advanced option
IR CONTROL
TILE MATRIX
HEAT STATUS
POWER ON DELAY
DATE & TIME
SCHEDULE
ADVANCED
OPTION RESET
Adjusts the delay time from "standby" to "power on"
mode.
"POWER ON DELAY" can be set between
0 and 50 sec.
Sets the current date and time for internal clock.
You should set this function, when you use "SCHEDULE".
The "TILE MATRIX" feature allows one image to be
displayed on multiple screens. This feature can be used
with up to 16 monitors. (4 horizontal x 4 vertical)
Using the Tile Matrix function requires the PC output
signal to be sent through a distribution amplifier to each
individual monitor.
H MONITORS: Selects the number of horizontal displays.
V MONITORS: Selects the number of vertical displays.
POSITION: Selects a position to expand the screen.
TILE COMP: Works in tandem with "TILE MATRIX" to
compensate for the width of the tiled bezels in order to
accurately display the image.
ENABLE: Select "YES", to expand the signal to the
selected settings.
PIP and DYNAMIC zoom mode will be disabled when the
"TILE MATRIX" is activated.
Displays status of COOLING FAN, BRIGHTNESS and
TEMPERATURE.
COOLING FAN activates when the inside temperature
exceeds highest recommended operating temperature
BRIGHTNESS decreases when inside temperature
exceeds highest recommended operating temperature
with cooling fan running. In this case a warning is
displayed on the screen.
Programs the monitor's working schedule.
Sets the hour and day of the week when the monitor
powers on or off. Also sets the input port.
Select "EXIT" to set schedule.
(see "NOTE 2" on page 28 for further information)
Selecting ADVANCED OPTION RESET allows you to
reset all OSM settings from the ADVANCED OPTION
settings, except for DATE & TIME, and SCHEDULE.
Select "YES" and press "SET" button to restore the
factory preset data.
Press "EXIT" button to cancel and then return the
previous menu.
Selects the infra-red wireless remote controllers mode.
The item in this menu will become effective by pressing
"SET" button on the selected item.
NORMAL: The monitor will be controlled normally by
wireless remote controller.
LOCK: Disable the monitor control by infra-red wireless
remote controller.
Keep pressing "DISPLAY" button for 5 or more seconds,
this setting will return to "NORMAL".
See "NOTE 2" on page 28
