RM383PA

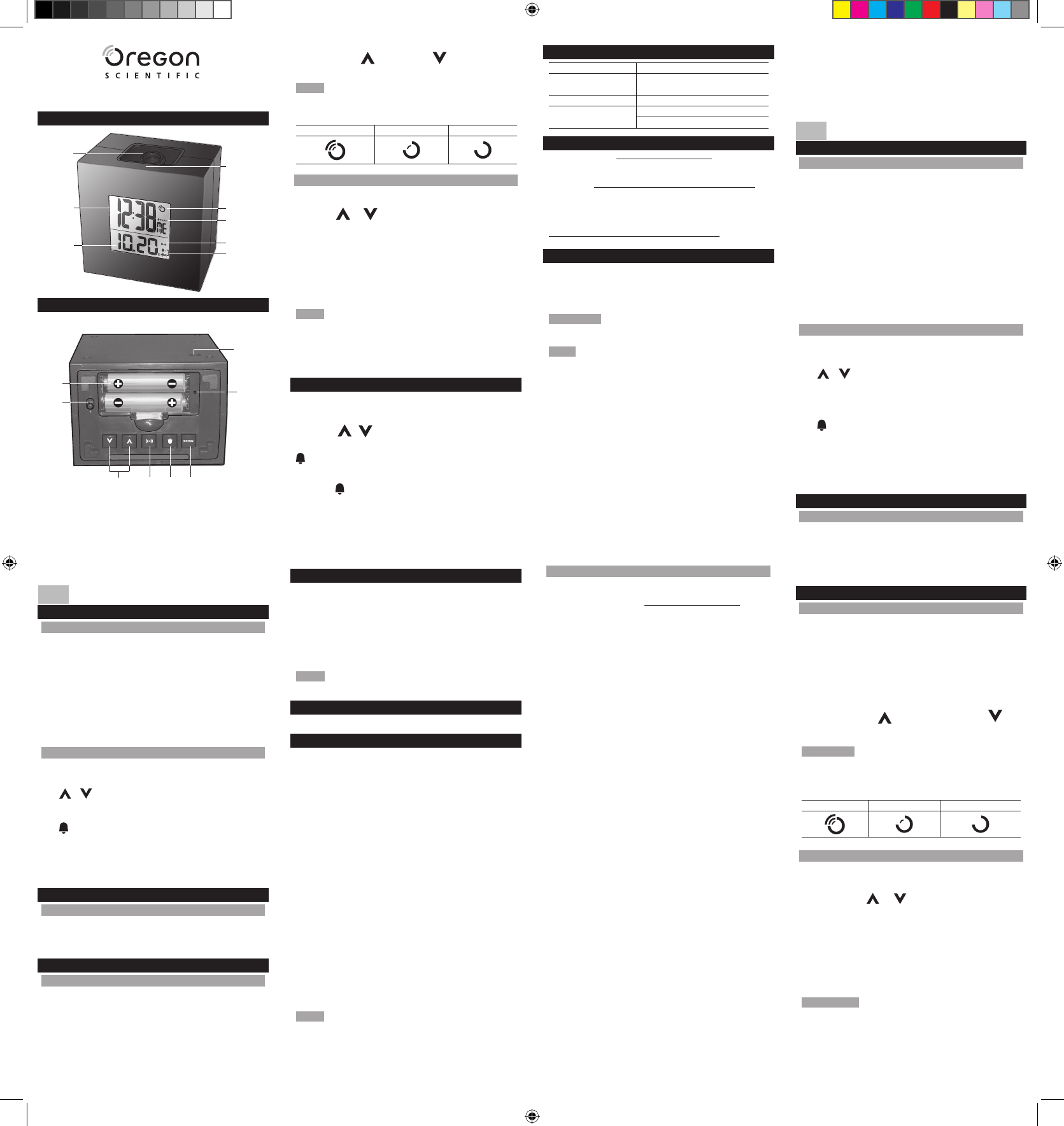

FIG. 1
1
2
3
7
4
5
6
8
FIG. 2
2
1
3
7
8
4 5 6
Atomic Projection Clock with
Ambient Lighting
Model: RM383PA
USER MANUAL
OVERVIEW
FRONT VIEW (FIG. 1)
1. LED Projection / FOCUS: adjust projected image
2. Clock with Seconds / Weekday
3. Calendar
4. SNOOZE: Press to activate snooze function / activate
backlight*
5. Signal
reception indicator
6. Time
zone offset
7. Alarm display mode
8. Alarm 1 / 2 is ON
*when adapter is connected, backlight is continuously on.
BOTTOM VIEW (FIG. 2)
1. Battery compartment
2. PROJECTION ON / OFF: enable / disable continuous
projection
3. / : Increase / decrease values of the selected
setting; activate / deactivate clock reception signal
4. ((.)) ALARM: View alarm status; set alarm
5. ALARM ON/OFF: activate / deactivate alarm
function
6. MODE: Change settings / display
7. AC / DC socket
8. RESET: Reset unit to default settings
GETTING STARTED
INSERT BATTERIES
1. Remove the battery compartment.
2. Insert the batteries, matching the polarities (
+ / -).
3. Press
RESET after each battery change.
CLOCK
CLOCK RECEPTION
This product is designed to synchronize its clock automatically
with a clock signal.
RM383PA:
• WWVB-60 signal: within 3200km (2000 miles) of Fort
Collins Colorado. Manually set clock to select time zone
(Pacific, Mountain, Central or Eastern).
EN
To enable / disable signal reception:
Press and hold
to enable or to disable signal
reception.
NOTE
Reception takes 2-10 minutes. If the signal is weak,
it can take up to 24 hours to get a valid signal.
Clock signal reception indicator:
STRONG SIGNAL WEAK SIGNAL NO SIGNAL
MANUALLY SET CLOCK
1. Press and hold MODE to enter.
2. Press
MODE to toggle between displays.
3. Press
or to increase / decrease values of the
selected setting.
4. Press
MODE to confirm.
The settings order is: time zone offset, 12/24 hr format,
hour, minute, year, month-day / day-month, month, day and
language.
RM383PA: Select the time zone: (P) Pacific, (E) Eastern, (C)
Central or (M) Mountain.
NOTE The language options are English (E), German (D),
French (F), Italian (I), and Spanish (S).
To select display mode:
Press MODE to choose between clock with seconds and
clock with weekday.
ALARM
To set the alarm:
1. Press
((.)) to toggle between Alarm 1 / 2.
2. Press and hold
((.)) to enter alarm setting.
3. Press
/ to set hour / minute.
4. Press
((.)) to confirm or MODE to confirm and exit.
indicates alarm is ON.
To activate / deactivate alarm 1 and / or 2:
• Press
.
To silence the alarm:
• Press SNOOZE to silence it for 8 minutes
OR
• Press any other button to turn the alarm off and activate
it again after 24 hours.
PROJECTION
To activate / deactivate continuous projection:
• Slide
PROJECTION switch when adaptor is connected.
To flip image by 180
°:
• While image is projected, press
SNOOZE.
To focus image:
• Turn
FOCUS wheel.
NOTE
If projection is illuminated, do not look directly into
the projector.
RESET
Press RESET to return to the default settings.
PRECAUTIONS
• Do not subject the unit to excessive force, shock, dust,
temperature or humidity
• Do not cover the ventilation holes with any items such as
newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid over
it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive materials.
• Do not tamper with the unit’s internal components. This
invalidates the warranty.
• Only use fresh batteries. Do not mix new and old batteries.
• Images shown in this manual may differ from the actual
display.
• When disposing of this product, ensure it is collected
separately for special treatment.
• Placement of this product on certain types of wood
may result in damage to its finish for which Oregon
Scientific will not be responsible. Consult the furniture
manufacturer's care instructions for information.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal
waste. Collection of such waste separately for special
treatment is necessary.
• Please note that some units are equipped with a
battery safety strip. Remove the strip from the battery
compartment before first use.
NOTE The technical specifications for this product and the
contents of the user manual are subject to change without
notice.
SPECIFICATIONS
TYPE DESCRIPTION
L x W x H
85 x 60 x 87 mm
(3.35 x 2.36 x 3.43 in)
Weight 170 g (6 oz) without battery
Power
AC/DC 3V adaptor
2 x UM-4 (AAA) 1.5 V batteries
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn more
about Oregon Scientific products. If you’re in the US and
would like to contact our Customer Care department directly,
please visit: www2.oregonscientific.com/service/support
OR
Call 1-800-853-8883.
For international inquiries, please visit:
www2.oregonscientific.com/about/international
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This
device must accept any interference received, including
interference that may cause undesired operation.
WARNING Changes or modifications not expressly
approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
NOTE This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV
technician for help.
DECLARATION OF CONFORMITY
The following information is not to be used as contact for
support or sales. Please call our customer service number
(listed on our website at www.oregonscientific.com), or on
the warranty card for this product) for all inquiries instead.
We
Name: Oregon Scientific, Inc.
Address: 19861 SW 95
th
Ave.,Tualatin,
Oregon 97062 USA
Telephone No.: 1-800-853-8883
declare that the product
Product No.: RM383PA
Product Name: Atomic Projection Clock with Ambient
Lighting
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1, 41 Man Yue St., Hung Hom,
Kowloon,
Hong Kong
is in conformity with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: 1) This device may
not cause harmful interference. 2) This device must accept
any interference received, including interference that may
cause undesired operation.
Horloge de projection atomique à
éclairage ambiant
Modèle: RM383PA
MANUEL DE L’UTILISATEUR
VUE D’ENSEMBLE
FACE AVANT (FIG 1)
1. LED de projection / Mise au point: permet d’ajuster
l’image projetée
2. Horloge avec affichage des secondes / jours de la
semaine
3. Calendrier
4. SNOOZE (Rappel d’alarme) : appuyez pour activer la
fonction snooze / active le rétro-éclairage*
5. Indicateur de réception du signal
6. Fuseau horaire
7. Mode d’affichage de l’alarme
8. Alarme 1/2 activée
*une fois l’adaptateur connect
é, le rétro-éclairage est
continuellement activé.
VUE DU BAS (FIG 2)
1. Compartiment des piles
2. PROJECTION ON / OFF : Active / désactive la projection
continue
3. / : Augmente / diminue les valeurs du réglage
sélectionné ; active / désactive le signal de réception de
l’horloge.
4. ((.)) ALARM : Visualisation du statut de l’alarme ;
réglage de l’alarme.
5. ALARM ON / OFF: permet d’activer / désactiver
l’alarme
6. MODE : modifie les réglages / l’affichage
7. Prise adaptateur CA / CC
8. RESET (REINITIALISER) : Réinitialise l’appareil aux
réglages par défaut
POUR COMMENCER
INSTALLATION DE PILES
1. Retirer le compartiment à piles.
2. Installer les piles, en faisant correspondre les polarités
(+ / -).
3. Appuyer sur
RESET après chaque changement de
piles.
HORLOGE
RÉCEPTION DE L’HORLOGE
Cet appareil est conçu pour synchroniser son horloge
automatiquement avec un signal horaire.
RM383PA:
• Signal WWVB-60: dans un rayon de 3200km (2000 miles)
de Fort Collins Colorado. Régler l’heure manuallement
pour choisir la zone horaire (Pacific, Mountain, Central
ou Eastern).
Activer / désactiver la réception du signal :
Maintenez le bouton
pour activer, ou le bouton pour
désactiver la réception du signal.
REMARQUE La réception prend 2-10 minutes. Si le signal
est faible, cela peut prendre jusqu’à 24 heures pour obtenir
un signal valable.
Indicateur de réception du signal de l’Horloge :
SIGNAL FORT SIGNAL FAIBLE AUCUN SIGNAL
REGLER MANUELLEMENT L’HORLOGE
1. Appuyez et maintenez la touche MODE pour entrer
dans les réglages.
2. Appuyez sur
MODE pour alterner entre :
3. Appuyez sur
ou pour augmenter / diminuer les
valeurs le réglage sélectionné.
4. Appuyez sur
MODE pour confirmer.
Les réglages s’effectuent dans l’ordre suivant : Fuseau
horaire, format 12/24 heures, heure, minutes, année, format
jour-mois/mois-jour, mois et langue.
RM383PA: Sélectionne la zone horaire: (P) Pacific, (E)
Eastern, (C) Central ou (M) Mountain.
REMARQUE Les options de langue sont Anglais (E),
Alemand (D), Français (F), Italien (I), et Espagnol (S).
Pour sélectionner le mode d’affichage :
Appuyez sur
MODE pour choisir entre l’horloge indiquant les
secondes et celle indiquant les jours de la semaine.
FR
