10-3

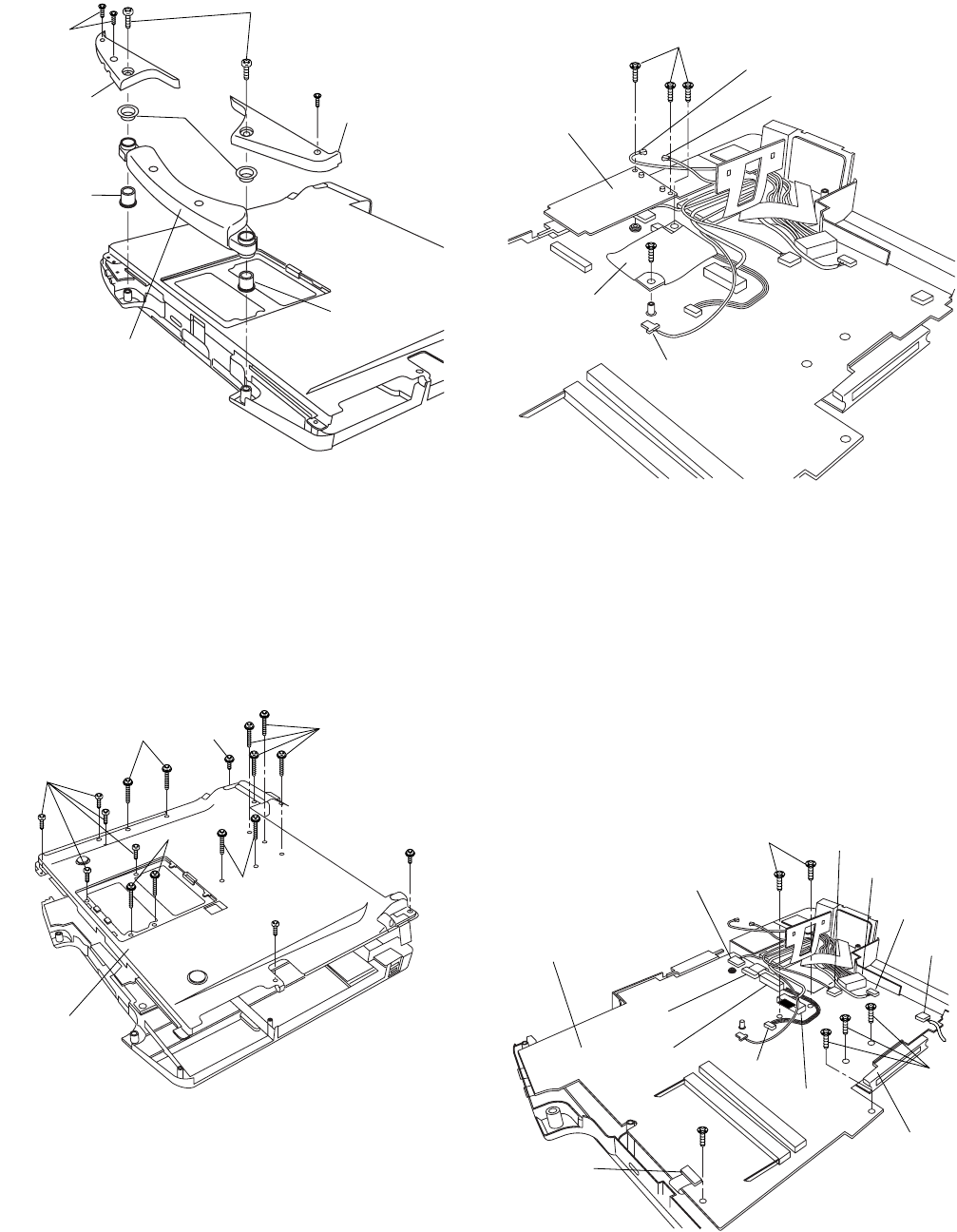

10.1.7. Removing the Handle Ass'y
1. Remove the two Screws <N2>.
2. Remove the three Screws <N4>, and remove the Handle
Cover L and R.
3. Remove the two Sleeves A, Handle Ass'y and two
Sleeves B.
Screws <N2>: DRHM4+10FKS
Screws <N4>: DRSB2+6FKL
10.1.8. Removing the Bottom Case
1. Remove the six Screws <N5>.
2. Remove the ten Screws <N7>.
3. Remove the two Screws <N8>.
4. Open the Lid Rubbers and remove the Bottom Cover.
Screws <N5>: DXSB2+6FNL
Screws <N7>: DXYN2+J16FNL
Screws <N8>: DXYN2+J8FNL
10.1.9. Removing the Wireless Module and
MDC Module
1. Remove the two Antenna Cables from the two Connec-
tors.
• Antenna Cable (Black): MAIN Connector
• Antenna Cable (Gray): AUX Connector
2. Remove the two Screws <N9>.
3. Remove the Wireless Module.
4. Remove the two Screws <N9>.
5. Disconnect the Modem Cable from the Connector.
6. Remove the MDC Module.
Screws <N9>: DFHE5025XA
10.1.10. Removing the Main PCB
Handle Cover R
Handle Cover L
Handle Ass’y
Sleeves B
Sleeves A
Sleeves A
<N4>
<N4>
<N2>
<N7>
<N7>
<N7>
<N8>
<N8>
<N5>
<N5>
Bottom Cover
<N7>
Antenna Cable (Black)
Antenna Cable (Gray)
<N9>
<N9>
MDC Module
Wireless Module
Modem Cable
CN6
CN7
CN24
CN19
CN28
CN21
CN802
CN18
CN15
CN26
<N9>
<N9>
Main PCB
MP Guide
