TOSHIBA 6F3A4508
- 35 -

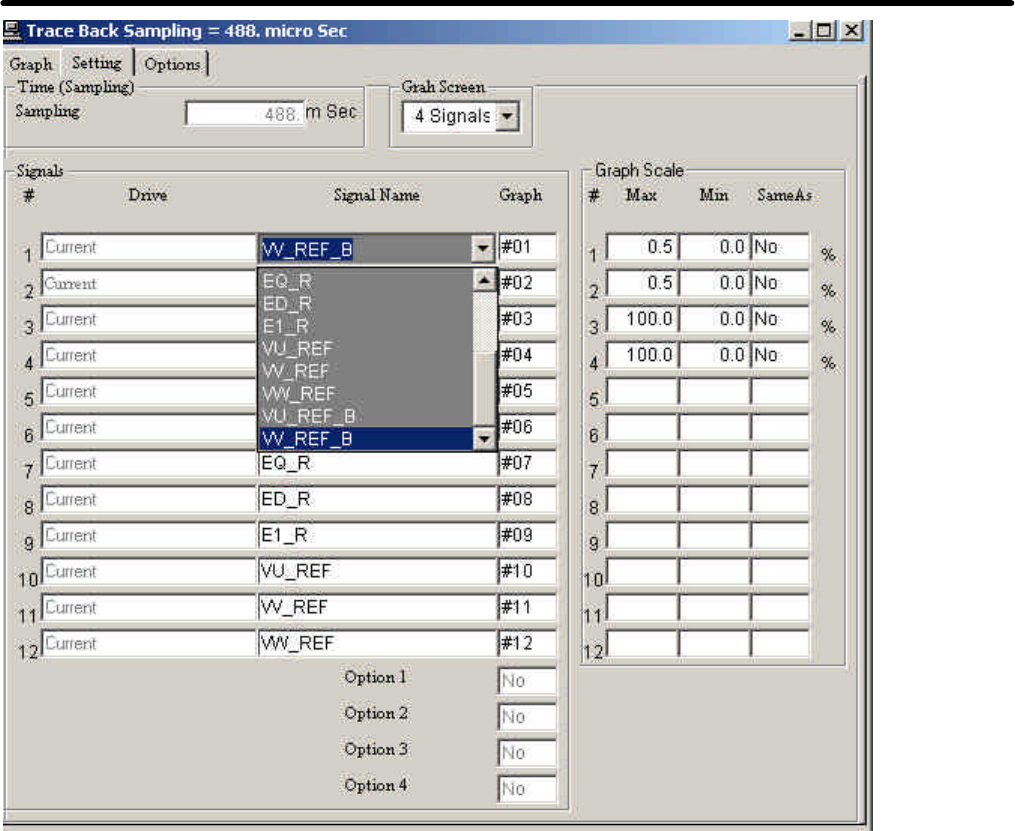

Figure 6.5.7 Select Signal
The names of signals that can be displayed as graph appears as a list. Click one of the signal
names in the list.
Then double click to confirm the signal name.
The number on the right of the signal name is the graph no. Specify the display order from top
of the window for the selected signal. If more than one signal are set to display in the graph with
the same number, multiple signals are displayed.
3) Set the scale of the graph on the left side.
Set each graph to Maximum or Minimum.
To set to the same scale as another graph, specify its graph number in the SameAs field.
