4.15 Camera module LVDS cable 4 Replacement Procedures
NB250/NB255 Maintenance Manual 4-45
3. Carefully peel up the LVDS cable, starting from the top, as shown in Figure 4.34. Once
the LVDS cable has been peeled up disconnect it from the LCD panel, taking care not to
damage the connector. Remove the LVDS cable.

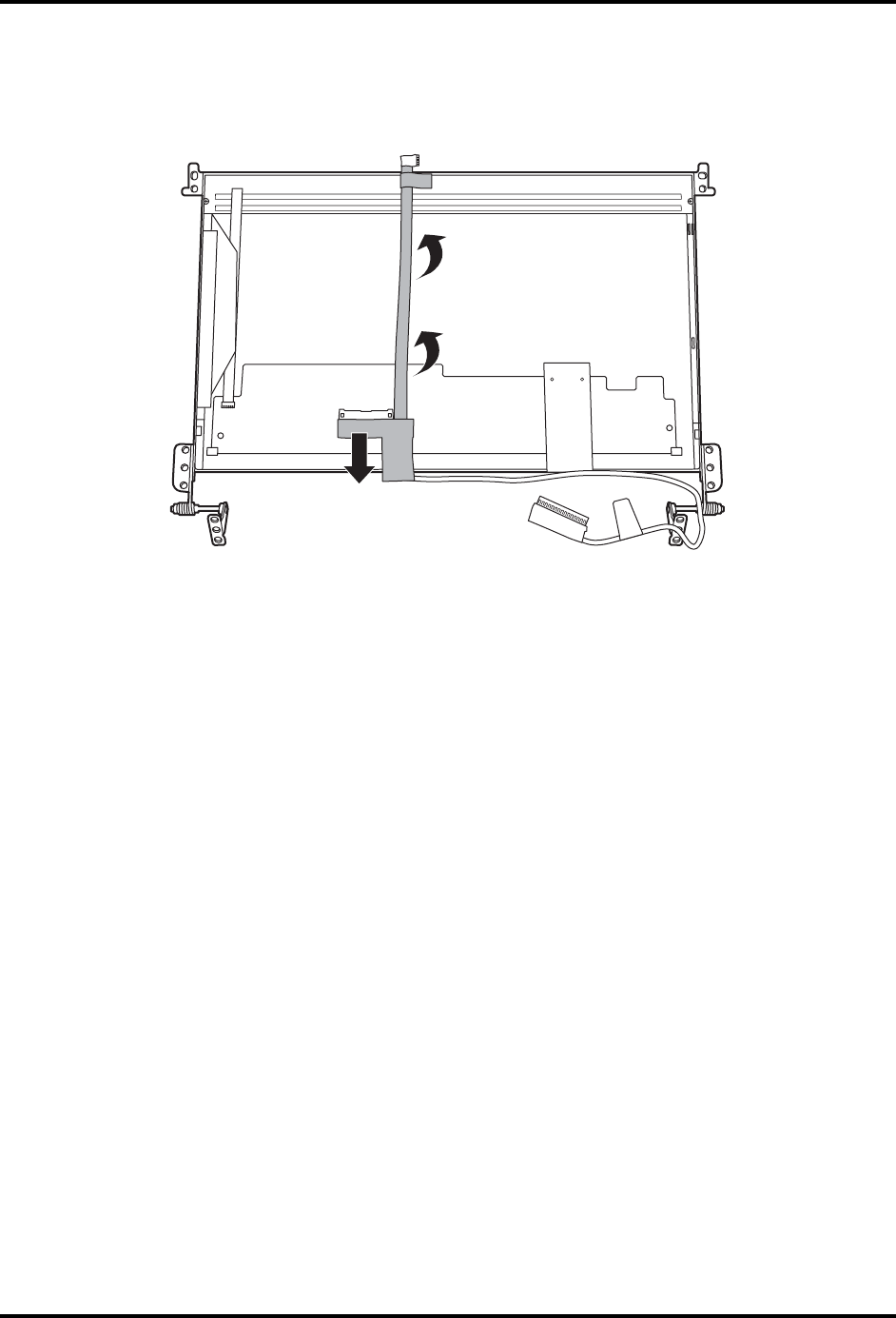

Figure 4.34 Removing the LVDS cable from the LCD module
