This chapter identifies the various components of your computer. Become
familiar with each component before you operate the computer.
Front with the display closed

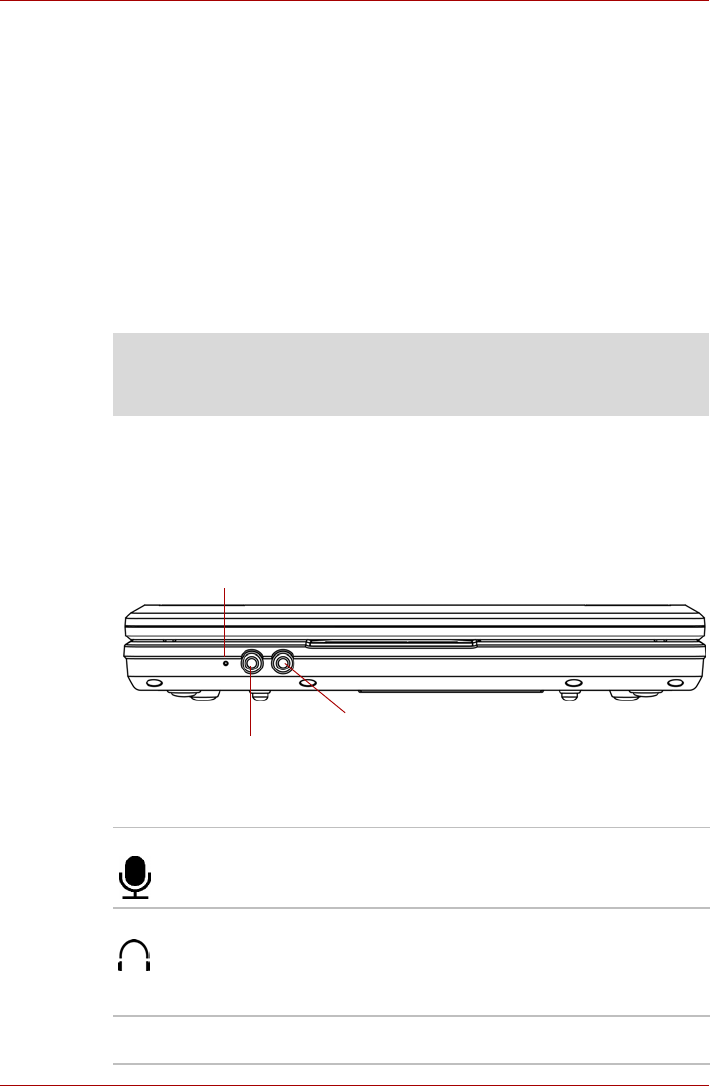

Figure below shows the computer’s front with its display panel in the closed
position.
Front of the computer with display closed
Non-applicable icons*8
For more information regarding Non-applicable icons, please refer to the
Disclaimer section in Chapter 10 or click the *8 above.
Microphone jack A standard 3.5 mm mini microphone jack enables
connection of a microphone or other device for
audio input.
Headphone jack A standard 3.5 mm mini headphone jack enables
connection of a stereo headphone (16 ohm
minimum) or other device for audio output. When
you connect headphones, the internal speaker is
automatically disabled.
Built-in
microphone
Record monaural sounds into your applications.
(Provided with some models)
Headphone jack
Microphone jack
Built-in microphone
