23D-Link DAP-2360 User Manual
Section 3 - Conguration

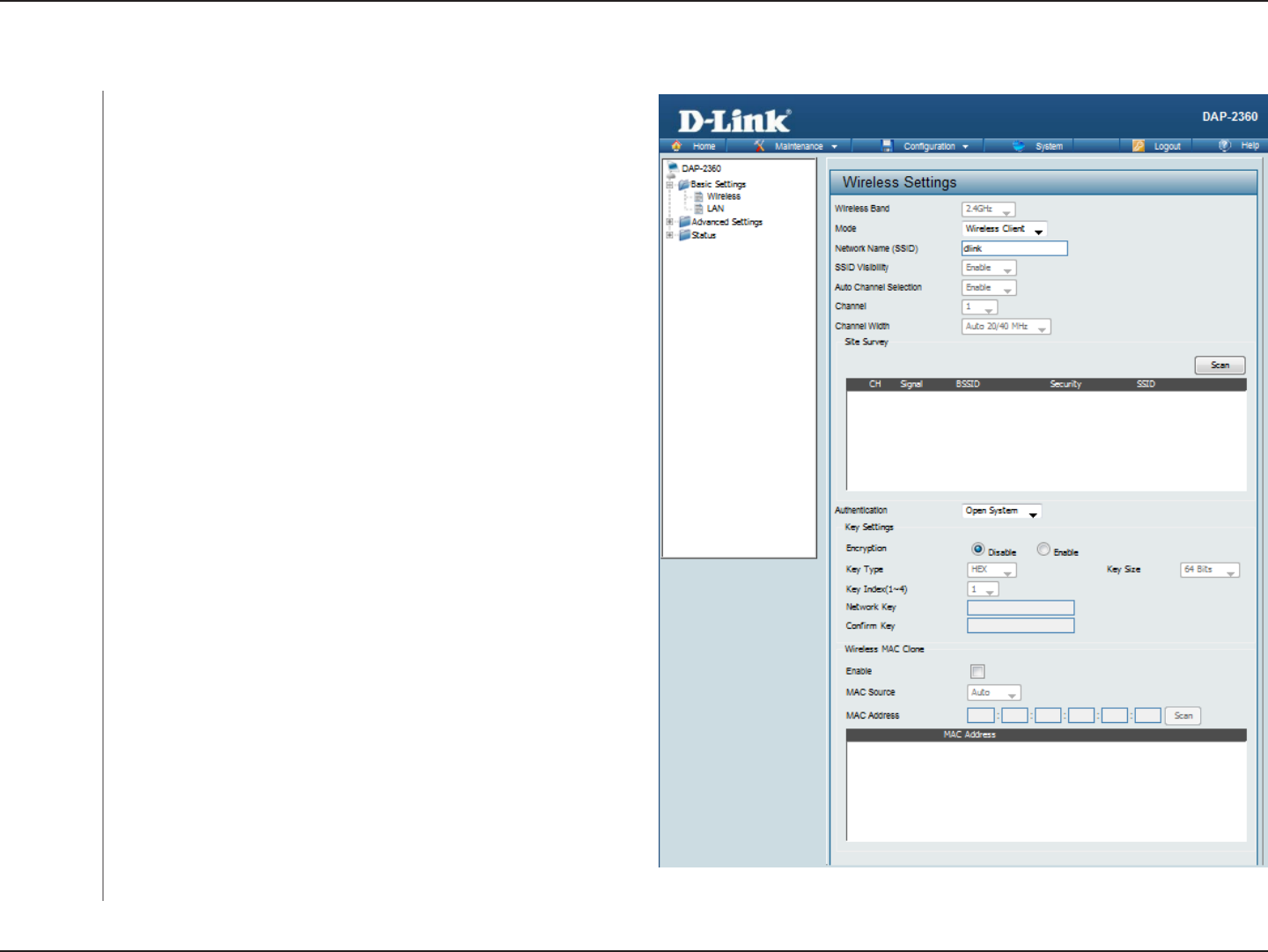

Wireless Client mode
Mode:
Network Name
(SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Channel Width:
Site Survey:
Authentication:
Enable:
MAC Source:
MAC Address:
Wireless Band:
Select 2.4GHz from the drop-down menu.
Wireless Client is selected from the drop-down menu.
Service Set Identier (SSID) is the name designated for a specic
wireless local area network (WLAN). The SSID’s factory default
setting is dlink. The SSID can be easily changed to connect to an
existing wireless network.
This option is unavailable in Wireless Client mode.
Enabling this feature automatically selects the channel that
will provide the best wireless performance. This feature is not
supported in Wireless Client mode.
The channel used will be displayed, and matches the AP that the
DAP-2360 is connected to when set to Wireless Client mode.
Use the drop-down menu to choose 20 MHz or Auto 20/40 MHz.
Click on the Scan button to search for available wireless networks,
then click on the available network that you want to connect with.
Use the drop-down menu to choose Open System or
WPA-Personal.
Select Open System to communicate the key across the network.
Select WPA-Personal to secure your network using a password
and dynamic key changes. No RADIUS server is required.
Check to enable clone MAC. This feature will allow you to change
the MAC address of the access point to the MAC address of a
client.
Select the MAC source from the drop-down menu.
Enter the MAC address that you would like to assign to the access
point.
