GXV3615 IP Camera Series
Firmware 1.0.4.8 Page 12 of 28
Grandstream Networks, Inc. 11 /29/10
GXV3615 Series Home Web Page

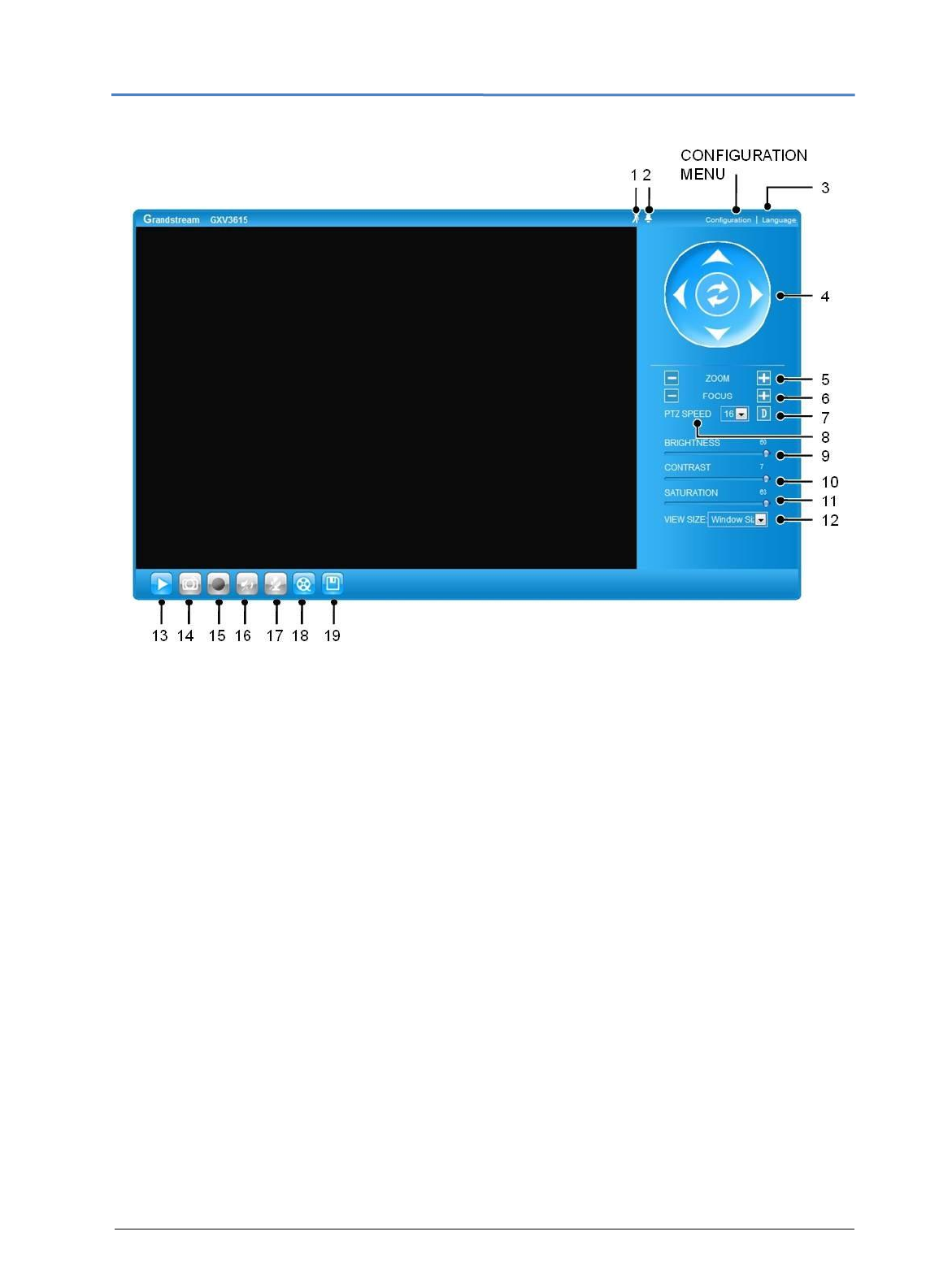

Figure1: Home web page of GXV3615
Items on GXV3615 Home Page
1
Motion Detection
If the motion detection alarm is triggered, the indicator will flash
red. Click on the indicator to turn off the alarm.
2
Alarm Event
If an alarm event is triggered, the indicator will flash red. Click
on the indicator to turn off the alarm.
3
Language
Allow to switch between English and Chinese
4
Control Console
PTZ Console controller. PTZ device needs to be connected.
5
ZOOM
NOTE: GXV3615 does not support zoom
6
FOCUS
Adjusts the focus of images.
7
Default
Click this option to reset the video brightness, contrast, and
saturation to their factory default configuration.
8
SPEED
Adjusts the rotation speed of the console.
9
BRIGHTNESS
Adjusts the image brightness.
10
CONTRAST
Adjusts the image contrast.
11
SATURATION
Adjusts the image saturation.
12
13
View Size
Play
Resize the image to fit into the window panel in the home
scream.
Plays/Stops the video.
