Actiontec DSL Modem User Manual
23

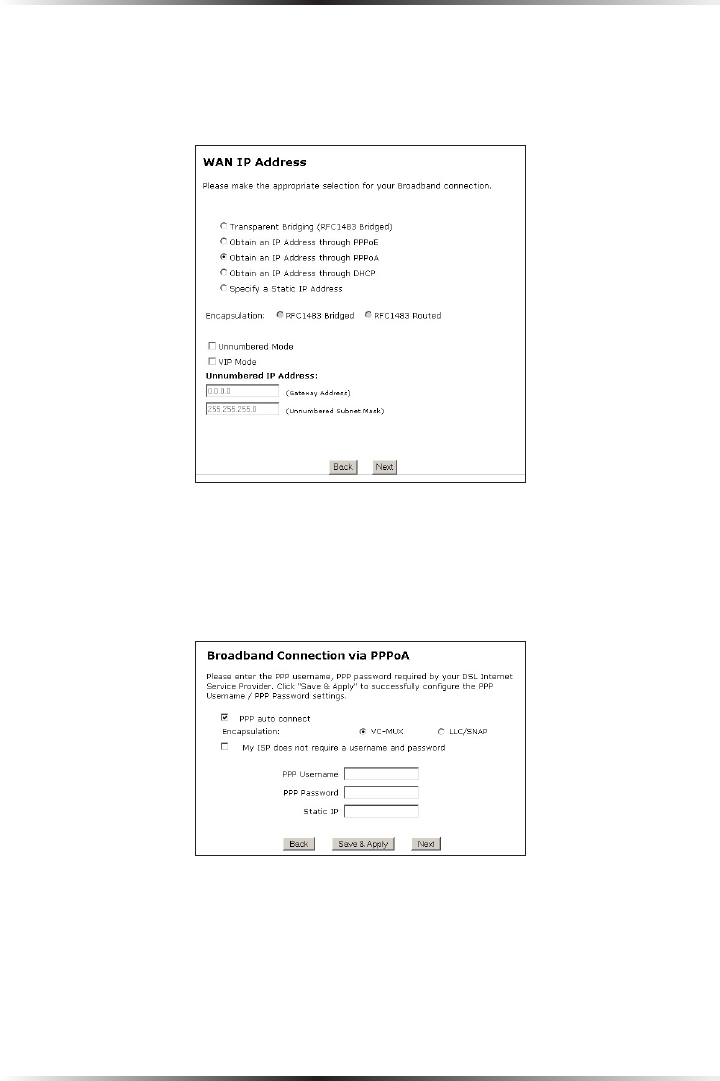

Chapter 4 Setting Up Static IP
6. Select “Obtain an IP Address through PPPoA,” select “Unnumbered Mode,”
then enter the gateway and subnet mask addresses assigned by the ISP in the
“Gateway Address” and “Unnumbered Subnet Mask” text boxes, respectively.
These addresses should be included on the ISP worksheet. Click Next.
7. A window appears, stating the Modem needs to rebooted. Reboot the Modem.
8. After the Modem reboots, return to the the “Broadband Connection via
PPPoA” screen and enter the user name and password assigned by the ISP in
the appropriate text boxes, then click Next four times.
