Alcatel-Lucent 7330 ISAM FTTN
Enabling Efficient Growth
THE ALCATEL-LUCENT 7330 ISAM FTTN
EXPANSION SHELF AND SEALED EXPANSION MODULE
The modularity of the Alcatel-Lucent 7330 ISAM FTTN expansion shelf (ES)
enables your efficient growth of services and supports up to 192 DSL lines per
shelf (as shown in Figure 4). The same shelf, which is used for the host is also
used for the ES. The expansion shelves can be collocated with a host shelf at
a common site, or remotely located with the host and expansion shelf at separate
sites. In either scenario, the Alcatel-Lucent 7330 ISAM FTTN ES uses GigE
links to connect to the host shelf.
For flexibility and convenience, the Alcatel-Lucent 7330 ISAM sealed expan -
sion modules (SEMs) (Figure 4) are sealed enclosures that can be mounted
directly on the outside of a cabinet, on a pole or in a pedestal, or hung on a
strand. There are two versions: VDSL and ADSL. The VDSL version has 24
VDSL ports, and the ADSL version has 48 ports. Based on the design of the
line terminations of the Alcatel-Lucent 7330 ISAM FTTN host shelf, both
versions have features and capabilities that are similar to the line cards on the
Alcatel-Lucent 7330 host and expansion shelves (See Figure 2).
7330 SEM
Expansion Interface
xDSL Line Termination
Network
Processor
...
xDSL Applique
...
GigE Uplink
SEM xDSL Capacity
VDSL: N=1-24
ADSL: N=1-48
Environmentally-sealed enclosure
POTS
7330 Host
GigE
Link
Power
xDSL 1
Spl 2xDSL 2
Spl nxDSL n
Spl 1
PSTN

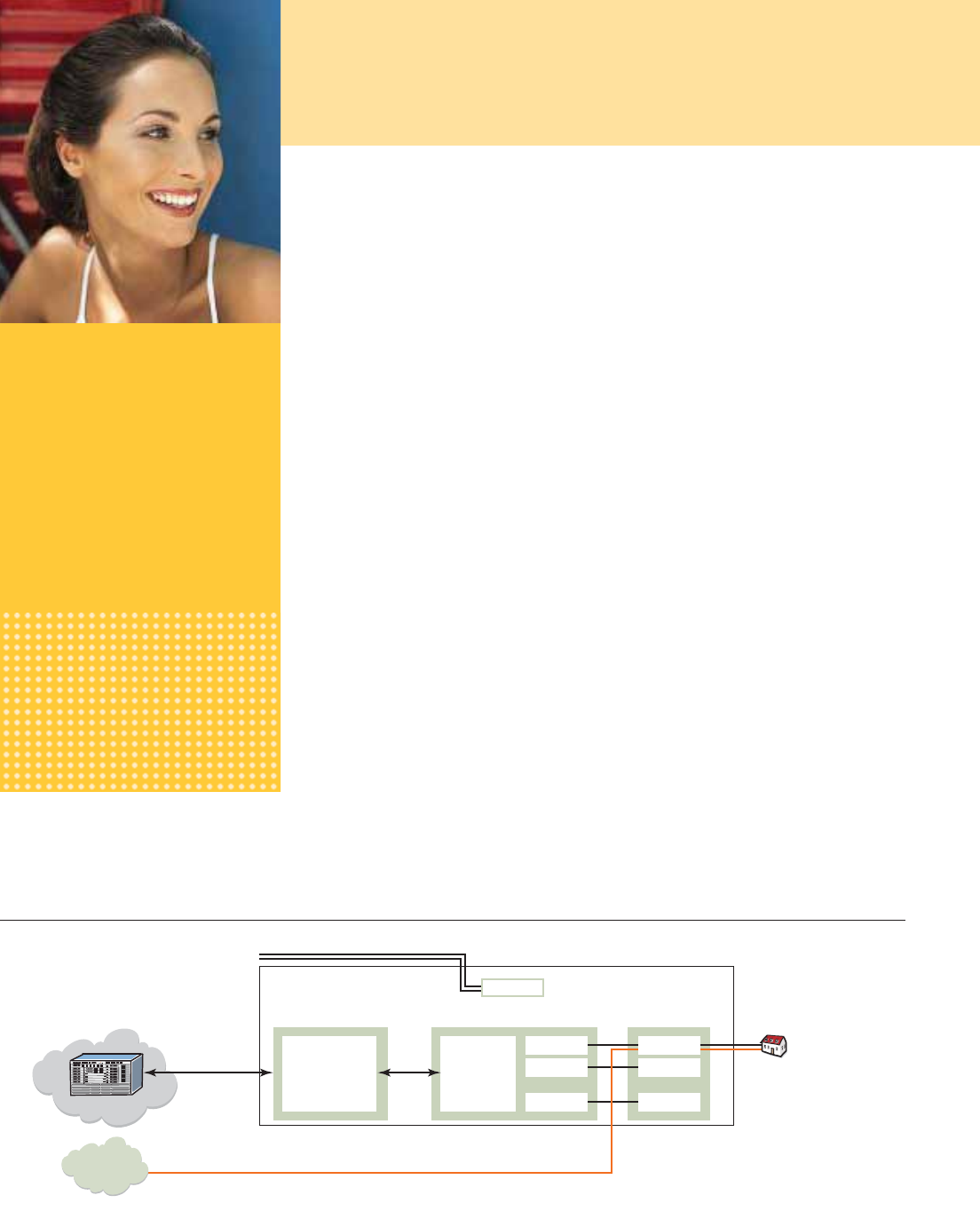

Figure 4. Sealed Expansion Module Architecture
