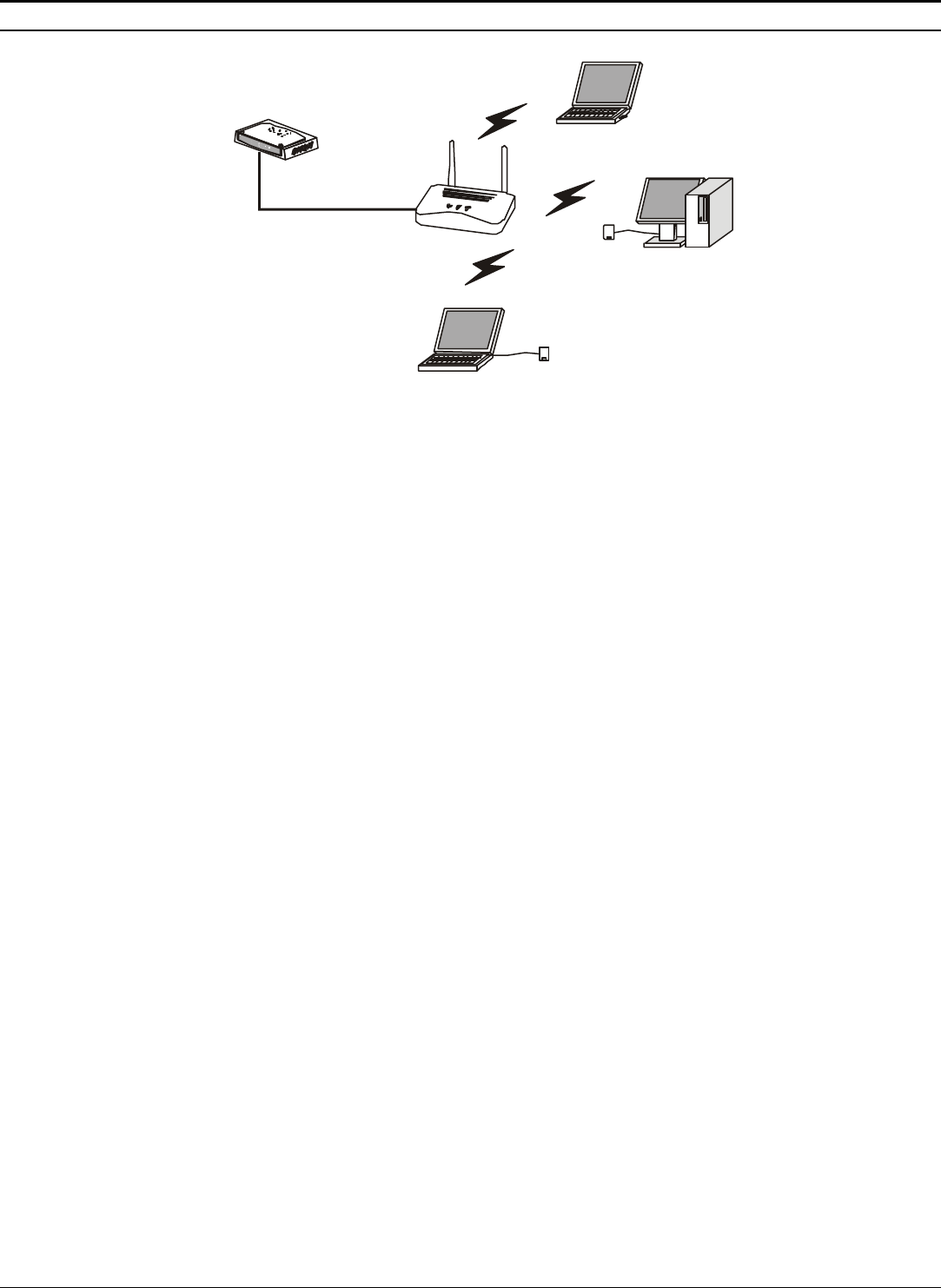

Hardware connections
Switch/Hub
PC
Notebook
Notebook
P
O
W
ER
S
YST
EM
LAN
12
34
Lin
k/A
C
T
10
0M
Ethernet port
Wireless LAN Networking
Connecting to your office LAN (Switch or Hub)
1. Plug one end of the RJ45 network cable to the Switch/Hub port,
2. Plug the other end of the RJ45 network cable to the Wireless Access Point.
3.
Check the installation
The control LEDs of the Access Point are clearly visible and the status of the network link can be
seen instantly:
1. With the power source on, once the device is connected, the Power, LAN and WLAN port link
LEDs of the unit will light up indicating normal status.
2. If the LAN Port’s Link indicator does not light up then check to make sure that the cable has been
inserted correctly.
