Quick Start Guide
Modero Wireless Touch Panel (Firmware version G4)
For more detailed installation, configuration, programming, file transfer, and
operating instructions refer to the MVP-7500 and MVP-8400 Modero
ViewPoint Touch Panels Instruction Manual, available on-line at
Verify the NetLinx Master Firmware is build 117 or greater for the ME260 and
NI-Series Controllers. Verify the TPDesign4 program being used is Version 2.2
or higher. Earlier versions of the Master firmware and TPD4 software are
incompatible with these panels.
The AMX MVP-7500 panel (FG5965-01) uses an internal wireless compact flash
card to communicate with a NetLinx Master via an off-the-shelf 802.11b Wireless
Access Point. MVP units utilize a 7.5" Color Passive LCD to display a 640 x 480
pixel image using over 4000 colors and features programmable firmware that
can be upgraded via either the wireless card or the mini-USB port. The
MVP-7500 panel also features nine programmable external pushbuttons and two
sets of display LEDs. These panels are configured to operate on a standard
802.11b wireless network. On the 4 available IR channels, this panel utilizes both
AMX IR frequencies (38 KHz or 455 KHz) and 2 additional user-defined IR
Connections and Wiring
The PS4.4 Power Supply (with barrel connector) provides power to the
MVP-7500 panel either directly (via the power connector located on the lower
right-side of the panel) or indirectly (by routing incoming power through the
Docking Station’s MVP Interface Connector).
Once the MVP is connected to a docking station; charging priority is
first given to any MVP-BP battery packs found within the MVP-7500
and then to any other batteries inserted into the docking station’s
battery charging compartments.
USB Connection
This panel uses a standard version 1.1 Type A to Mini-B 5-Wire USB cable to
provide communication between the touch panel and the PC. This
communication is used to transfer IR data, firmware KIT files, and TPD4 touch
panel files.
WARNING: Although firmware upgrades can be done over wireless Ethernet; it
is strongly recommended that firmware KIT files be transferred over a direct USB
connection and only when the panel is connected to a power supply. If battery
power or wireless connection fails during a firmware upgrade, the panel flash file
system may become corrupted.

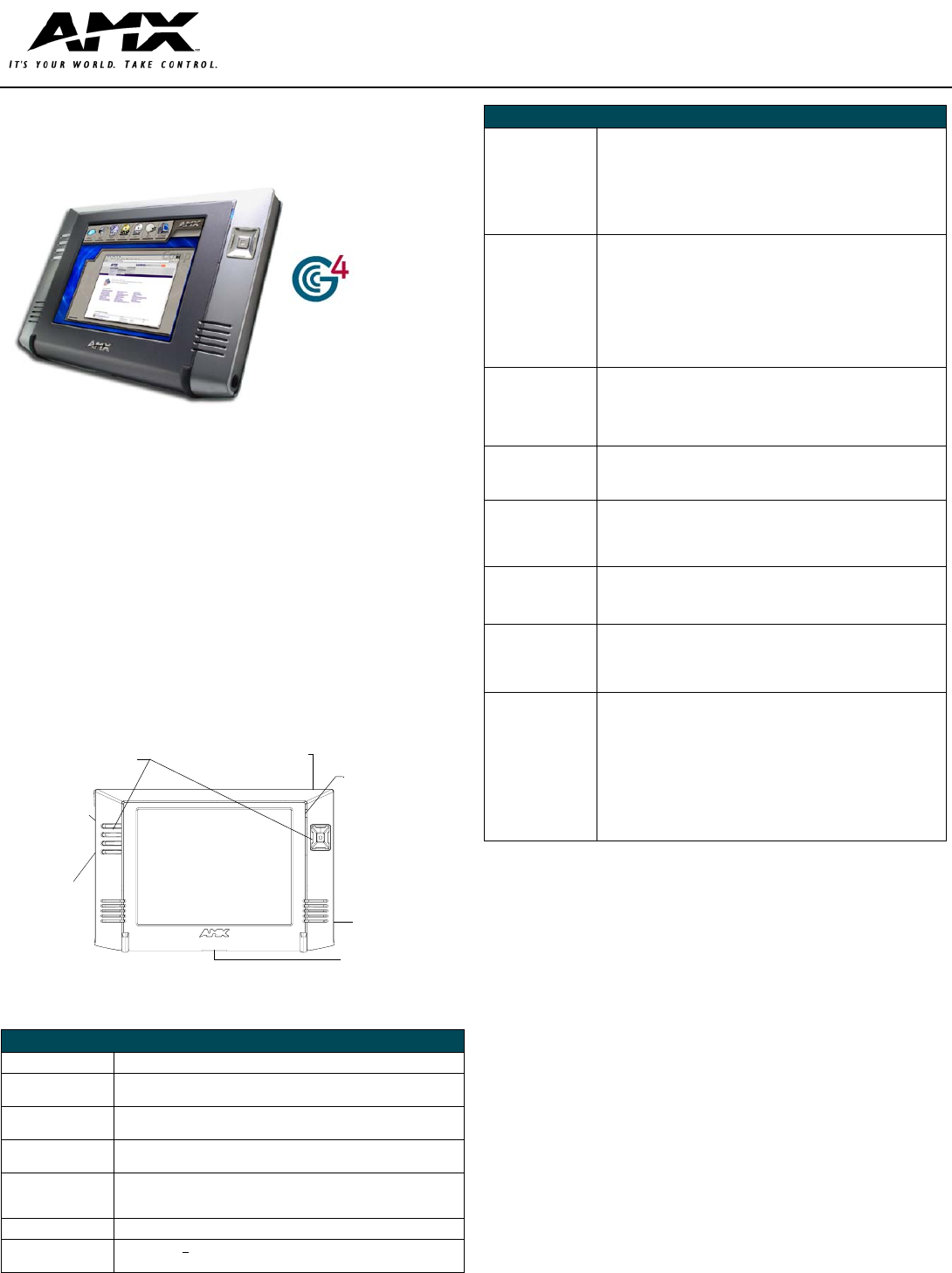

FIG. 1 MVP-7500 Wireless Touch Panel (FG5965-01)
FIG. 2 MVP-7500 Touch Panel component locations
MVP-7500 Panels Specifications
Dimensions (HWD): 7.09" x 10.47" x 1.47" (18.00 cm x 26.60 cm x 3.73 cm)
Power: Full draw: 1.0 A @ 12 VDC
Full On and charging up to two MVP-BP batteries: 3.0 A @ 12 VDC
Battery Duration:
(per battery)
4 hours Normal use (25% On state, 25% Standby, and 50% Sleep).
2 hours Continuous use (continuous On state).
Memory: 64 MB SDRAM
64 MB Compact Flash (upgradable to 1 GB) - factory programmed
Weight: Stand-alone panel: 1.85 lbs (0.84 kg)
Panel with one battery: 2.25 lbs (1.02 kg)
Panel with two batteries: 2.65 lbs (1.20 kg)
Screen Resolution: 640 x 480 pixels (HV) @ 60 Hz frame frequency
Viewing Angle: Horizontal: +
55° (left and right) from center
Vertical: + 25° (up from center) and -35° (down from center)
Docking station
Mini-USB connector
PWR connector
interface connector
User programmable
pushbuttons (9)
User programmable
status LED
Stylus LED
(side panel)
(front panel)
(fits within
slot on side
MVP-7500 Panels Specifications (Cont.)
Panel LCD
Panel type: TFT Color Passive-Matrix
Aspect ratio: 4 x 3
Brightness: 120 cd/m
Channel transparency: 8-bit Alpha blending
Contrast ratio: 20:1
Display colors: 4096 colors (12-bit color depth)
Dot/pixel pitch: 0.23 mm
Screen Resolution: 640 x 480 pixels (HV) @ 60 Hz frame frequency
Docking Station Interface Connector: Metallic strip connector located
on the bottom of the MVP provides communication and power between
the MVP and the optional docking station.
LEDs: Two sets of NetLinx programmable LEDs (support On, Off,
and Blink).
Mini-USB Connector: 5-pin mini-USB connector used for programming
and touch panel file transfer to and from the PC.
Stylus slot: Illuminated slot where the included stylus can be stored,
located on the left side of the MVP.
Power Connector: 6mm barrel-style power jack - accepts the power
cord from the PS4.4 power supply (included).
Wireless Interface card: Provides 802.11b (Type I) wireless connectivity
between the panel and a Wireless Access Point (WAP).
IR Emitters: Transmit IR over 20 feet (6.10 m) from the panel.
Internal Buzzer: Emits a Piezo electric tone.
Battery Compartment: Houses up to two MVP-BP battery packs (one
MVP-BP is included with the panel).
External Buttons: Nine external programmable pushbuttons (four located on the left of the
LCD and five located on the right)
All of these buttons are user-programmable to activate other
commands (context-sensitive for each page).
Power Modes: ON: Panel is fully functional.
STANDBY: Panel uses low power, the LCD/backlight is shutdown,
LEDs still function. Panel resumes the ON mode in ~ 1 second.
OFF: On-board programs not running, touch screen still powered, LED
not functional. Panel resumes the ON mode in ~ 30 seconds.
Operating Temperature: 0° C (32° F) to 40° C (104° F)
Operating Humidity: 20% - 85% RH
Storage Temperature: -20° C (-4° F) to 60° C (140° F)
Storage Humidity: 5% - 85% RH
MVP-7500 Modero Wireless Touch Panel (Firmware version G4)
Quick Start Guide (93-5965-01)
MVP-BP battery (FG5965-20)
PS4.4 Power Supply (13.5 VDC) (FG423-44)
CB-MVPWDS Conduit Box (FG037-10)
CC-USB (Type A) to Mini-B 5-Wire programming cable (FG10-5965)
MVP-BP battery (FG5965-20) (additional/spare)
MVP-KS Kickstand (FG5965-12)
MVP-STYLUS three pack (FG5965-30)
MVP-TDS Table Top Docking Station (FG5965-10)
MVP-WDS Wall/Flush Mount Docking Station (FG5965-11)
Upgrade Compact Flash (factory programmed with firmware):
NXA-CFSP128M - 128 MB compact flash card (FG2116-36)
NXA-CFSP256M - 256 MB compact flash card (FG2116-37)
NXA-CFSP512M - 512 MB compact flash card (FG2116-38)
NXA-CFSP1GB - 1 GB compact flash card (FG2116-39)
