ASUS CUW User’s Manual120
7. APPENDIX
7. APPENDIX
Modem Riser
7.2.4 Software Setup in Windows 98
The Modem Riser supports the Plug and Play feature. It allows your computer to
automatically set the optimal configurations for the MR and communication soft-
ware. Follow the procedure below to install the modem driver.

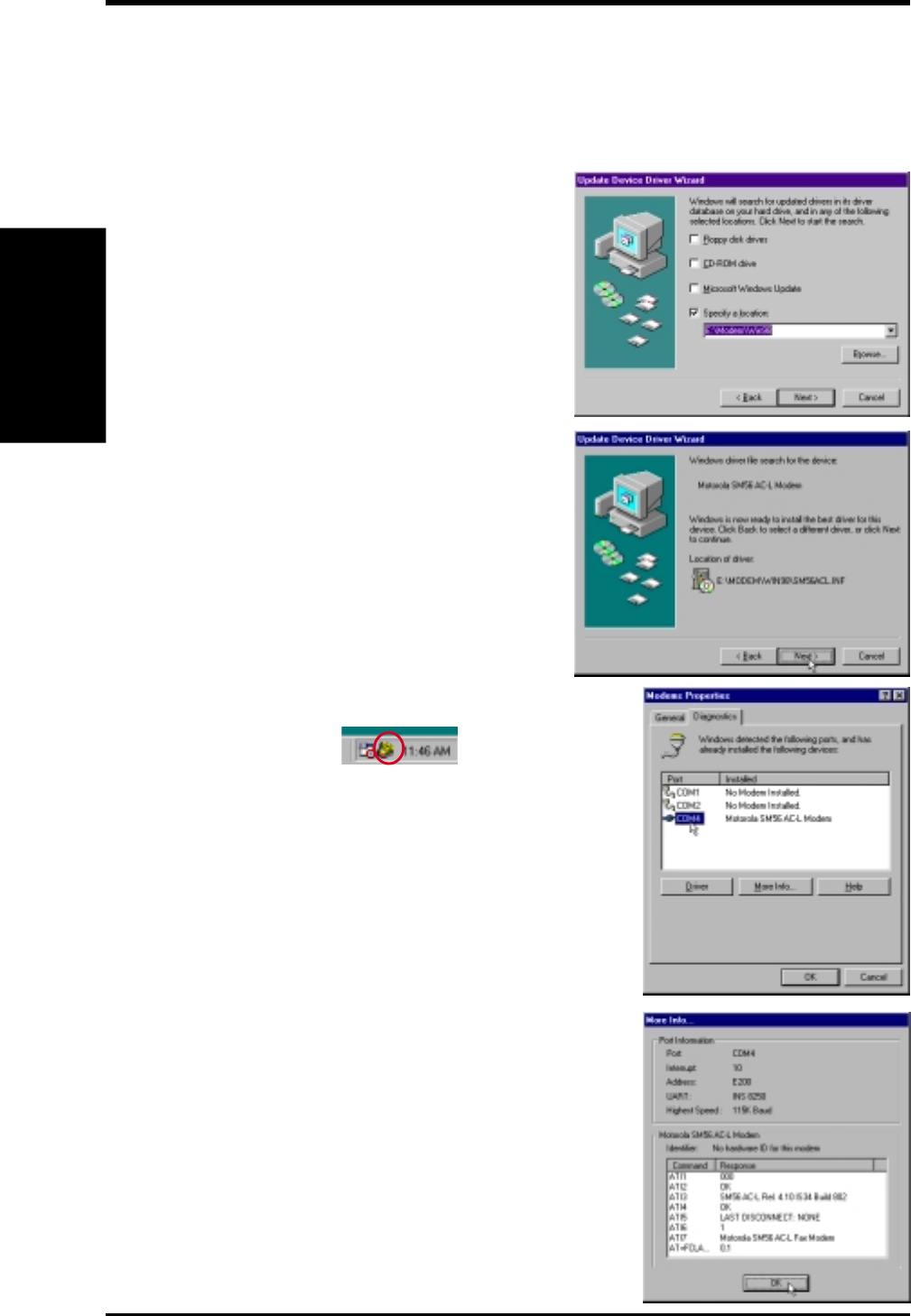

1. Power ON the computer after the hard-
ware installation is completed.
2. Windows 98 will automatically detect the
modem and display a “PCI Card” mes-
sage under “Add New Hardware Found”.
3. Select Search for the best driver for
your device and click Next.
4. Insert the Support CD that came with
your motherboard into your CD-ROM
drive. Enter the path E:\Modem\Win98
(assuming that your CD-ROM drive is
drive E:) for the MR driver.
5. After the driver is located, click Next
and then click Finish.
6. Restart your computer. Double click the
modem icon at the bottom-right corner
of the window.
7. Click the Settings tab. Select your coun-
try and language. Click OK.
8. Click Start, point to Settings, click
Control Panel, double click Modems,
click the General tab, and click
Motorala SM56 AC-L Modem.
9. Click Diagnostic and then click the
designated COM port as shown.
10. Click More Info.... If the computer sys-
tem successfully communicates with the
modem, responses will be displayed as
shown.
