ASUS P4V533-MX motherboard user guide
1-9
1.7 Motherboard installation
Before you install the motherboard, study the configuration of your chassis to
ensure that the motherboard fits into it. The motherboard uses the micro-ATX form
factor that measures 9.6 inches x 8.0 inches (24.5 cm x 20.5 cm).
Do not overtighten the screws! Doing so may damage the motherboard.
1.7.1 Placement direction
When installing the motherboard, make sure that you place it into the chassis in
the correct orientation. The edge with external ports goes to the rear part of the
chassis as indicated in the image below.

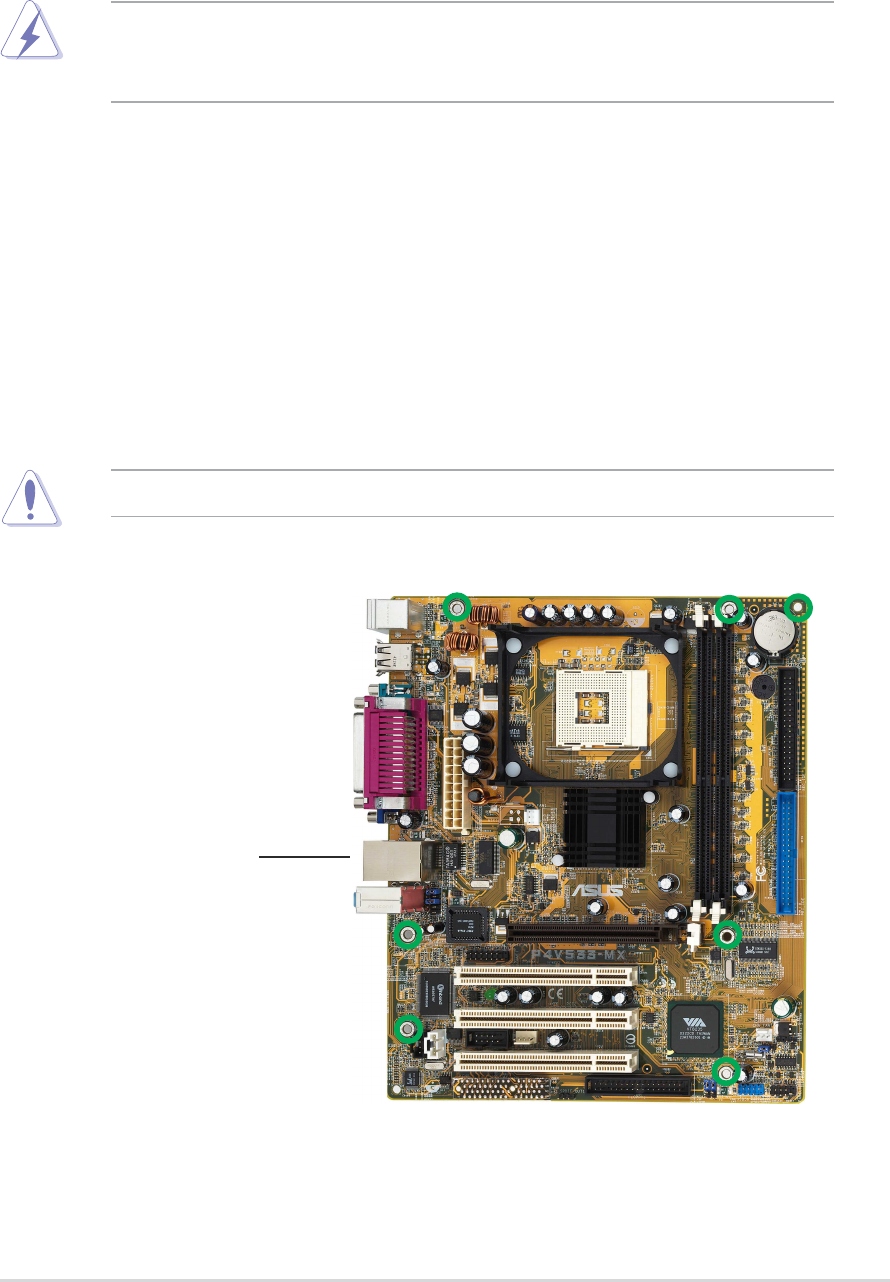

1.7.2 Screw holes
Place seven (7) screws into the holes indicated by circles to secure the
motherboard to the chassis.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause you physical injury and damage
motherboard components.
Place this side towards
the rear of the chassis
