ASUS CUV4X-C User’s Manual 37
3. HARDWARE SETUP
Connectors
3. H/W SETUP

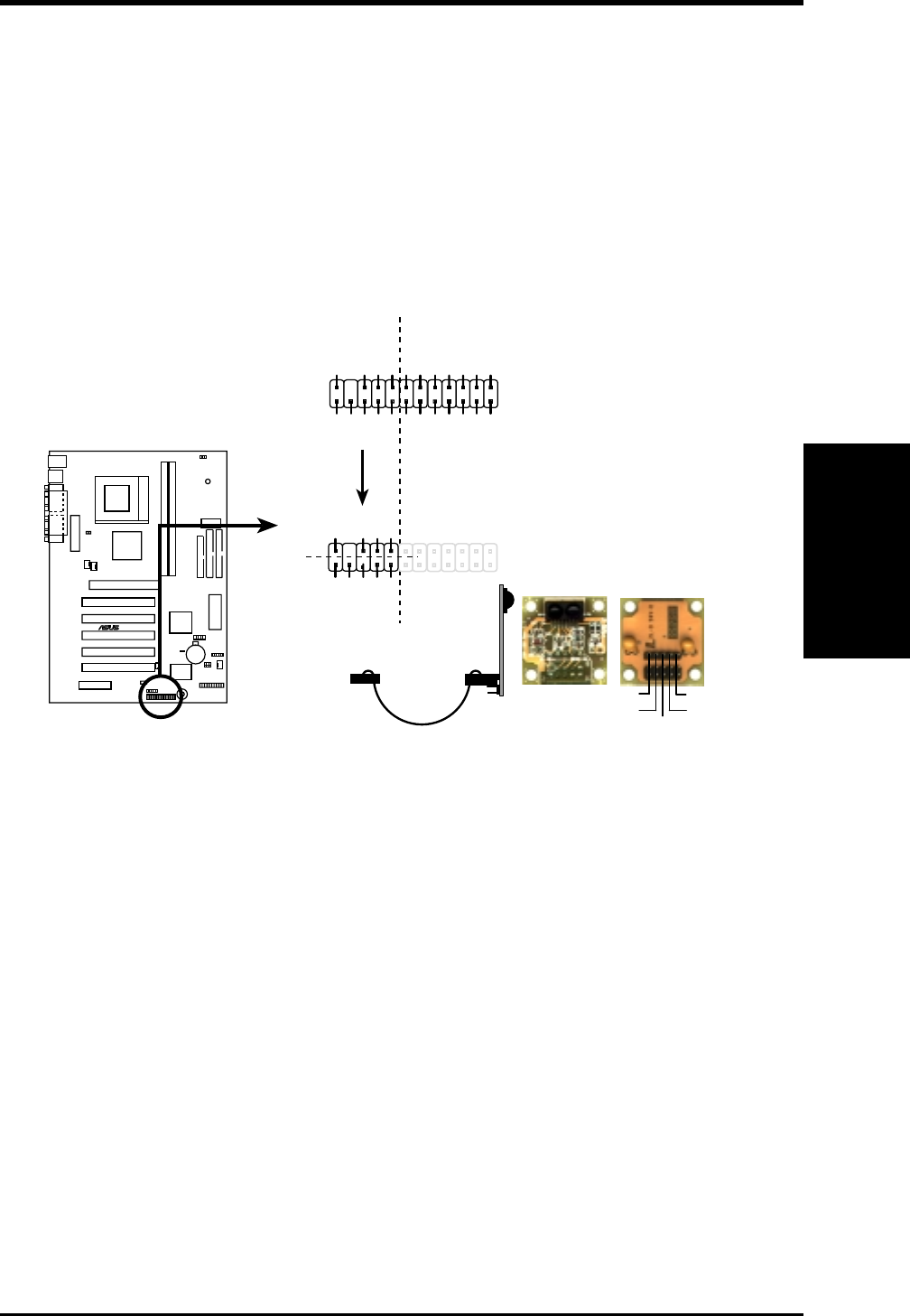

12) ASUS iPanel Connector (12-1 pin AFPANEL)
This connector allows you to connect an optional ASUS iPanel, an easy-to-access
drive bay with front I/O ports, status LEDs, and space reserved for a hard disk
drive. If you are not using an ASUS iPanel, you can connect an optional wireless
transmitting and receiving infrared module to the SIR connector, or an optional
consumer infrared connector set to the CIR or SIR connectors for both wireless
transmitting and remote control functions through one external infrared module.
CUV4X-C Front Panel Connectors
®
CUV4X-C
+5VSB
NC
CHASSIS#
+5 V
PCIRST#
GND
CIRRX
EXTSMI#
MLED-
NC
BATT
NC
SMBDATA
GND
+3VSB
IRRX
IRTX
LOCKKEY
NC
NC
+5V SMBCLK
AFPANEL
Standard Infrared (SIR)
Front View Back View
+5V
IRTX
IRRX
(NC)
GND
+5VSB
NC
+5 V
GND
CIRRX
NC
GND
IRRX
IRTX
CIR
SIR
IR_CON
