Page 10
724-746-5500 | blackbox.com
Chapter 2: Overview
6 7 8 9 10

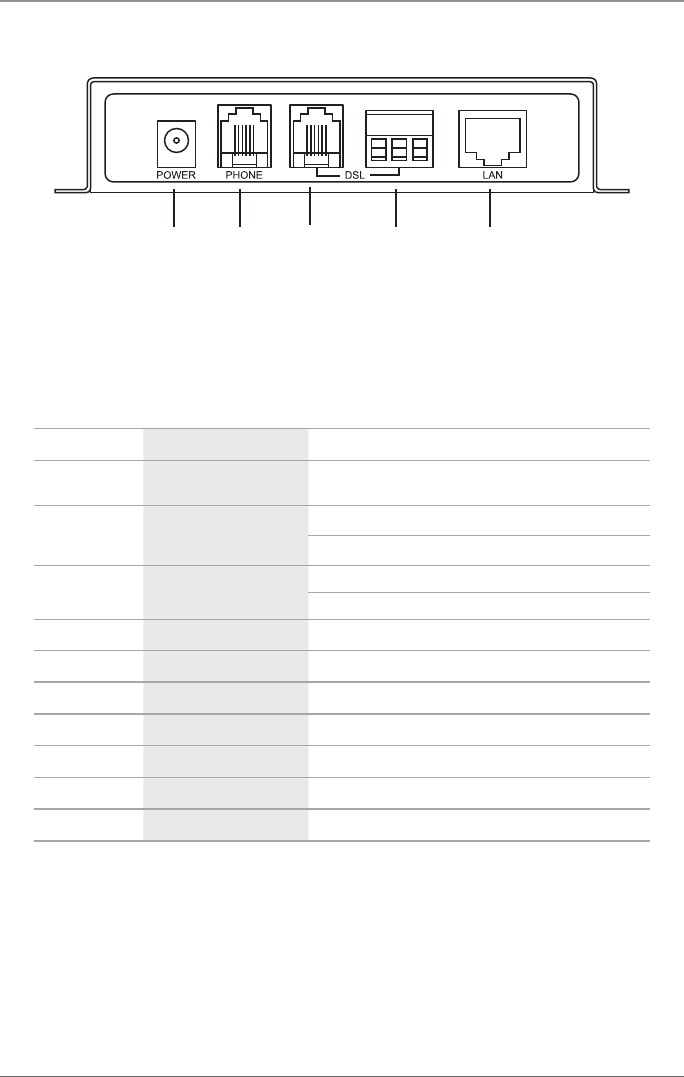

Figure 2-2. Back panel.
Table 2-1. 10/100BASE-T Ethernet Extender components.
Number Component Description
1 Power LED Lights green when power is on
2 LAN LED
Lights green when LAN is connected
Flashing green when LAN is active
3 DSL LED
Lights green when VDSL is connected
Flashing green when VDSL is in line handshakking
4 M/S LED Selects master or slave (OFF = Master; ON = Slave)
5 4-position DIP switch Used for configuration settings: See Table 3-1
6 Barrel connector Links to power
7 RJ-11 connector Links to telephone line
8 RJ-11 connector Links to VDSL interface
9 3-pin terminal block Connects to ring/tip/frame ground
10 RJ-45 connector Connects to LAN interface
