APPENDIX D:DDC modes
APPENDIX D. DDC Modes

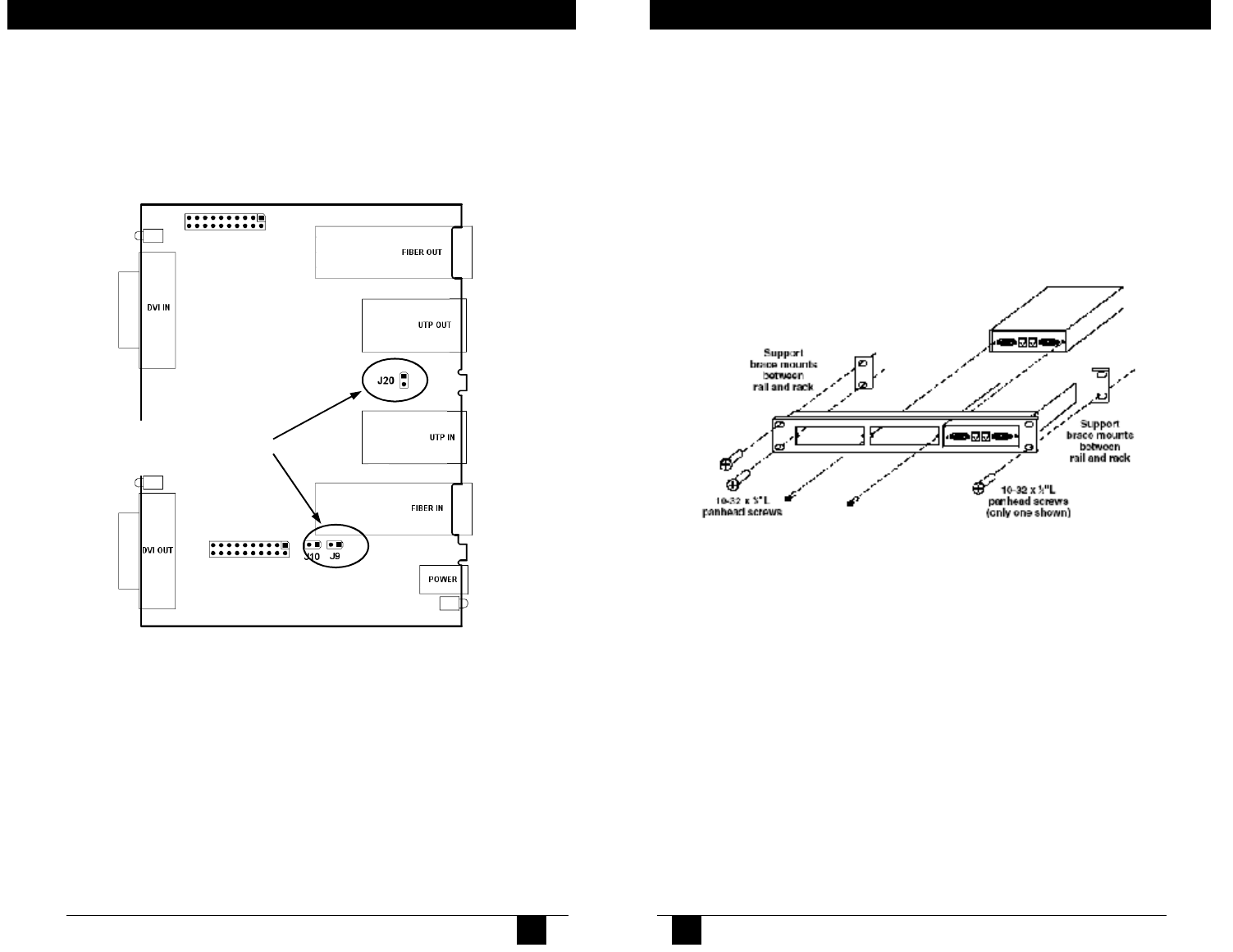

Figure D-1. Jumper locations to change DDC Mode.
DDC Mode Jumper
Locations J20 and J9
13
MULTI DVI SYSTEM.
7
Appendix E. Rackmounting Units
The Rackmount Kits include brackets for mounting a transmitter, receiver, or a dual
daisychainable receivers in a 19 rack. Figure F-1 shows the 2-Unit Rackmount
Bracket (AC1011), which holds three units in a 19" x 1U rack.
Not shown are brackets for 6 units . The 6-Unit Transmitter/Receiver Bracket
(AC1012) is like the AC1011 but occupies 2U of space instead of 1U in a 19" rack,
stacking 3 units atop 3 units.
Figure E-1. Mounting with the AC1011 kit.
