Controls: (1) pushbutton to reset keyboard(s);
(1) rotary switch for selecting the keyboard or video device
Leads Supported: DB15 HD connectors: 1 through 8 and 10 through 15
(Pin 9 is keyed);
6-pin mini-DIN connectors: All (6) leads
Enclosure: High-impact plastic
Connectors: 6-pin mini-DIN F for keyboard and DB15 HD F for monitor:
SW779A-R2: (2) input to (1) common of each;
SR911A-R2, SW911A: (5) input to (1) common of each;
SR913A, SW913A: (3) input to (1) common of each;
SR914A-R2, SW914A: (6) input to (1) common of each;
SR915A-R2, SW915A: (4) input to (1) common of each
Temperature Tolerance: -4 to +158°F (-20 to +70°C)
Humidity Tolerance: Up to 95%, noncondensing
Power: Nonpowered
Size: SR911A-R2, SR913A, SR914A-R2–SR915A-R2:
3.5"H (2U) x 19"W x 5.9"D (8.9 x 48.3 x 15 cm) with rackmount ears;
SW779A-R2, SW913A: 2.5"H x 6"W x 6.3"D (6.4 x 15.2 x 16 cm);
SW911A, SW914A–SW915A: 3.5"H (2U) x 17"W x 5.9"D (8.9 x 43.2 x 15 cm)
Weight: SR913A, SR914A-R2–SR915A-R2, SW779A-R2, SW913A :
1.5 lb. (0.7 kg);
SR911A-R2, SW911A, SW914A–SW915A: 8.4 lb. (3.8 kg)
Specifications
Ordering Information
ITEM CODE
PS/2 Style Keyboard Switches with VGA
Desktop
2-to-1* ............................................................SW779A-R2
* Includes (1) 10-ft. (3-m) 6-Pin-Mini DIN Cable (CL2),
Male/Male for connecting a PS/2 style keyboard and (1)
Premium VGA Video Extension Cable, Male/Male for
connecting a monitor.
3-to-1.....................................................................SW913A
4-to-1.....................................................................SW915A
5-to-1.....................................................................SW911A
6-to-1.....................................................................SW914A
Rackmount
3-to-1 ......................................................................SR913A
4-to-1 ................................................................SR915A-R2
5-to-1 ................................................................SR911A-R2
6-to-1 ................................................................SR914A-R2
Y
ou may also need cables (specify length and
genders)…
6-Pin Mini-DIN Cable (CL2).....................................EVMPS03
Premium VGA Video Extension Cable..................EVNPS05
PS/2 Keyboard Replacement Cable (CL2),
6-Pin Mini-DIN Male/SDL Male, Available in
Custom Lengths Only............................................EVNPS02

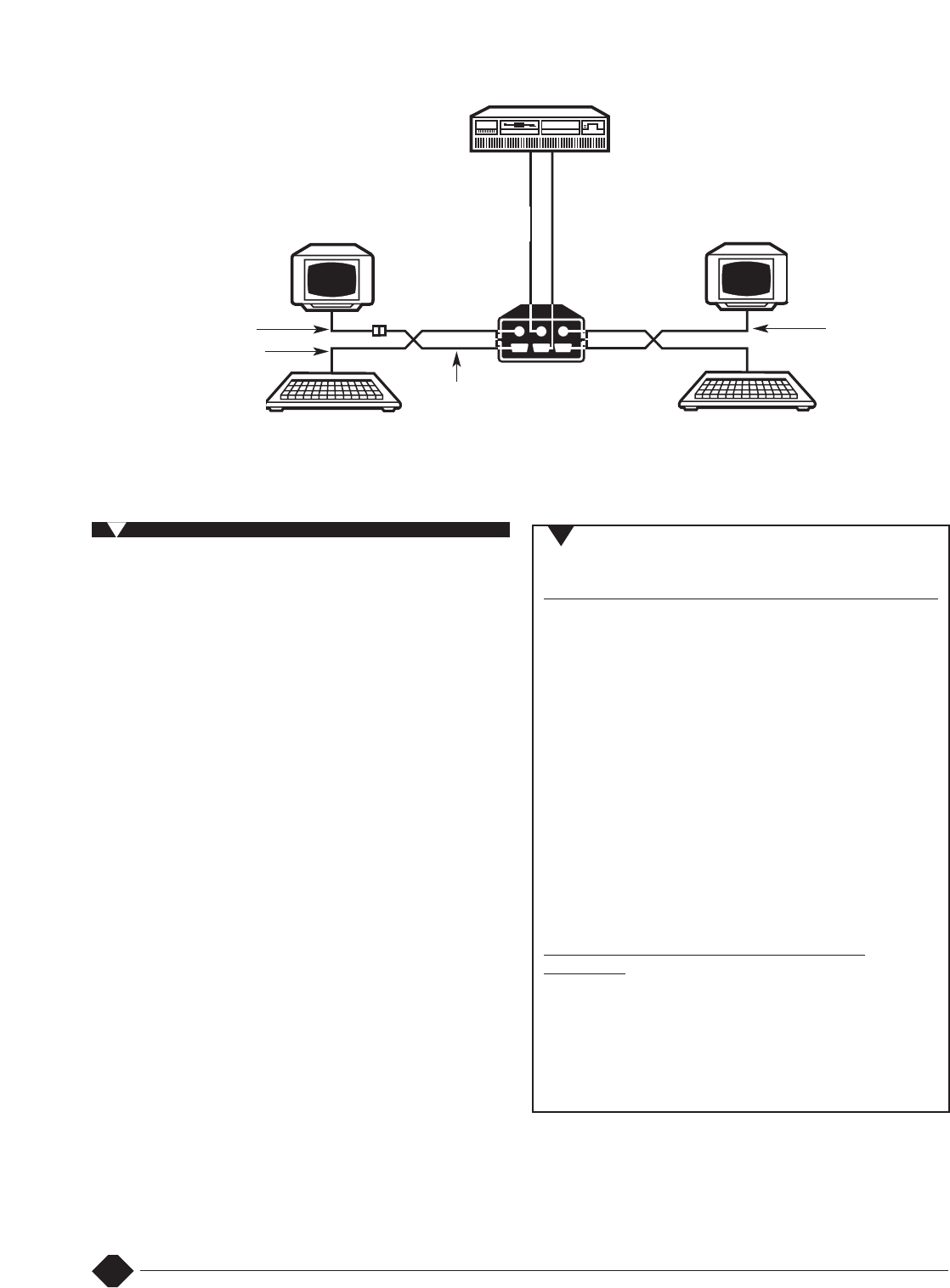

Two workstations sharing a single PS/2 compatible processor.
Shared PS/2 Compatible
Processor
System “B” (25-ft. [7.6-m] from Switch
Switched
VGA Monitor
Premium VGA Video
Extension Cable
(EVNPS05-0025-MF)
Monitor‘s
Cable
Monitor‘s
Cable
PS/2 Keyboard
Replacement
Cable
(EVNPS02)
Switched PS/2 Style
Keyboard
Switched PS/2 Style
Keyboard
Switched
VGA Monitor
System ”A” (6-ft. [1.8 m] from Switch
PS/2 Style
Keyboard Switch
with VGA, 2-to-1
(SW779A-R2)
Typical Application
6-Pin Mini-DIN Cable
(EVMPS03-0006-MM)
Premium VGA Video
Extension Cable
(EVNPS05-0005-MM)
