Chapter 4 Printer Adjustments
52

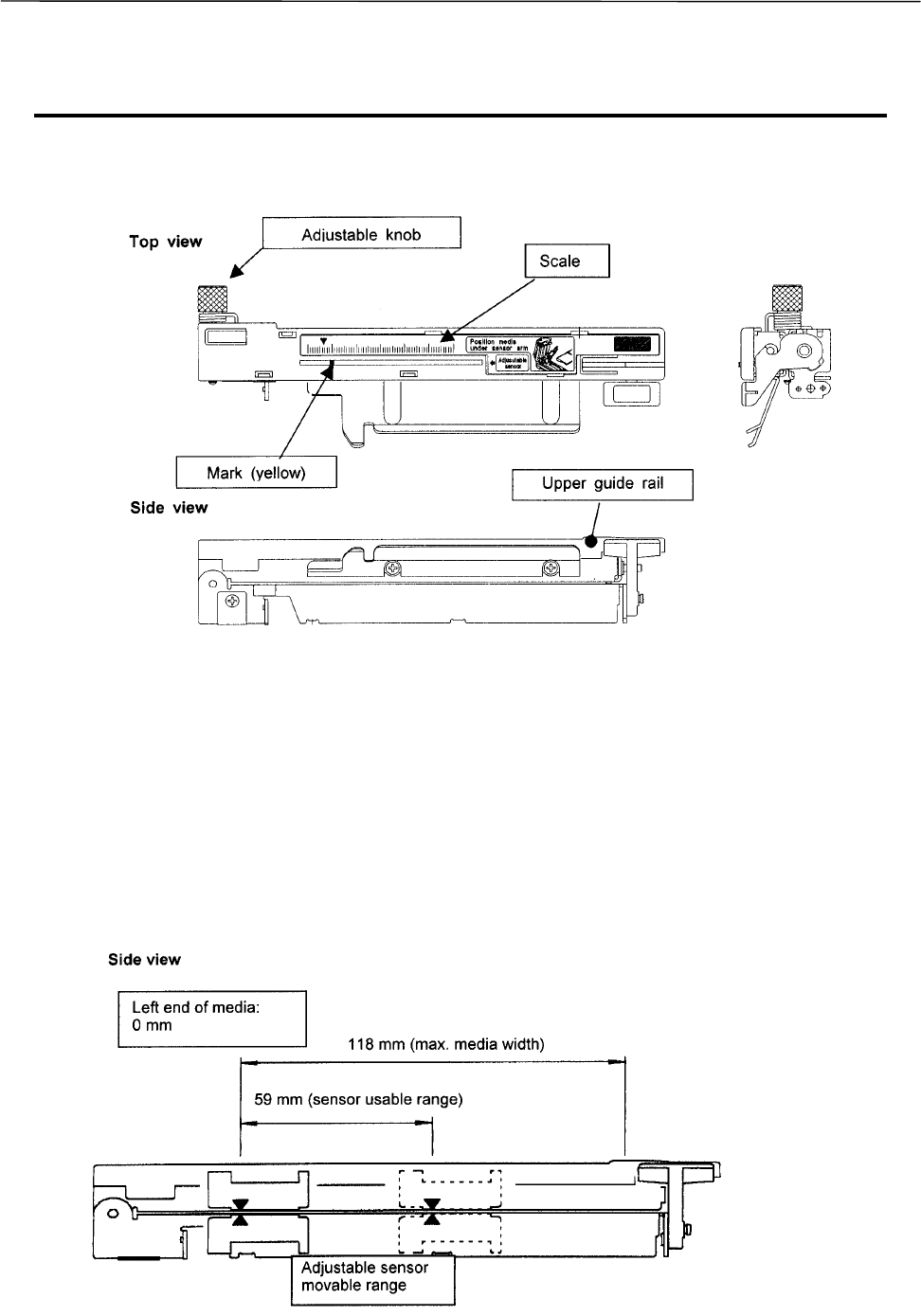

4 Adjustable Sensor (For CLP-7201e)
Note: The adjustable sensor is optional for CLP-7202e.
Operating procedure
1. Measure your required detection position beforehand, using the scale on the upper guide rail. Move
the adjustable sensor to the required detection position by tuning the adjustable knob; it is useful to
align the mark (yellow) on the top of the adjustable sensor with the scale showing the required
detection position.
For the movable range of the adjustable sensor, see figure below.
2. Set media with liner. Then close the upper guide rail and set the voltage to 3V.
Note: For voltage setting, see Section 5 System Maintenance Mode, Chapter 2.
4 Adjustable Sensor (For CLP-7201e)
