16D-Link DAP-1320 User Manual

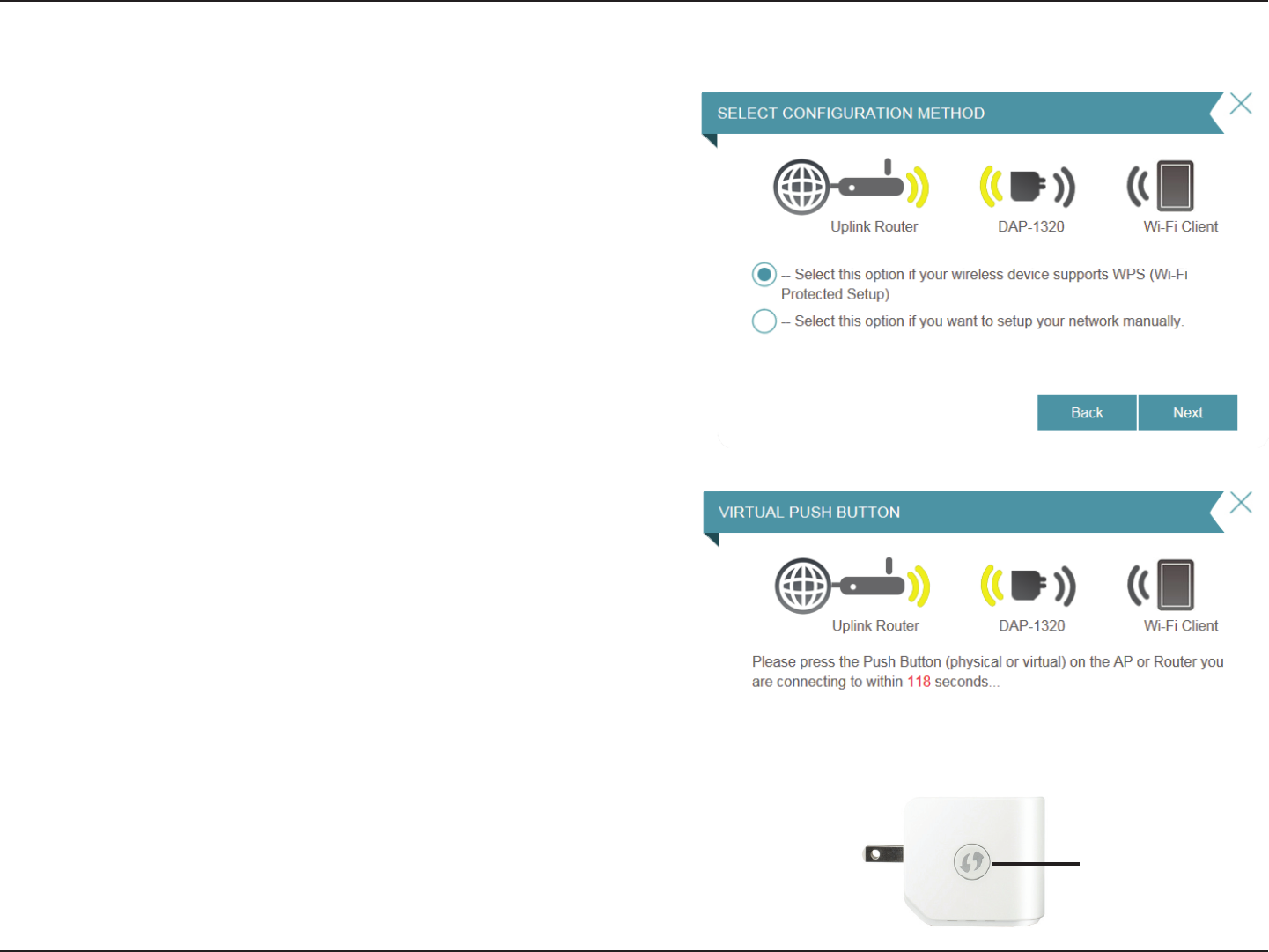

Section 3 - Web-based Conguration
To set up using the WPS method, select the rst option from the
setup wizard menu. Click Next to continue.
The DAP-1320 uses the push-button method for WPS. After
selecting WPS, the DAP-1320 will ask you to press the WPS push
button on the access point or router you want to connect the
DAP-1320 to. You have 120 seconds to press the button on your
access point or router. Click Next to continue.
If a connection has been successfully made, you will see a notice
on the screen and the LED on the device will turn solid green.
You can also use the WPS button on the side of the DAP-1320 to
initiate a WPS connection with the uplink router. After pressing
the WPS button on the DAP-1320, you will have 120 seconds to
press the WPS button on your access point or router. The LED on
the DAP-1320 will turn solid green when a connection has been
successfully established with the uplink router.
Using the WPS Method
WPS Button
