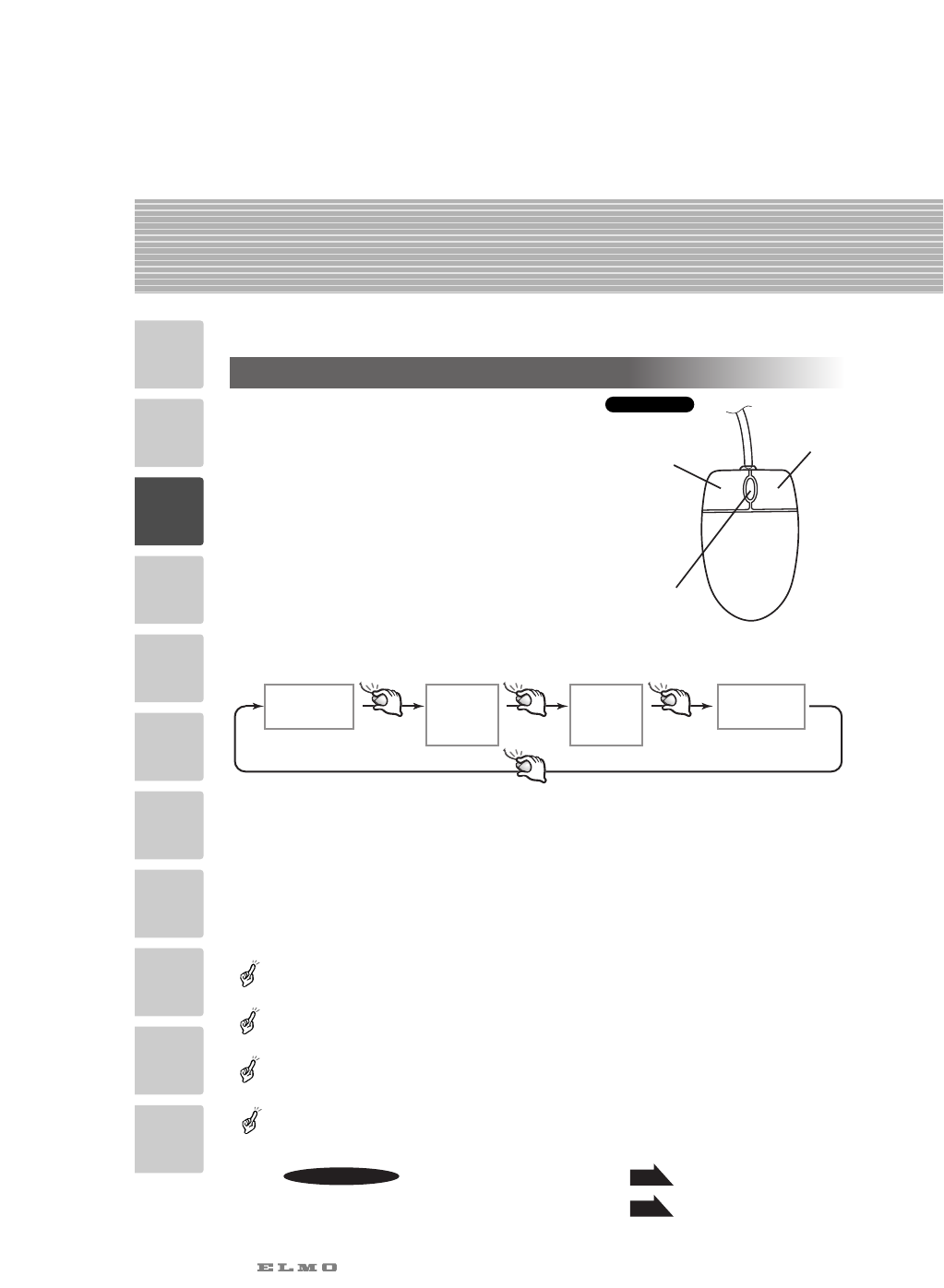

Mouse Operation
Connect the mouse to the mouse terminal [MOUSE]
on the connector panel.
• Click the left button
To operate the OSD menu.
When digital magnification or image rotation (90°,
270°) is not used, the pointer and OSD menu can
be displayed/deleted.
•
Drag by left button (moves while button is being pushed)
In time of digital magnification or image rotation
(90°,270°), screen is scrolled.
• Click the mouse wheel
To display or clear the pointer and OSD menu
alternately by clicking.
• Roll the mouse wheel
To scroll the screen up/down when the image is in digital magnification or rotated to 90°
or 270°.
• Click the right button
When this button is clicked for digital magnification while the pointer is displayed,
the position of the pointer is the center of the magnified image.
When the pointer is not displayed, the center position of the image is digitally magnified.
Click the OSD menu, then the menu functions are given priority.
When using the mouse, connect the mouse before turning ON the power supply to this product.
Use the attached mouse. If another mouse is used, the normal operation cannot be guaranteed.
If the cable is extended, use the commercial cable for extension or consult the distributor.
The OSD menu is assumed to be used for large projection sizes with a projector or the like.
Therefore, the display on a hand monitor or a TV may be hard to see.
• Digital Magnification .......
• OSD ...............................
P.27
P.18
Reference Page
3 MOUSE
The pointer
is displayed.
The pointer
is cleared.
The OSD
menu is
displayed.
The OSD
menu is
cleared.
Click Click
Click
Click
Right button
Left button
Center button
Mouse wheel
Mouse
