TOUCHCOMPUTER USER GUIDE 7
Securing the Base
There are two mounting options for the 15D1 touchcomputer. In both cases, the
base must be mounted on a horizontal surface.
• Option 1: Secure from below. Use the four pretapped holes to secure the
touchcomputer from below the mounting surface. The holes are designed to
work with ISO metric m6 screws. These screws are not contained in the
package, but should be readily available at any hardware store.
• Option 2: Secure from top. Use the two through holes to secure the base to
the surface.
NOTE: Mounting screws are not provided with the shipment.

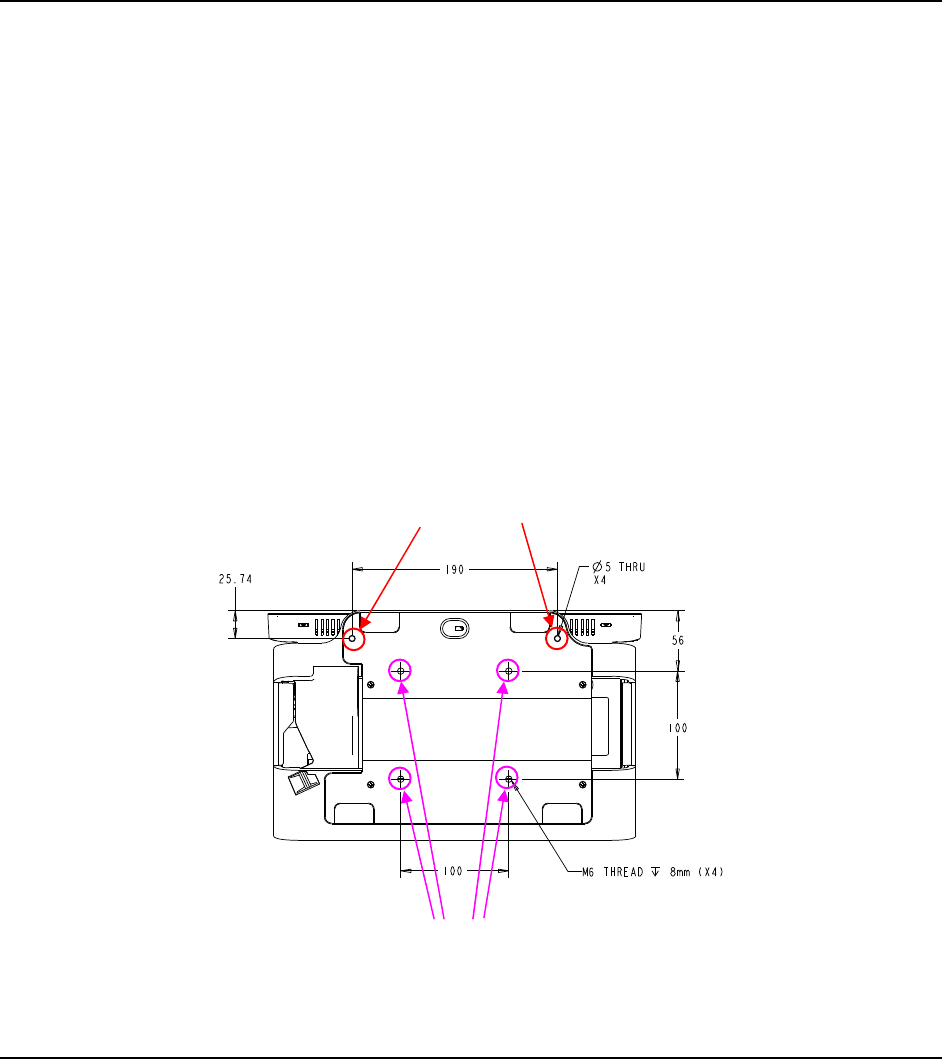

Refer to the figure below for the location of the holes. All dimensions are in
millimeters.
Advertising Brackets
Advertising brackets are provided to allow the user to display paper ads on the
back of the 15D1 touchcomputer. These brackets are included separately in the
accessory box. The maximum size of the advertising material is 220mm X 320mm
(8.6” X 12.6”).
Option 2 Through holes
Option 1 Pretapped holes
