Attaching the L-Brackets
Depending on your mounting scheme, use the L-brackets or the VESA 75/100mm standard holes locat-
ed on the back of the kiosk monitor or the 5.5 diameter holes (only on rear mount). See page 15 for
VESA mounting information.
NOTE: You will need a screwdriver to attach the L-brackets.
Your kiosk touchmonitor comes with a mounting bracket (C-bracket) attached at the back. Included are
two L-brackets (and four screws) that attach to both ends of the C-bracket for additional mounting
options.
To attach the L-brackets:
1 Lay the monitor face down.
2 Place the long end of the L-bracket against the end of the mounting C-bracket. Line up the

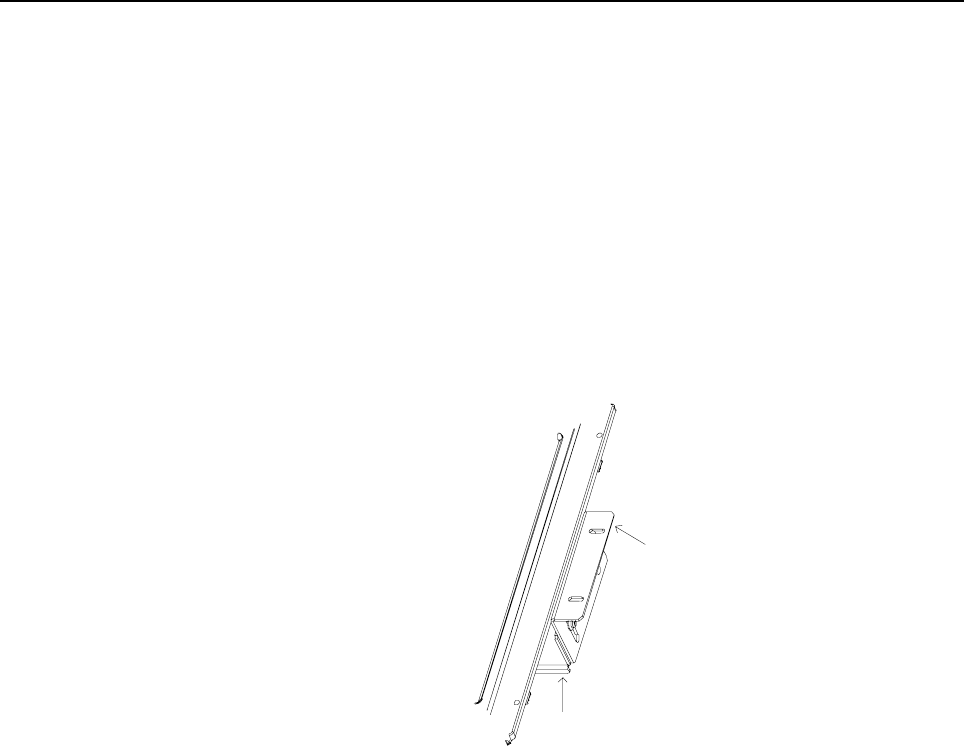

two holes of the L-bracket with the two holes of the C-bracket. See the illustration below.
3 Place two screws in the holes and with the screwdriver, screw them in to secure the bracket.
4 Repeat steps 2 and 3 to attach the other L-bracket to the other side of the mounting bracket.
C bracket
L bracket
