2-6 Elo Entuitive Touchmonitor User Guide
Touch Interface Connection
Your touchmonitor comes with one of the following touchscreen connector
cables: Serial (RS-232) cable or USB cable. (For Windows 98, 2000, Me and
XP systems only.)
To set up this display, please refer to the following figures and procedures:
Serial or USB Connection

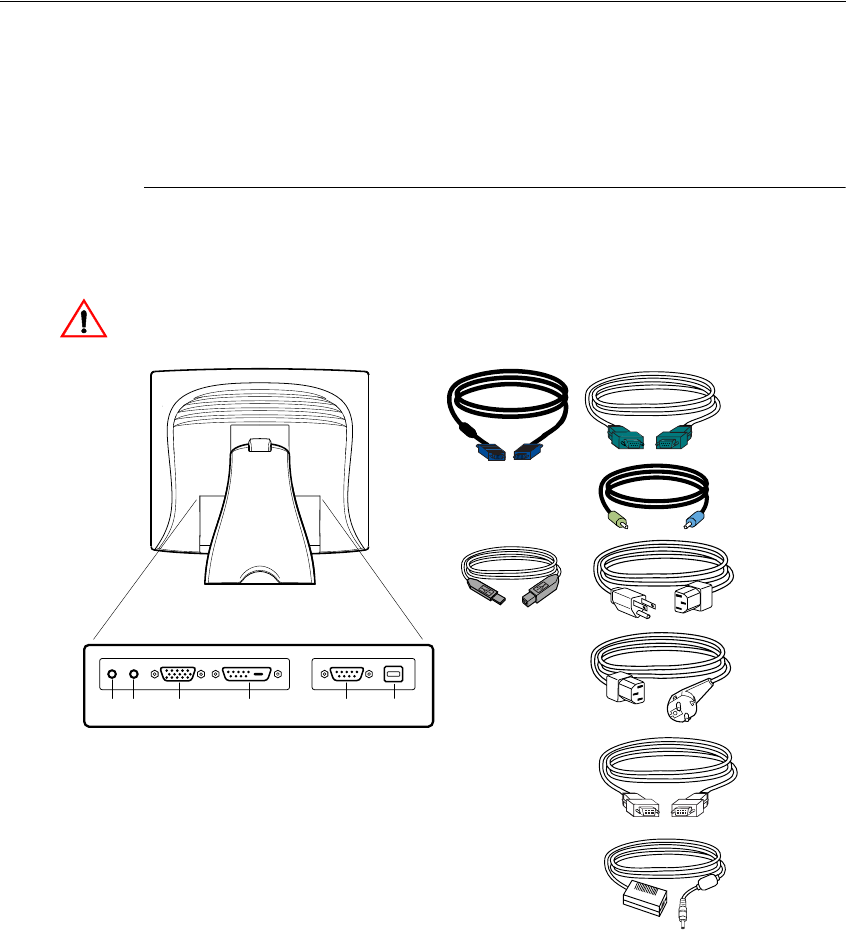

The following illustrations guide you step by step in connecting your
touchmonitor using a serial or USB cable connection
CAUTION
Before connecting the cables to your touchmonitor and PC, be sure that the computer
and the tou
chmonitor are turned off.
Adapter
DVI-D video cable
European monitor
(US/Canada)
Monitor
power cable
power cable
Serial touchscreen
cable
Speaker cable
Video cable
USB Cable
POWER SPEAKER
PORT
FEMALE DVI-D
VIDEO CONNECTOR
FEMALE 15-PIN
VIDEO CONNECTOR
FEMALE 9-PIN SERIAL
TOUCHSCREEN CONNECTOR
USB CONNECTOR
CONNECTIONS ON UNDERSIDE
