Product Data Document
420DS-0d
July 16, 2007 - Page 2
Bristol
®
ControlWave
®
Micro Enclosures
Remote Automation Solutions
Website: www.EmersonProcess.com/Remote

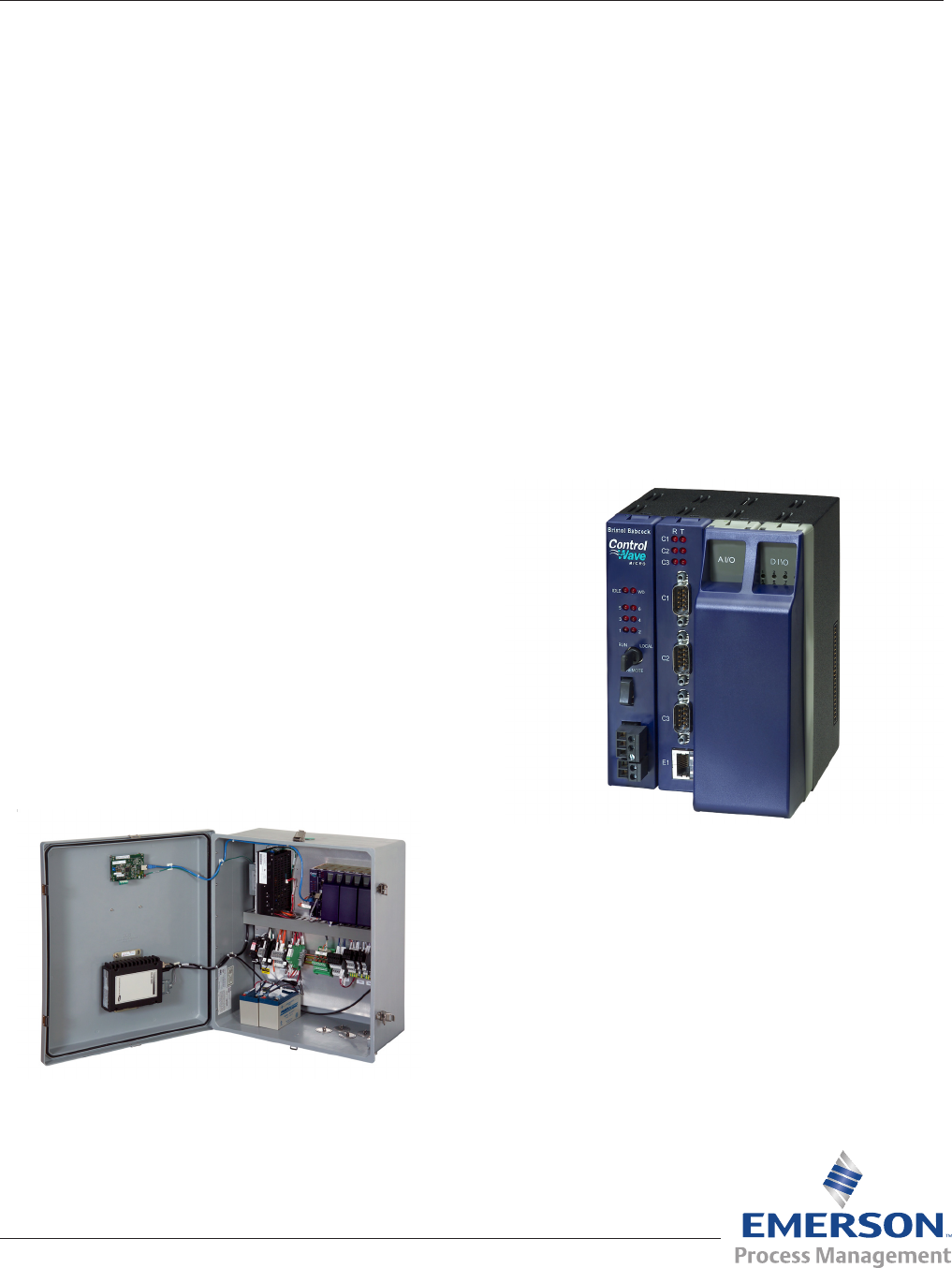

The ControlWave Micro enclosure assembly is a
fully integrated unit that combines the PLC/RTU
with a variety of options commonly required in
SCADA applications. These include a NEMA 4X
rated enclosure, power supply and battery backup
options, termination options, display and operator
input options, and wireless communication options.
The enclosures also include several convenience
and environmental suitability capabilities.
Features
4 package sizes for I/O and option exibility
Selection of NEMA 4 steel and NEMA
4X berglass or stainless steel to meet
environmental requirements. (NEMA 3X with
battery vent)
12 V and 24 V power supplies with battery
backup options and input AC surge protection
DIN rail mounted power distribution
DIN rail mounted I/O terminal block options for
convenient eld wiring
Optional convenience outlet, lamp and heater
Multiple display and operator interface options
may me mounted internally or externally
Wide selection of xed frequency and spread
spectrum radios with polyphaser for electrical
protection
Built-in dial-line modem option for primary or
backup communications
Convenient Pressure Recorder conguration
•
•
•
•
•
•
•
•
•
•
Custom Control Panel Design
and Fabrication
We recognize that there are times when one size
does not t all. The ControlWave Micro integrated
enclosures allow some customization and still
provide the benets of standardization. However,
when your enclosure or cabinet truly needs expert
customization, our panel shop is prepared to meet
your requirements. Whatever the size or shape, our
Panel Fabrication Group designs and fabricates
control panels based on your specic application.
From a simple RTU eld enclosure to a complete
control room with large control console and monitor-
ing stations. We design panels for controlled and
harsh environments that include all NEMA rated
enclosures and systems suitable for virtually all
worldwide climates and conditions. Our panel shop
is UL 508 certied and adheres to the latest codes
and standards for assembly, testing, and quality
control.
ControlWave Micro
ControlWave Micro is the most compact of the
ControlWave family of high performance PLC/RTU
hybrids. The controller is designed to exceed the
stringent requirements for industrial control applica-
tions. With its very low power consumption of only
1.2W, and boasting a broad environmental speci-
cation, ControlWave Micro can be installed in the
most remote and inhospitable locations for control
and SCADA applications year in year out.
