EN9110
7
CABLE
CONNECTIONS
1 – Connect the DC-jack power cable into DC-IN connector on the back of the
monitor.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and
connect the other end to the computer’s D-Sub port.
3. (Optional – Requires a video card with DVI port) Connect one end of the
24-pin DVI cable to the back of the monitor and connect the other end to the
computer’s DVI port. be tightened.
4 – Connect the female end of the power cord to the monitor’s power adapter
and connect the male end of the power cord to the AC outlet.
Caution: If the AC outlet is not grounded (with three holes), install the proper
grounding adapter (not supplied).

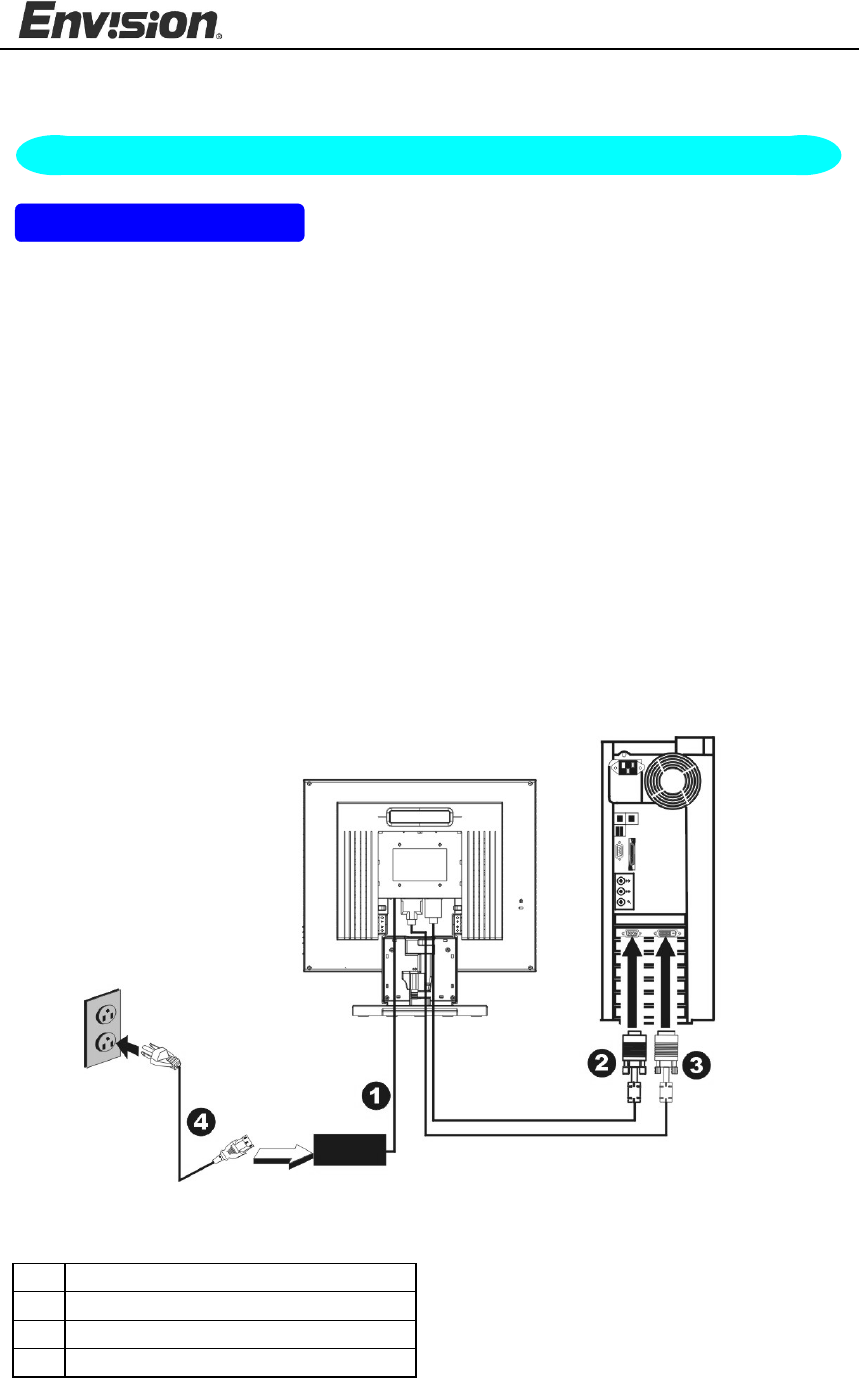

Figure 2 Connecting Cables
1. External Adapter
2. 15-pin D-Sub Cable
3. DVI Cable
4. Power Cord
INSTALLATIONS INSTRUCTIONS (cont)
