NOTE: Refer to accompanying instructions for ELPMBP01, ELPMBP02, ELPMBP03 or CMJ and ACC Series Ceiling
Mounts (sold separately) for installing these models to ceiling.

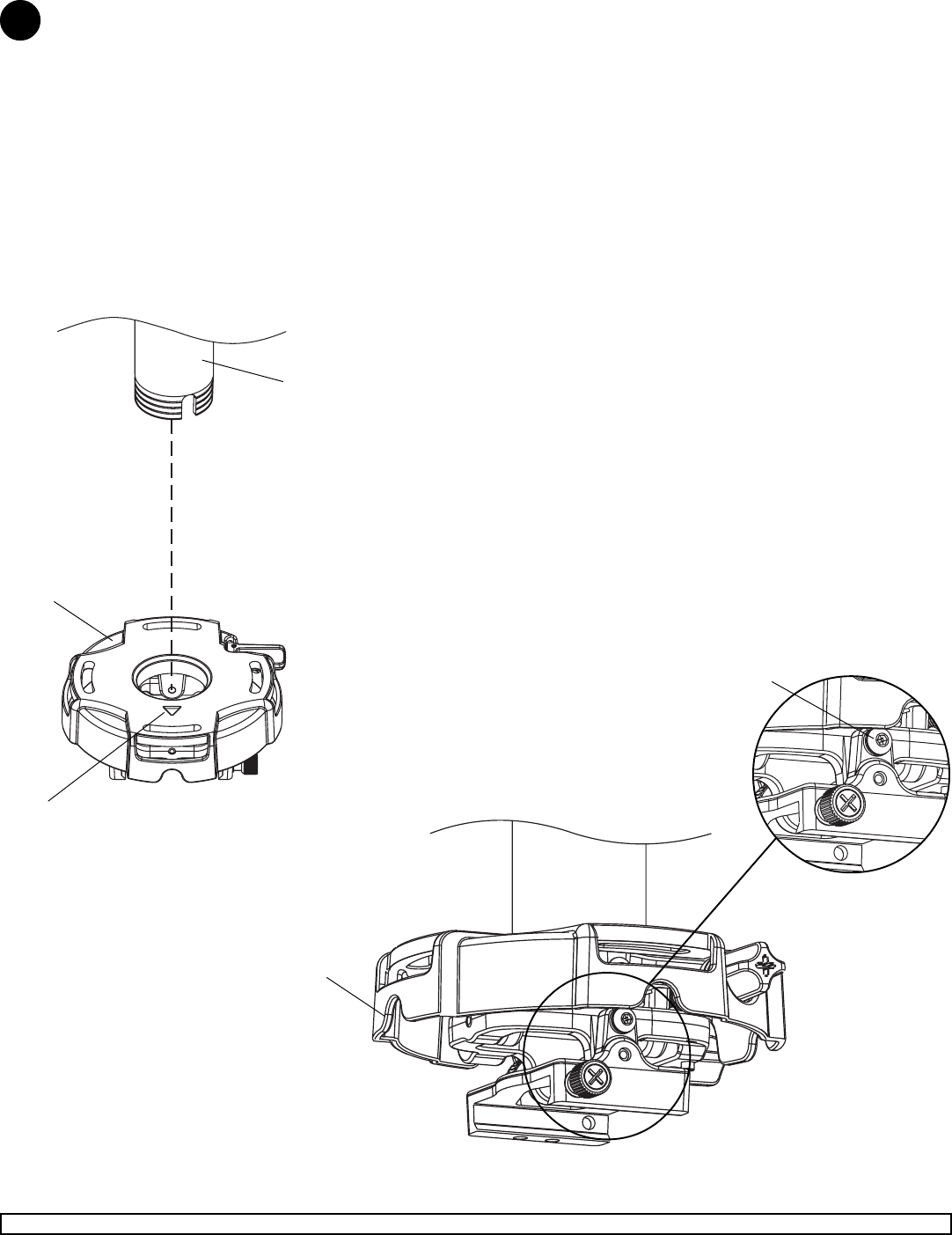

Screw projector mount assembly (A) onto extension column as shown in figure 1.1.
NOTE: Swivel stop screw is used to jam against threads of extension column or flush mount tube to prevent any
excess movement of projector mount assembly (A) as shown in detail 1. Do not overtighten screw; overtightening
screw will damage threads making it difficult to separate products.
Skip to step 2.
1
Installation to Extension Column
SWIVEL STOP
SCREW
A
fig. 1.2
DETAIL 1
A
ARROW
INDICATES
FRONT OF
MOUNT
fig. 1.1
A
EXTENSION COLUMN
(UL Listed ELPMBC01 or UL Listed
EXT and ADJ Series)
(Sold Separately)
Not Shown: UL Listed ELPMBP01, ELPMBP02, ELPMBP03 or UL
Listed CMJ and ACC Series Ceiling Mounts (Sold Separately).
