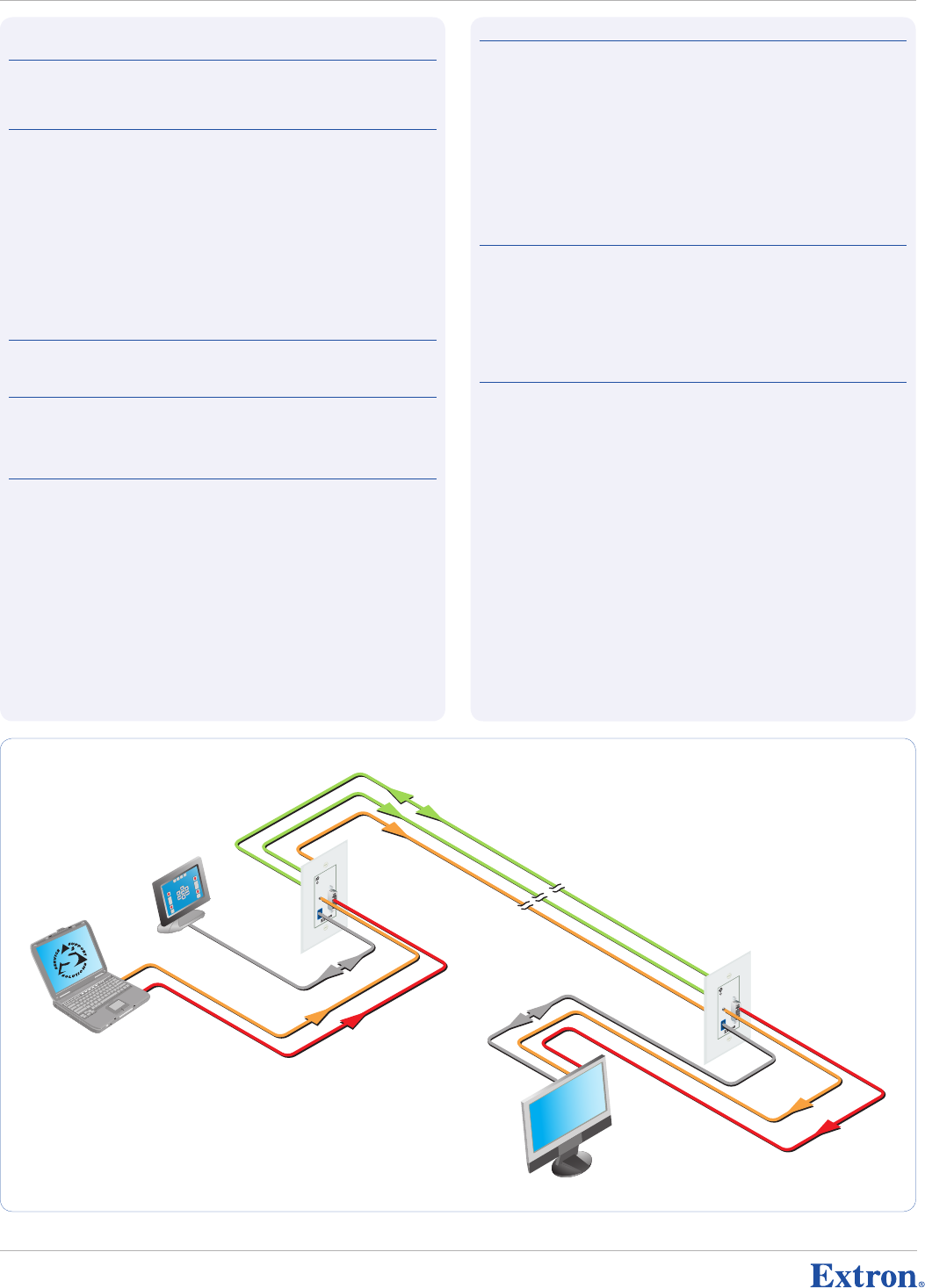

Laptop with DVI Out
Flat Panel Display
w/ Speakers
Extron
DVI 201 A D Tx
Transmitter
Extron
DVI 201 A D Rx
Receiver
DVI Cable
DVI Cable
Audio
Audio
CAT 5/5e/6/7 Cables
up to 200' / 60m
RS-232
RS-232
RS-232
Control
Optional Cable
for Additional
Audio Signal
D
V
I
AU
D
I
O
L
+
R
O
U
T
P
U
T
T
x
R
x
R
S
-
2
32
P
A
S
S
T
HR
U
D
V
I
AU
D
I
O
L
+
R
IN
P
U
T
T
x
R
x
R
S
-
23
2
P
A
S
S
T
HR
U
www.extron.com
© 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.
USA West
+1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX
USA East
+1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX
China
+86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX
Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Europe
+31.33.453.4040 / +800.3987.6673
+31.33.453.4050 FAX
Dubai
+971.4.2991800
+971.4.2991880 FAX
Asia
+65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX
www.extron.com
© 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.
USA West
+1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX
USA East
+1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX
China
+86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX
Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Europe
+31.33.453.4040 / +800.3987.6673
+31.33.453.4050 FAX
Dubai
+971.4.2991800
+971.4.2991880 FAX
Asia
+65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX
AuDIo outPut
Number/signal type
DVI 201 A D Tx ....................
1 stereo, balanced/unbalanced
DVI 201 A D Rx ....................
1 stereo, unbalanced
Connectors
DVI 201 A D Tx ....................
(1) 3.5 mm captive screw connector, 5 pole
DVI 201 A D Rx ....................
(1) 3.5 mm mini audio jack (tip, ring, sleeve)
Impedance
DVI 201 A D Tx ....................
50 ohms unbalanced, 100 ohms balanced
DVI 201 A D Rx ....................
50 ohms unbalanced
Maximum level (Hi-Z)
DVI 201 A D Tx .................... >+16 dBu, balanced or unbalanced at 1% THD+N
DVI 201 A D Rx .................... >+9.8 dBu, unbalanced at 1% THD+N
Maximum level (600 ohm)
DVI 201 A D Tx .................... >+9 dBm, balanced or unbalanced at 1% THD+N
DVI 201 A D Rx .................... >+6.8 dBm, unbalanced at 1% THD+N
Control/rEMotE — ExtErnAl DEVICE (PAss-tHrouGH)
Serial control port input
Transmitter......................... RS-232 via (1) 3.5 mm, 3 pole captive screw connector
Receiver ............................ 1 set of proprietary signals on a female RJ-45 jack
Serial control port output
Transmitter......................... 1 set of proprietary signals on a female RJ-45 jack
Receiver ............................ RS-232 via a 3.5 mm, 3 pole captive screw connector
NOTE: Protocol is mirrored between the transmitter and the receiver.
Serial control pin
configurations ................... Captive screw connectors: 1 = TX, 2 = RX, 3 = GND
GEnErAl
External power supply ......... 100 VAC to 240 VAC, 50/60 Hz, 6 W max., external; to 12 VDC, 1 A, regulated
Power input requirements ..... 12 VDC, 0.4 A for both transmitter and receiver
NOTE: Each transmitter or receiver can be powered either locally by an external power supply or remotely by receiver or
transmitter on the other end of the CAT 5/5e/6 or STP (shielded twisted pair) cable.
Temperature/humidity .......... Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling ............................ Convection, unvented
Enclosure type ................... Metal
Enclosure dimensions
DVI 201 A D Tx/Rx
Faceplate .......................... 2.6” H* x 1.3” W x 0.1” D (6.6 cm H* x 3.3 cm W x 0.3 cm D)
(Fits the opening in a 1 gang Decora faceplate. *Height is 3.8” [9.7 cm]
including mounting tabs.)
Buffer............................... 2.7” H x 1.8” W x 0.75” D*
(6.9 cm H x 4.6 cm W x 1.9 cm D*)
(*Depth excludes connectors.)
Product weight .................. 0.5 lbs (0.3 kg)
Shipping weight ................. 3 lbs (2 kg)
Vibration .......................... ISTA 1A in carton (International Safe Transit Association)
Listings ............................ UL, CUL
Compliances ..................... CE, FCC Class A**, VCCI, AS/NZS, ICES
MTBF .............................. 30,000 hours
Warranty .......................... 3 years parts and labor
NOTE: *An optional HDMI to DVI adapter is required if an HDMI signal is used. Also, an optional Extron HDMI-to-DVI adapter
is required in order to transmit a CEC signal. **FCC testing is conducted with STP (shielded twisted pair) cable. All nominal
levels are at ±10%. Specifications are subject to change without notice.
sPECIfICAtIons
VIDEo InPut AnD looP-tHrouGH — trAnsMIttEr
Number/signal type ............. 1 DVI-D/HDMI* input, 1920x1200 @ 60 Hz max. resolution
1 DVI-D/HDMI* local loop-through
Connectors
DVI 201 A D Tx/Rx ................
2 DVI-I female
IntErConnECtIon bEtwEEn trAnsMIttEr AnD rECEIVEr
Connectors ....................... (2) RJ-45 per unit for 2 CAT 5/5e/6 or STP (shielded twisted pair) cables
connecting the transmitter and receiver
Termination standards ......... TIA/EIA T 568A or T 568B. Pin configurations for each standard are available in
the manual’s installation chapter.
Bit rate ............................ 5 gigabits/second total (1.65 gigabits/second/color)
Signal transmission distance
1920x1200 @ 60 Hz (the highest resolution of the single link DVI standard)
STP (shielded twisted
pair cable) .....................
125’ (38 m)
CAT 5/5e/6 cable .............
100’ (30 m)
HDTV (1080i or 720p) or 1024x768 @ 60 Hz
CAT 5/5e/6 or STP (shielded twisted pair)
cable ........................... 200’ (60 m)
NOTE: The transmission distance varies greatly depending on the signal resolution and on the type of cable, graphic card,
and display used in the system.
VIDEo outPut — rECEIVEr
Number/signal type ............. 1 DVI-D/HDMI*, 1920x1200 @ 60 Hz max. resolution
Connectors
DVI 201 A D Tx/Rx ................
2 DVI-I female
AuDIo
Gain ................................ Unbalanced output: 0 dB; balanced output: +6 dB
Frequency response ............ 20 Hz to 20 kHz, ±0.05 dB
THD + Noise ..................... 0.10% @ 1 kHz at nominal level
S/N ................................ >85 dB at maximum output (unweighted)
Stereo channel separation .... >86 dB @ 1 kHz
AuDIo InPut
Number/signal type
DVI 201 A D Tx ....................
1 stereo, unbalanced
DVI 201 A D Rx ....................
1 stereo, balanced/unbalanced
Connectors
DVI 201 A D Tx ....................
(1) 3.5 mm mini audio jack (tip, ring, sleeve)
DVI 201 A D Rx ....................
(1) 3.5 mm captive screw connector, 5 pole
Impedance
DVI 201 A D Tx ....................
>10k ohms unbalanced, DC coupled
DVI 201 A D Rx ....................
>18k ohms unbalanced, 14k ohms balanced, DC coupled
Nominal level
DVI 201 A D Tx ....................
-10 dBV (316 mVrms)
DVI 201 A D Rx ....................
+4 dBu (1.23 Vrms)
Maximum level
DVI 201 A D Tx .................... +11 dBu, unbalanced at 1% THD+N
DVI 201 A D Rx .................... +16.8 dBu, unbalanced at 1% THD+N
NOTE: 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
