Reference Information, cont’d
A-6
Top Plate Dimensions
The cut-out template (figure A-2) is not to scale and is for
reference only. If you choose not to use Extron’s routing
template (chapter 2, Installation), the dimensions shown on the
table on page A-7 will help you properly prepare the mounting
surface. The surface cut-out area dimensions for the template
are C and D.
Template for cut-out
Lifting panel
Top panel
CUT-OUT TEMPLATE FOR
EXTRON'S HSA 800 & 802
DF B
C
E
A
G
H
SURFACE CUT-OUT AREA = C x D

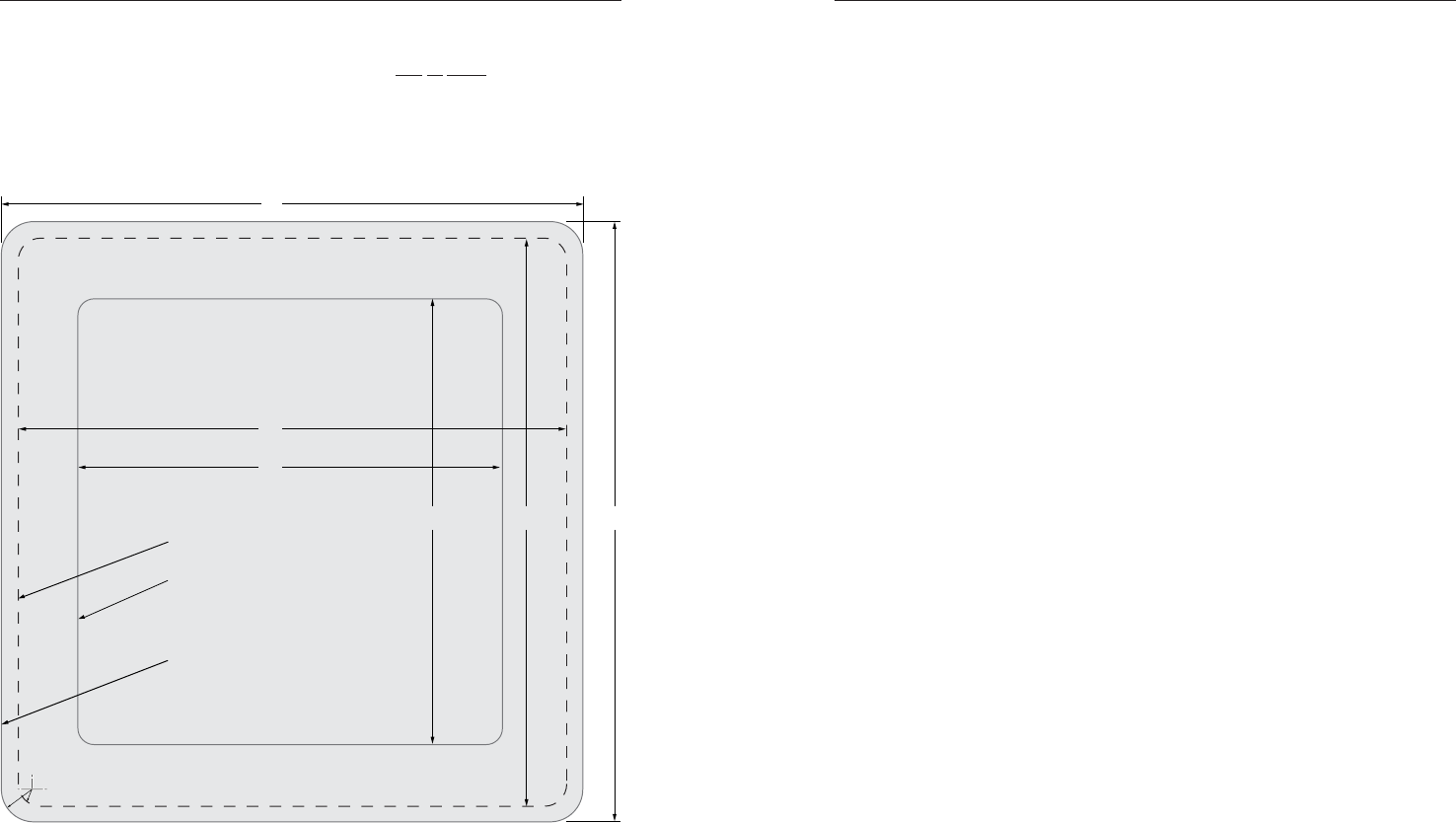

Figure A-2 — HSA 800/802 cut-out template
For a full size paper template, visit the Extron Web site
(http://www.extron.com) or call the Extron S
3
Sales & Technical
Support Hotline.
HSA 800/802
A 8.47” (21.5 cm)
B 8.75” (22.2 cm)
C 7.97” (20.2 cm)
D 8.25” (21.0 cm)
E 6.2” (15.7 cm)
F 6.4” (16.3 cm)
G 0.5” (1.3 cm)
H 0.25” (0.6 cm)
A-7
