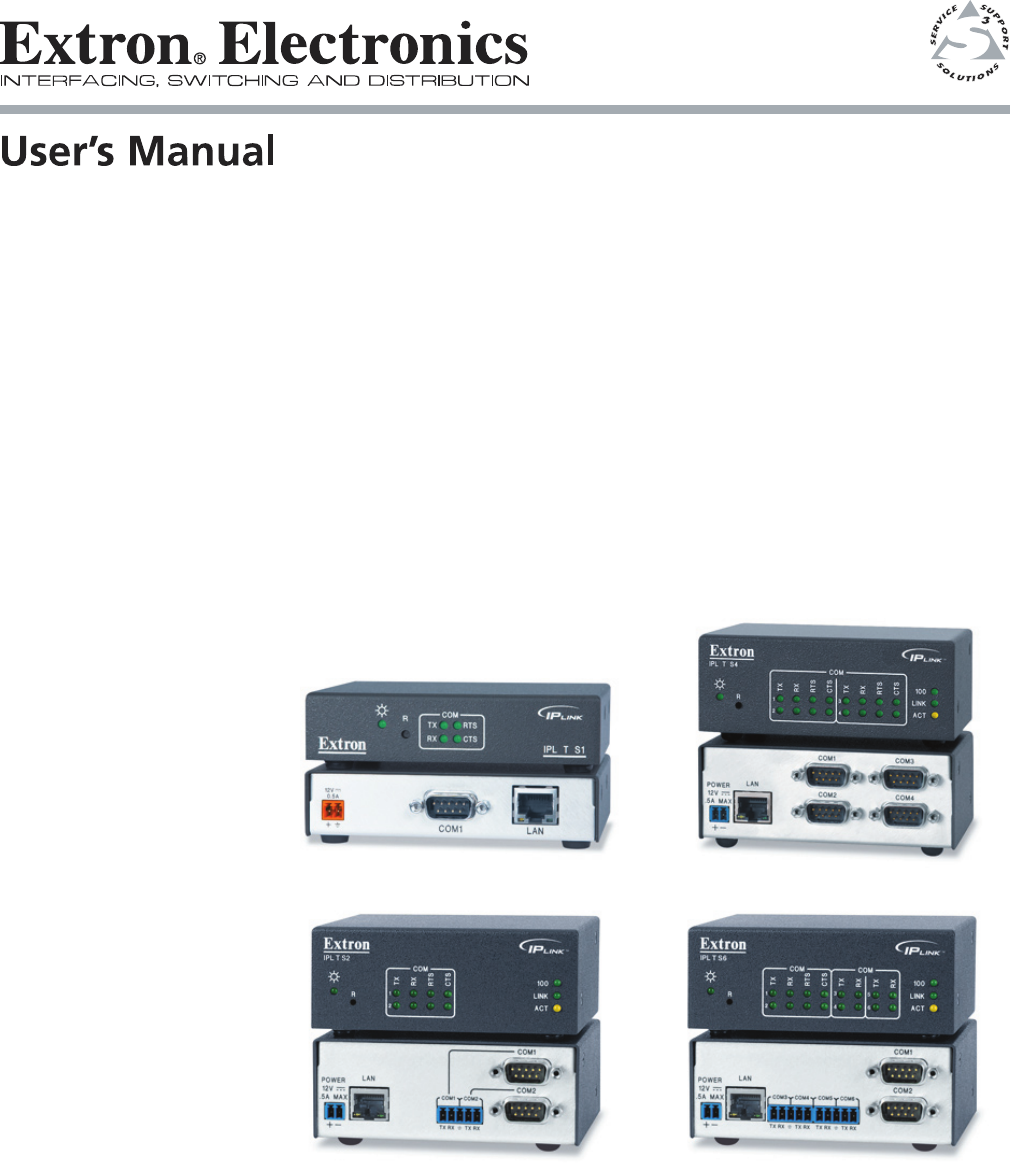

Extron electronic IPL T S Series Network Card User Manual


  Open as PDF
of 3

www.extron.com
© 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.
USA West
+1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX
USA East
+1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX
China
+86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX
Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Europe
+31.33.453.4040 / +800.3987.6673
+31.33.453.4050 FAX
Dubai
+971.4.2991800
+971.4.2991880 FAX
Asia
+65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX
www.extron.com
© 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.
USA West
+1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX
USA East
+1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX
China
+86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX
Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Europe
+31.33.453.4040 / +800.3987.6673
+31.33.453.4050 FAX
Dubai
+971.4.2991800
+971.4.2991880 FAX
Asia
+65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX
Continued
common fEAturEs
• Allows Web-based remote monitoring and remote control of A/V devices from any
computer connected to a LAN, WAN, or the Internet
• E-mail notification enables proactive support
— Technical support administrators
and others can receive failure and service messages through an e-mail enabled cell
phone, PDA, pager, or Internet e-mail account.
•
Integral high performance Web server — Each IP Link interface features a built-in
Web server with memory available for storing device drivers, GlobalViewer, and custom
user Web pages.
•
7.25 MB of available flash memory
• Support for bidirectional RS-232, RS-422, and RS-485 serial communication
— For remotely and proactively monitoring and troubleshooting projectors, plasma
displays, switchers, and other serially controlled devices. Note: The IPL T S1 supports
RS-232 only.
•
Serial port pass-through — Two-, four-, and six-port models can be configured for
pass-through mode, enabling each pair of ports on the interfaces to pass through
commands and control a single device.
•
Supports industry standard Ethernet protocols — All IP Link models use industry
standard Ethernet communication protocols, including ARP, DHCP, ICMP, UDP/IP, TCP/IP,
Telnet, HTTP, and SMTP.
•
Simultaneous multi-user support — Each IP Link device supports multiple concurrent
users, improving system throughput.
•
Multiple levels of access with password protection — User access level authorizes
limited entry to only pre-designated functions, while administrator access level permits
full access to advanced settings.
•
Free Global Configurator, easy-to-use configuration utility — Global Configurator
software, a free Windows
®
-based configuration utility, makes product setup simple and
intuitive – no programming knowledge is required.
•
Free GlobalViewer
®
, Web-based asset management application — When used with
GlobalViewer, IP Link interfaces provide a powerful, flexible way to manage, monitor, and
control both Extron and third-party equipment like projectors, plasmas, monitors, VCRs,
DVD players, and other devices using a standard TCP/IP network.
•
Extensive library of device drivers — Device drivers allow Extron products to control
various display and source devices, such as projectors, flat-panel displays, and DVD
players. Extron has produced thousands of fully tested and uniformly modeled RS-232
and IR device drivers.
•
Internal real-time clock — Programmable operating alerts, sequencing, and automatic
monitoring, together with the real-time clock and calendar, allow IP Link interfaces to
routinely check configured devices.
•
Plenum rated - meets UL 2043 for heat and smoke release, excluding power supply
• External universal power supply included
, part # 70-055-01 — Provides worldwide
power compatibility.
dEscrIPtIon
The Extron IPL T S Series of compact Ethernet control interfaces feature an integral high
performance Web server and are designed to integrate IP - Internet Protocol connectivity into
A/V systems, giving users the ability to remotely and proactively monitor and troubleshoot
projectors, flat-panel displays, switchers, and other serially controlled products.
The IPL T S Series uses Extron's exclusive IP Link
®
technology, a high performance intelligent
network integration solution specifically engineered to meet the needs of professional
A/V environments, from large universities and businesses to small home installations. Multiple
Ethernet-enabled A/V products can be managed and supported using a networked computer
running Internet Explorer 6.0 or later.
E-mail Capabilities for Proactive Service
With e-mail notification, technical support administrators can receive failure and service
messages through an e-mail enabled cell phone, PDA, pager, or Internet e-mail account. For
secure installations that do not allow Internet access, online monitoring can still be performed
proactively. Within an existing secure infrastructure, e-mail notification of failures and repairs is
possible without compromising the security of the A/V systems and facility.
GlobalViewer
™
Web-based Asset Management Application
Extron GlobalViewer is the free, Web-based, asset management and control application designed
specifically for IP Link Ethernet network interfaces. GlobalViewer enables asset management
functions that include proactive maintenance event scheduling, remote technical support, and
theft alerts.
IPL T S Models
Model Port Type RS-232 RS-422 RS-485
9-pin D Sub Captive Screw
IPL T S1
1
●
IPL T S2
2* 2
● ● ●
IPL T S4
4
● ● ●
IPL T S6
2 4**
● ● ●
* The IPL T S2 includes two captive screw ports that are connected in parallel with the 9-pin ports.
** The captive screw ports on the IPL T S6 are only compatible with RS-232 serial communication.
IPL T S Series
One, Two, Four, and Six Serial Port IP Link
®
Ethernet Control Interfaces
