RGB 460xi Series • Installation and Operation
2-5
i
Composite video connector (RGB 464xi) — This female
RCA-to-BNC type connector provides pass-through capability
for composite video input.
j
S-video pass-through connector (RGB 464xi) — Connect an
S-video source to this 4-pin mini DIN pass-through connector.
kl
RCA audio connectors (RGB 464xi) — Connect the left audio
signal cable to the white RCA connector
(
k
L/Mono), and the right audio signal
cable to the red RCA connector (
l
R) for
unbalanced stereo audio pass-through
input. Wire the RCA plugs as shown on
the right.
N When a mono audio signal is applied to the L/Mono
input, the same signal is output to both left and right
audio outputs.
m
Network connector (RGB 464xi) — Connect a computer to this
RJ-45 female connector for pass-through to a network.
n

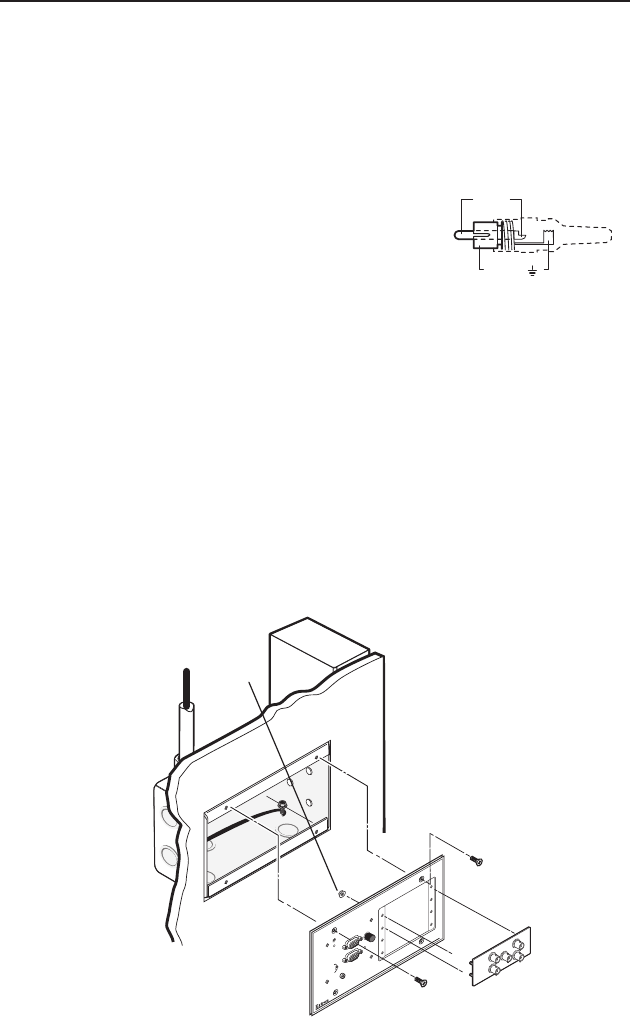

Opening for architectural adapter plates — The RGB 468xi
accepts up to four optional standard architectural adapter plates
(AAPs) attached here (up to three on the RGB 468xi AKM UK).
The RGB 468 Mxi (not pictured) can accept up to four optional
mini architectural adapter plates (MAAPs) attached here. The
adapter plates come in a variety of audio/video connector
congurations.
#4-40 Nut w/ Captive
Washer
4-gang Wall Box
H. SHIFT
MIN/MAX
TM
RGB 468xi
INPUT
MONITOR
AUDIO
RGB 468
WITH ADSP
MONITOR
NO MONITOR
The RGB 468 Mxi (not
shown) mounts from
the front using hex screws.
The RGB 468xi (shown)
mounts from the
rear using nuts.
0
Tip (+)
Sleeve ( )
Sleeve ( )
Ring (
-
)
Tip (+)
Audio Plugs.eps
RCA Connector
3.5 mm Stereo Plug Connector
(balanced)
Sleeve ( )
Ring (R)
Tip (L)
3.5 mm Stereo Plug Connector
(unbalanced)
